Precaution General Notes: Components

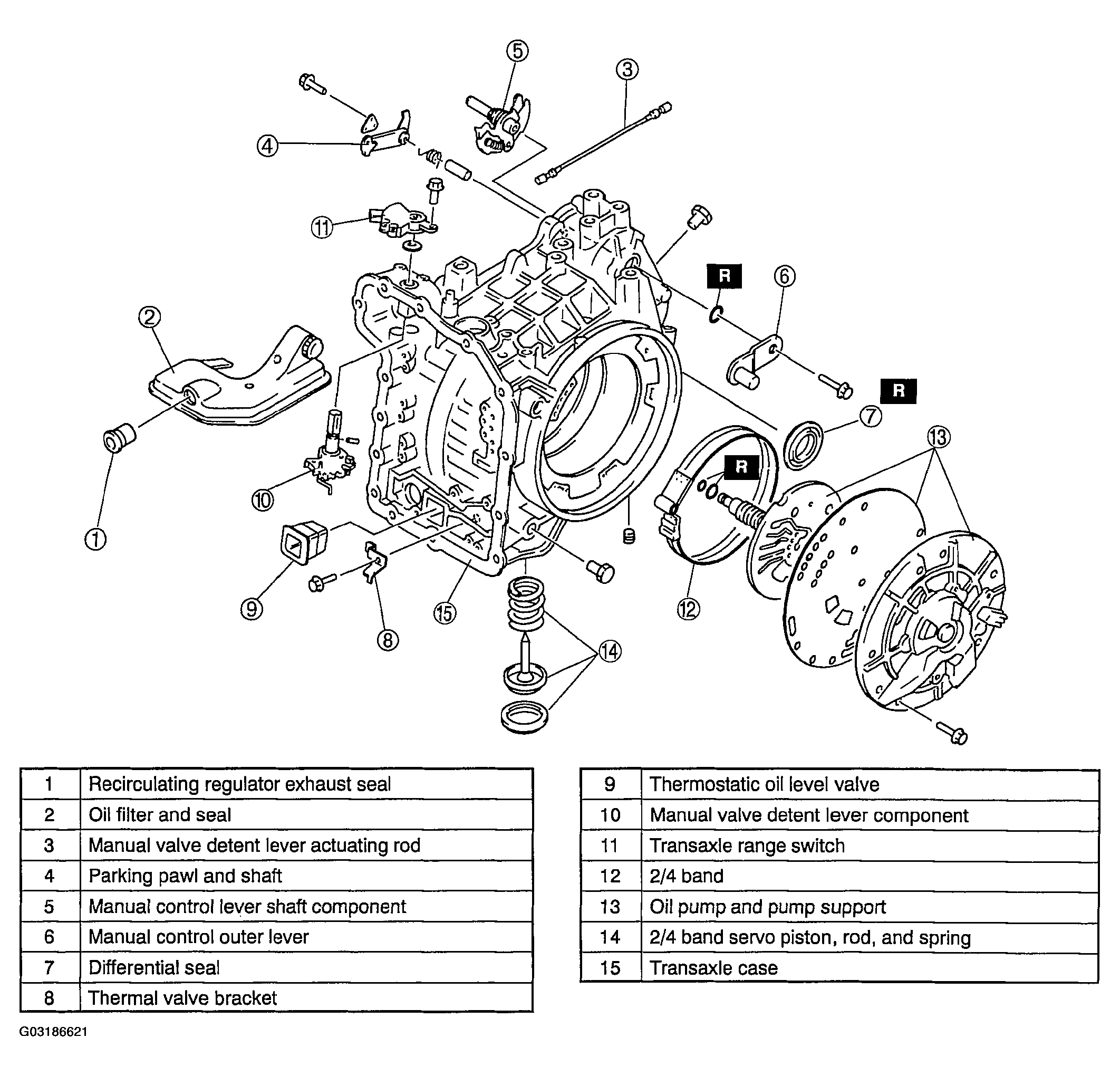

Fig 1: Identifying Transaxle Components (1 Of 4)
G03186621Courtesy of MAZDA MOTORS CORP.

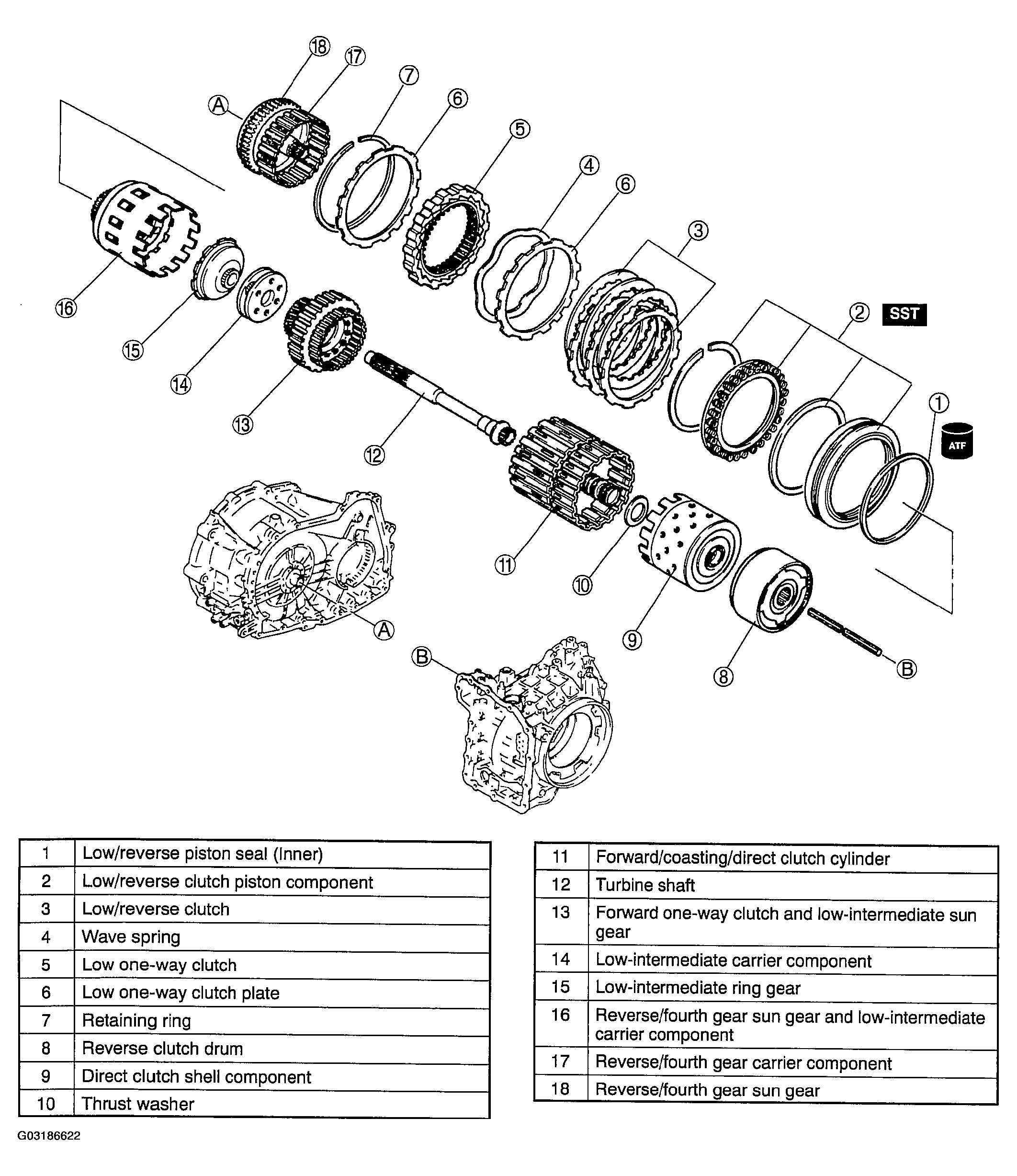

Fig 2: Identifying Transaxle Components (2 Of 4)
G03186622Courtesy of MAZDA MOTORS CORP.

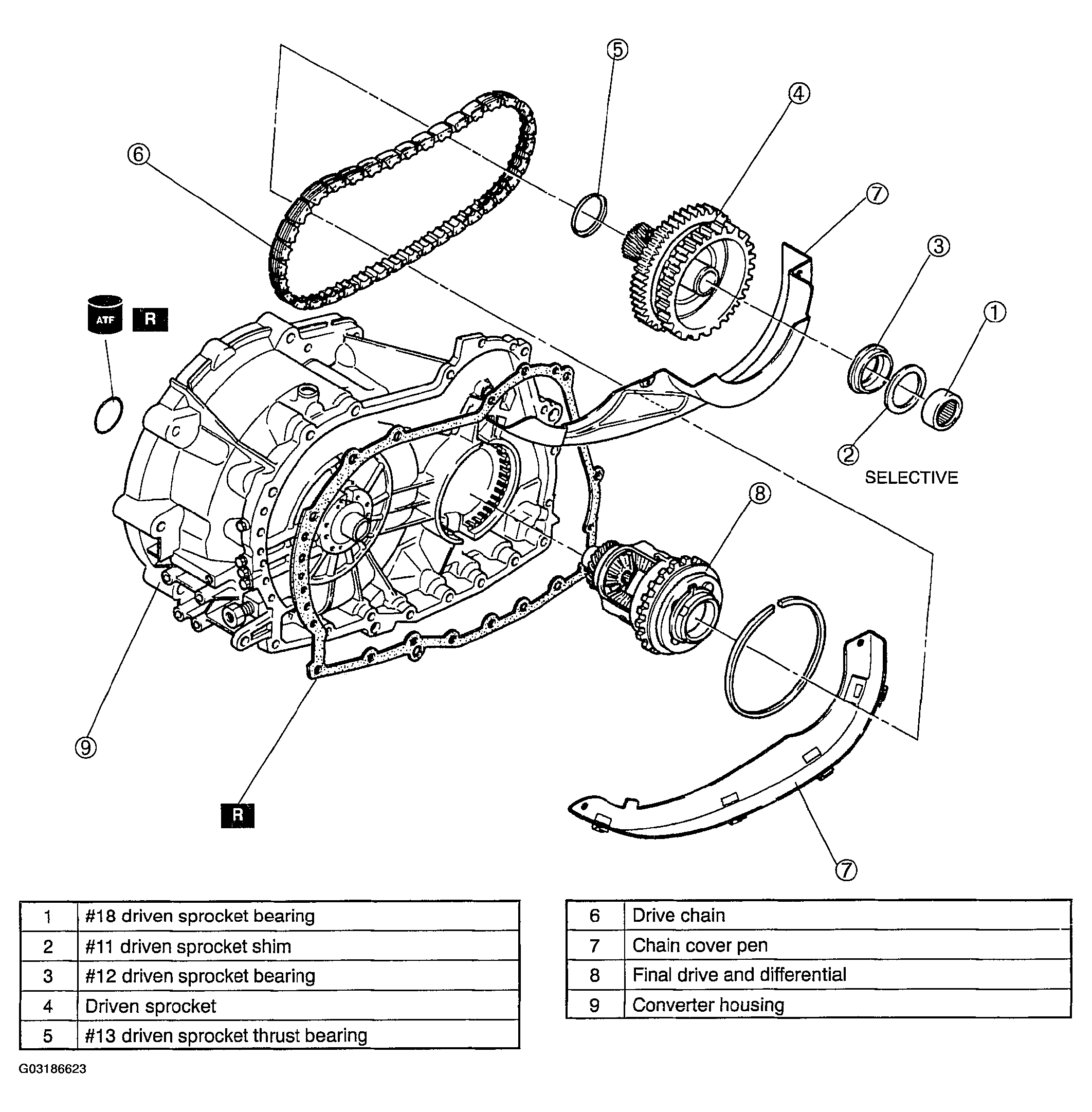

Fig 3: Identifying Transaxle Components (3 Of 4)
G03186623Courtesy of MAZDA MOTORS CORP.

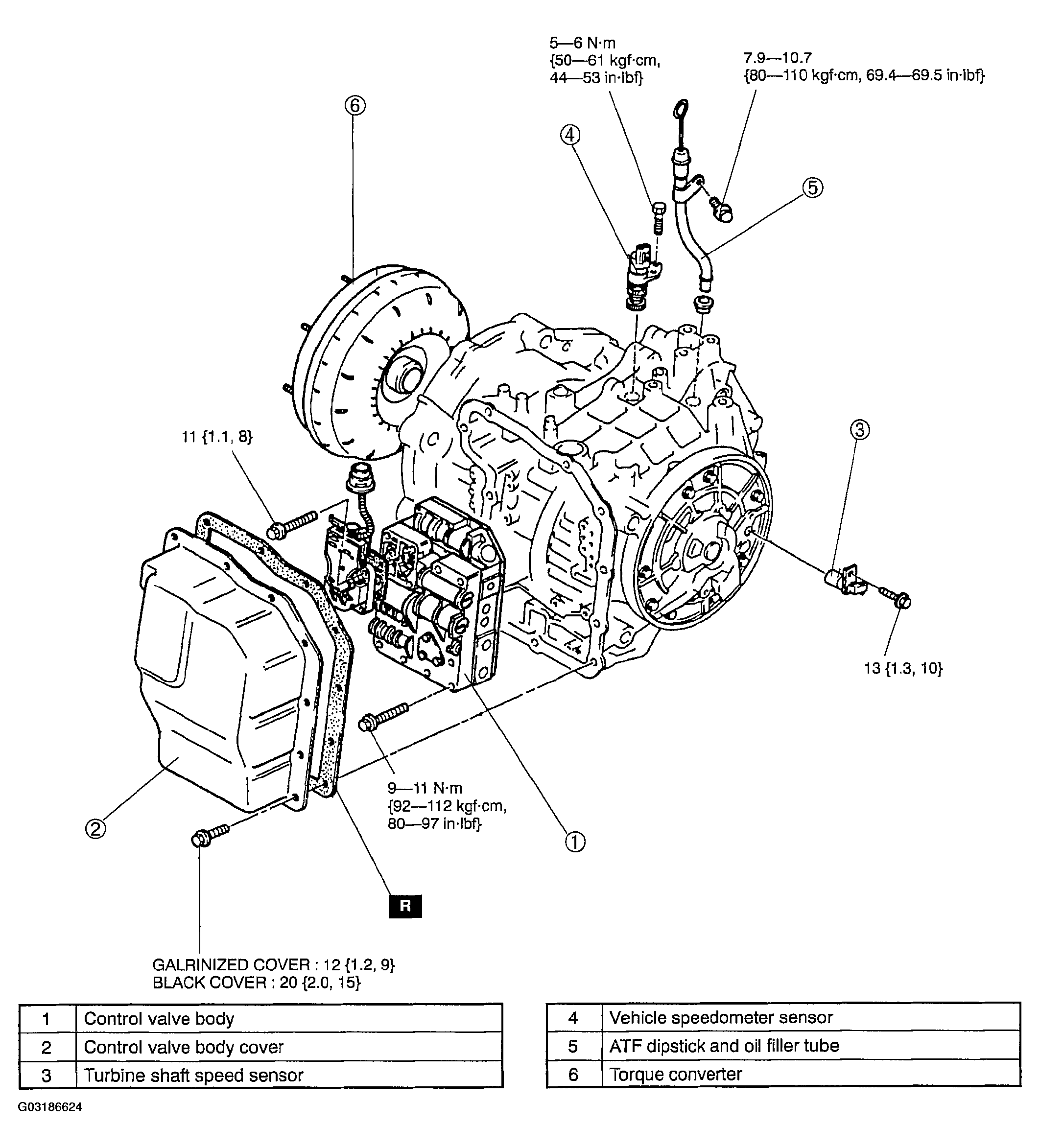

Fig 4: Identifying Transaxle Components (4 Of 4)
G03186624Courtesy of MAZDA MOTORS CORP.
