Final Assembly: Notes

NOTE: For thrust bearing, race and washer dimensions and locations, refer to illustration. See Fig 1 .

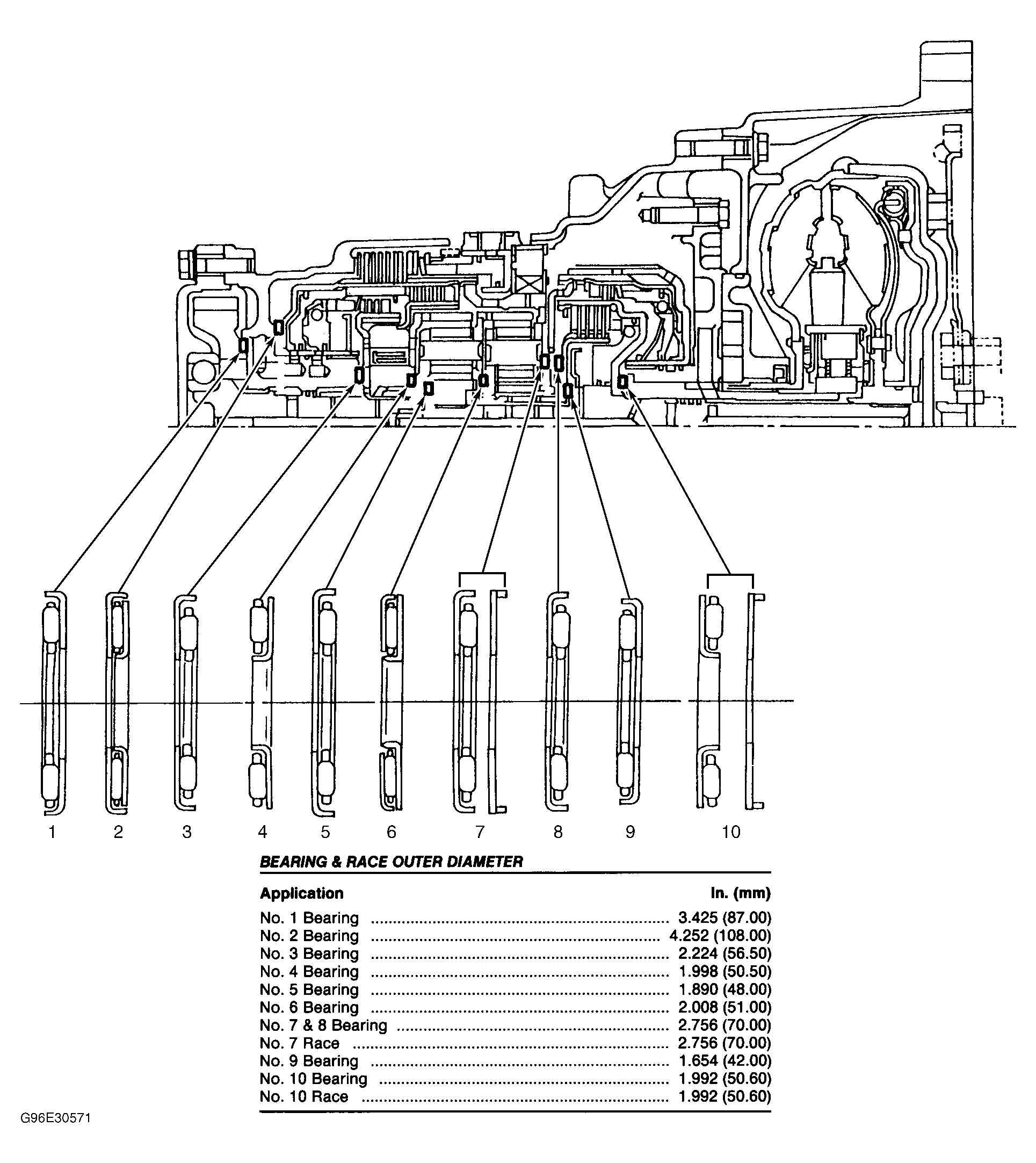

Fig 1: Identifying Transaxle Thrust Bearings & Races
G96E30571Courtesy of MAZDA MOTORS CORP.
