DRL And Auto Light-Off System Wiring Diagram

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

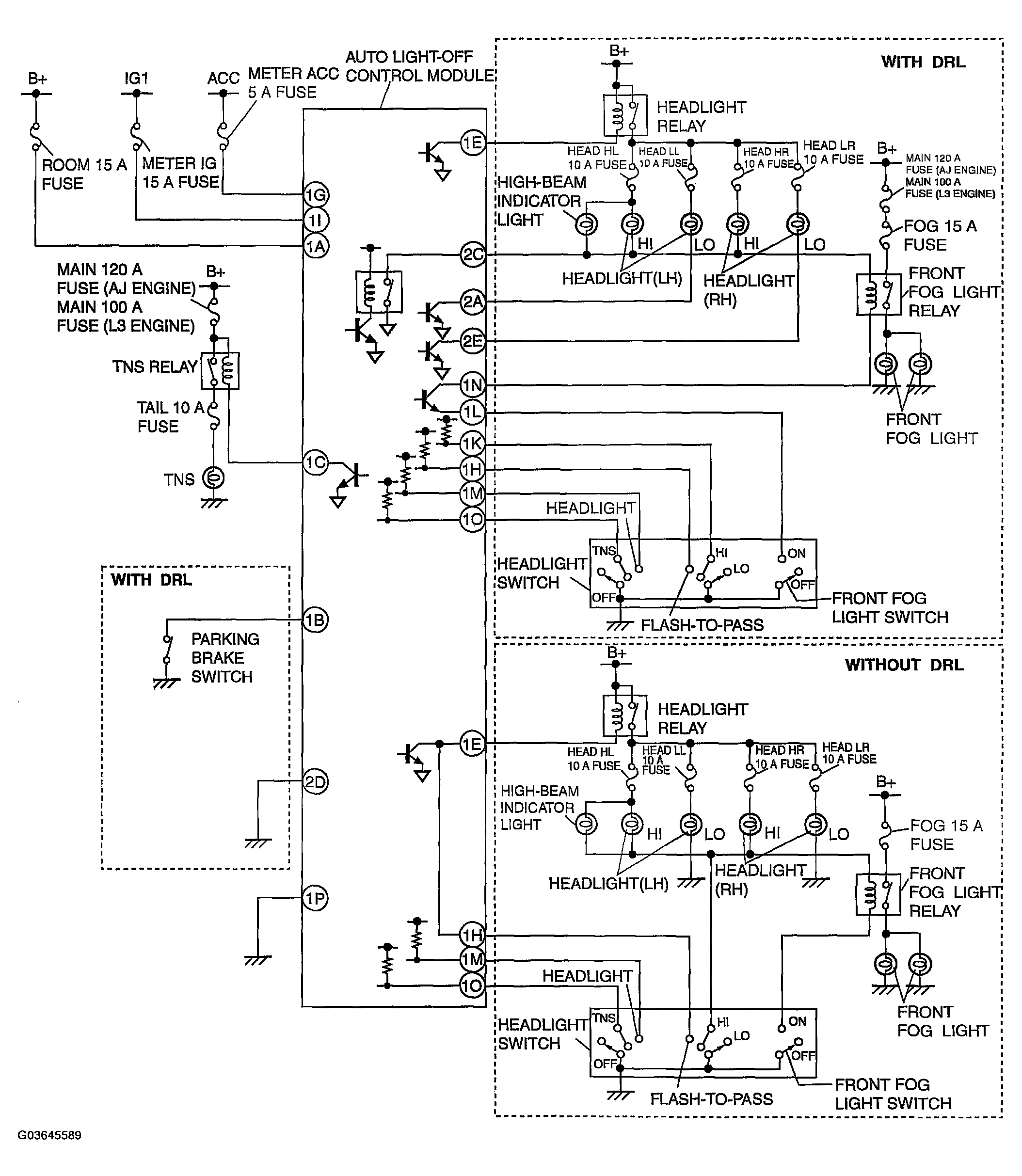

Fig 1: DRL And Auto Light-Off System - Wiring Diagram
G03645589Courtesy of MAZDA MOTORS CORP.
