Steering Gear & Linkage Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in Fig 1 .
  2. Assemble in the reverse order of disassembly.

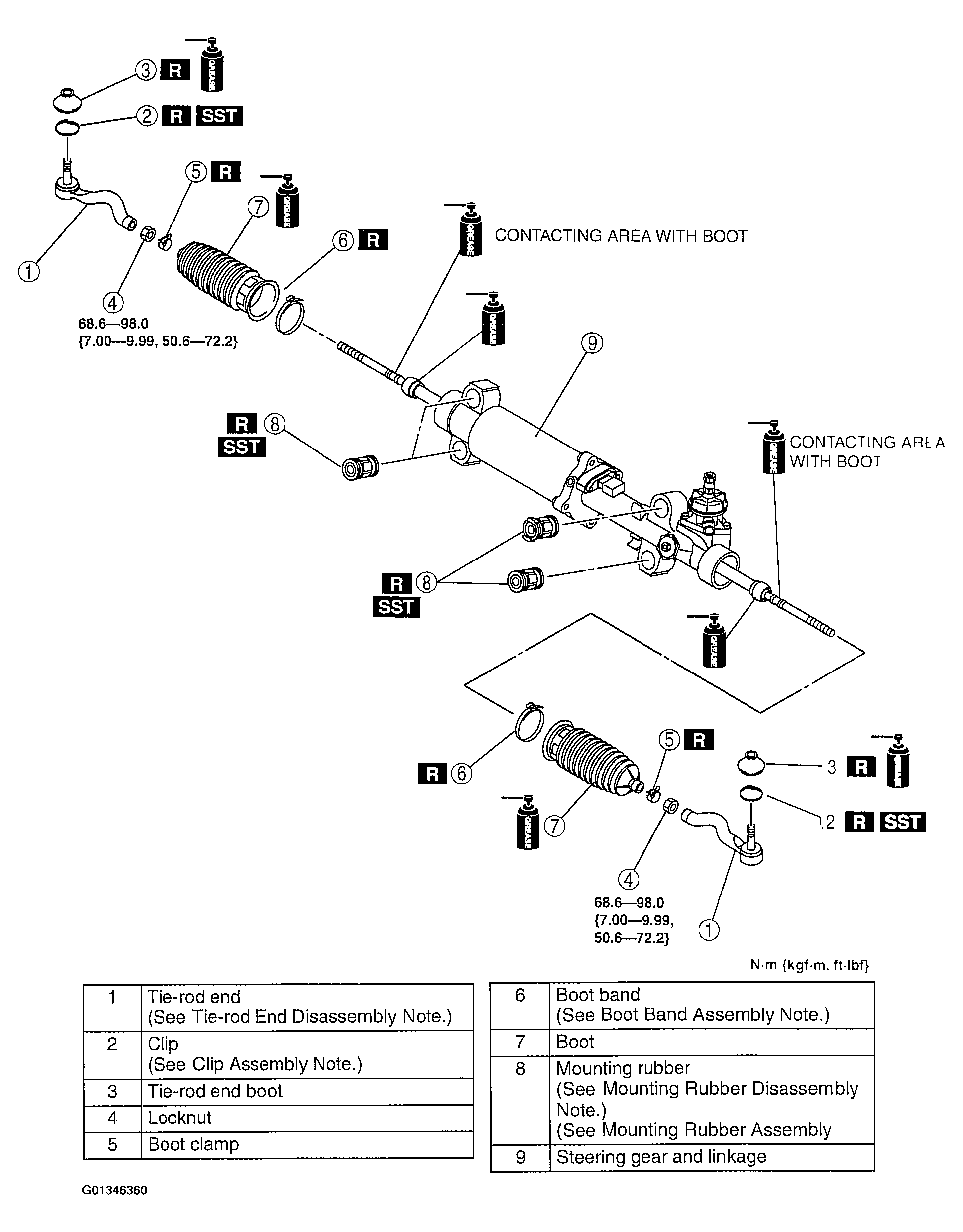

    Fig 1: Removal & Installation Order Of Steering Gear & Linkage
    G01346360Courtesy of MAZDA MOTORS CORP.
