Windshield Wiper Arm And Blade Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the illustration.

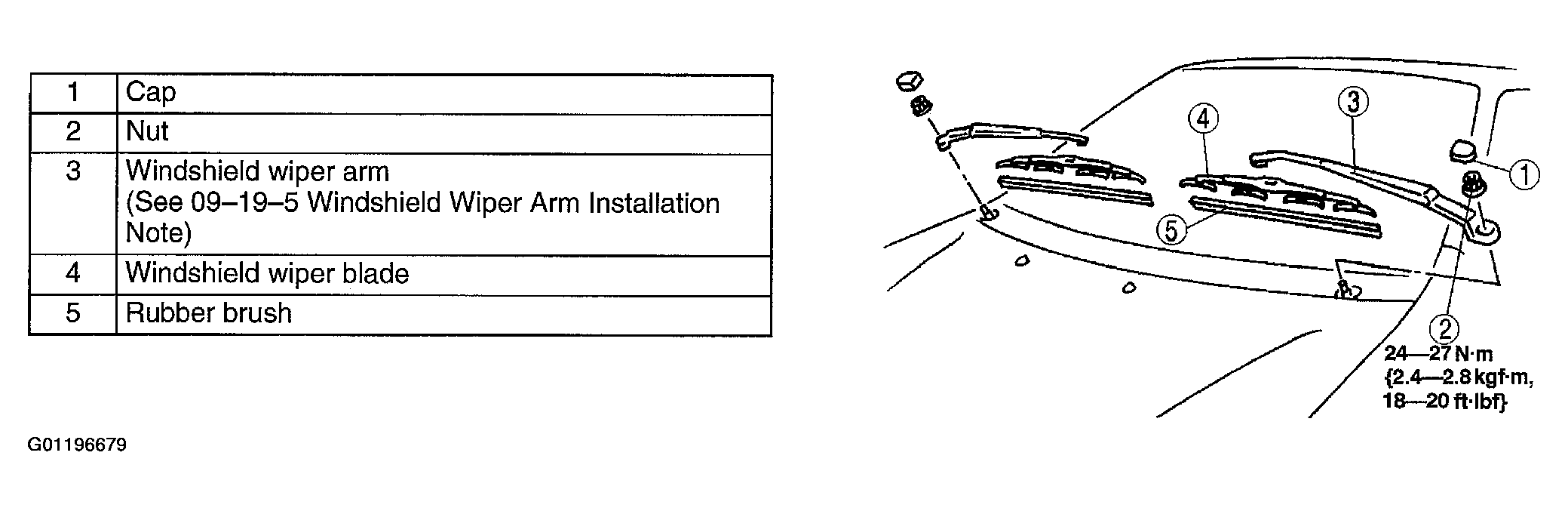

    Fig 1: Removing/Installing Front Wiper Arms & Blades
    G01196679Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Adjust the windshield wiper arm and blade. See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT  .
