DTC P1195: EGR Boost Sensor

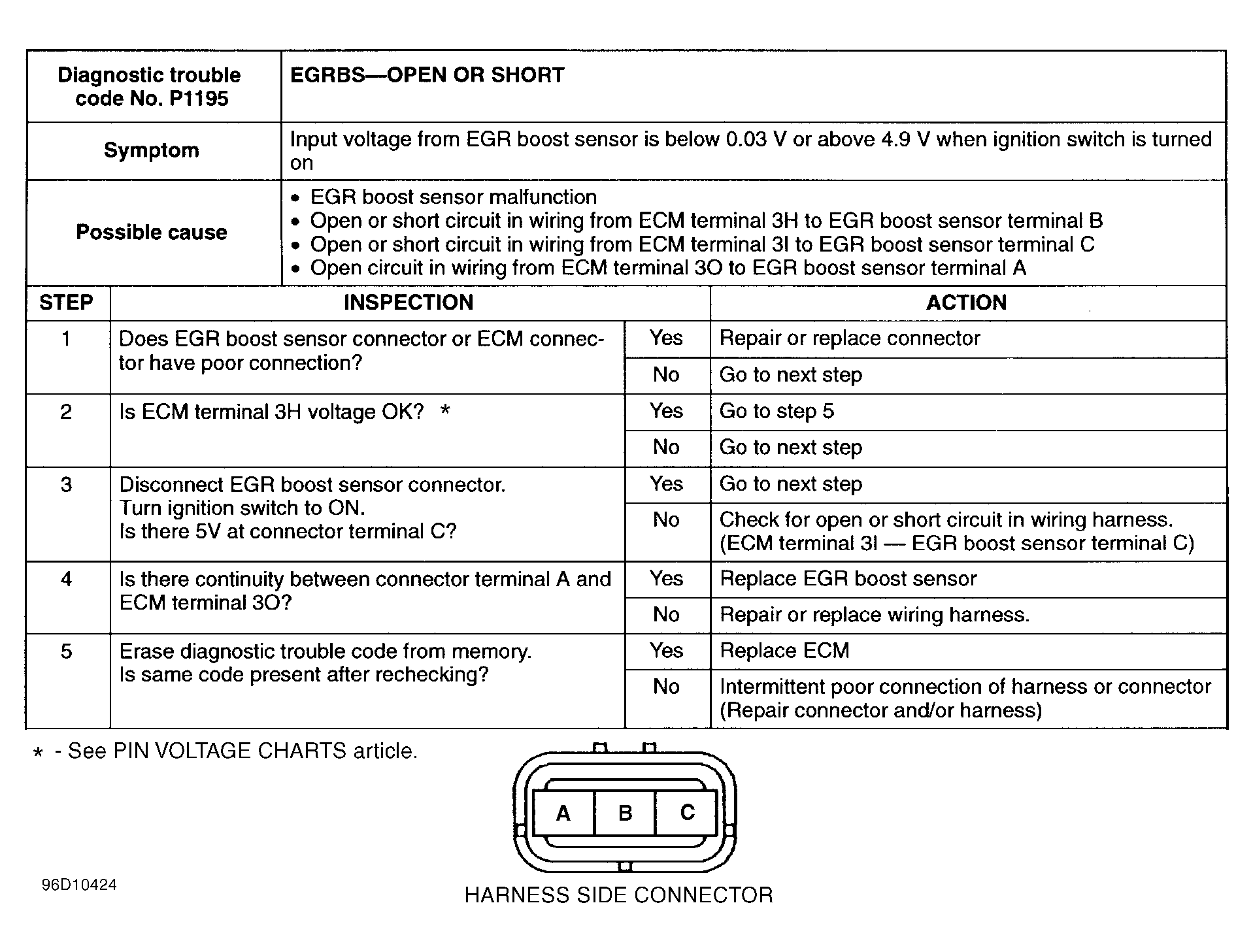

Fig 1: DTC P1195 EGR Boost Sensor

G96D10424

Courtesy of MAZDA MOTORS CORP.
