DTC P1507: IAC System UNDERSPEED Error
DTC P1507: IAC System UNDERSPEED Error

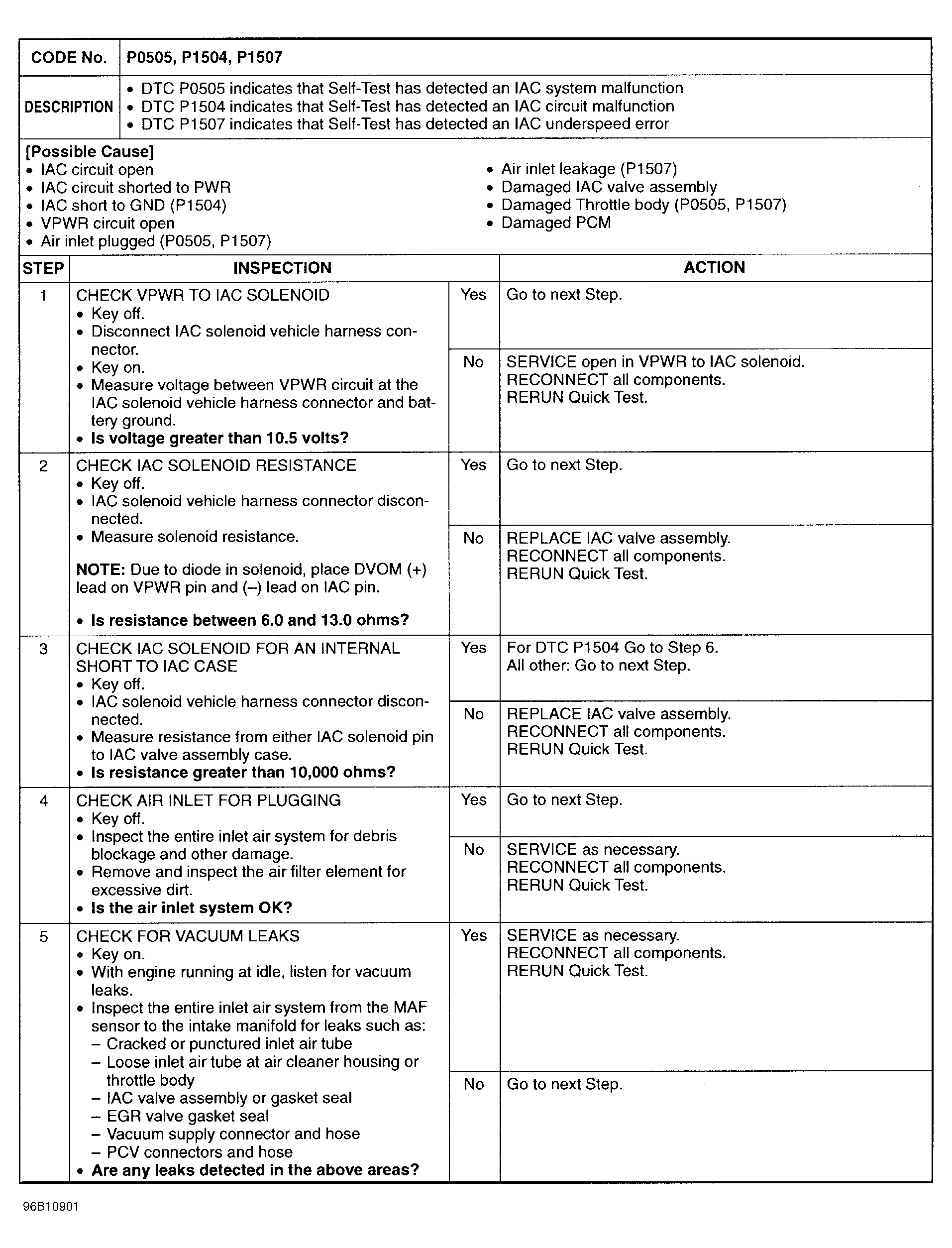

Fig 1: DTC P0505/P1504/P1507 (1 OF 2)

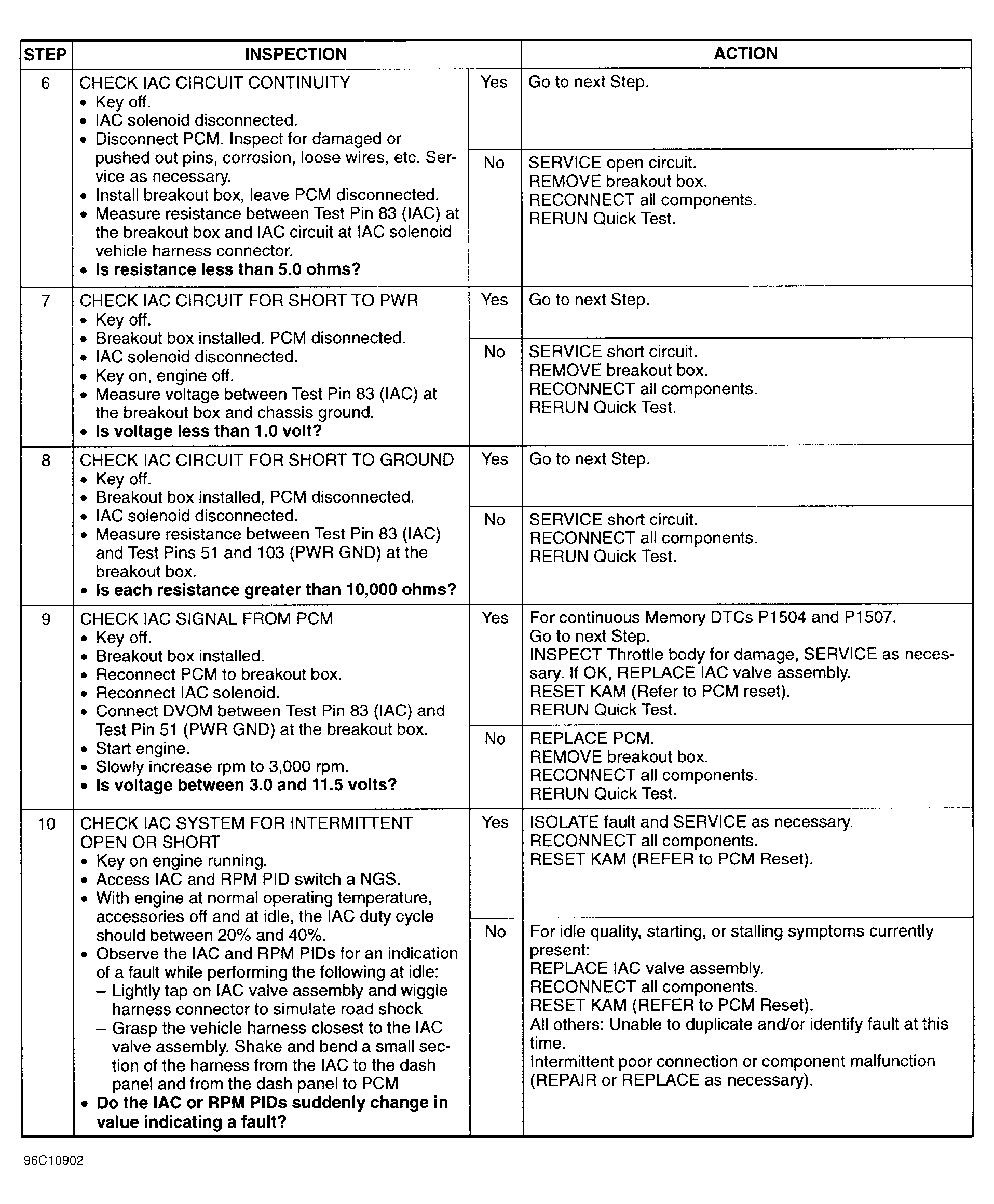

Fig 2: DTC P0505/P1504/P1507 (2 OF 2)
