Home >> Mazda >> 1996 >> MX-6 Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - 2.0L A/T >> Diagnostic Trouble Code Charts >> DTC P0122: TP Sensor CKT Low Input

DTC P0122: TP Sensor CKT Low Input

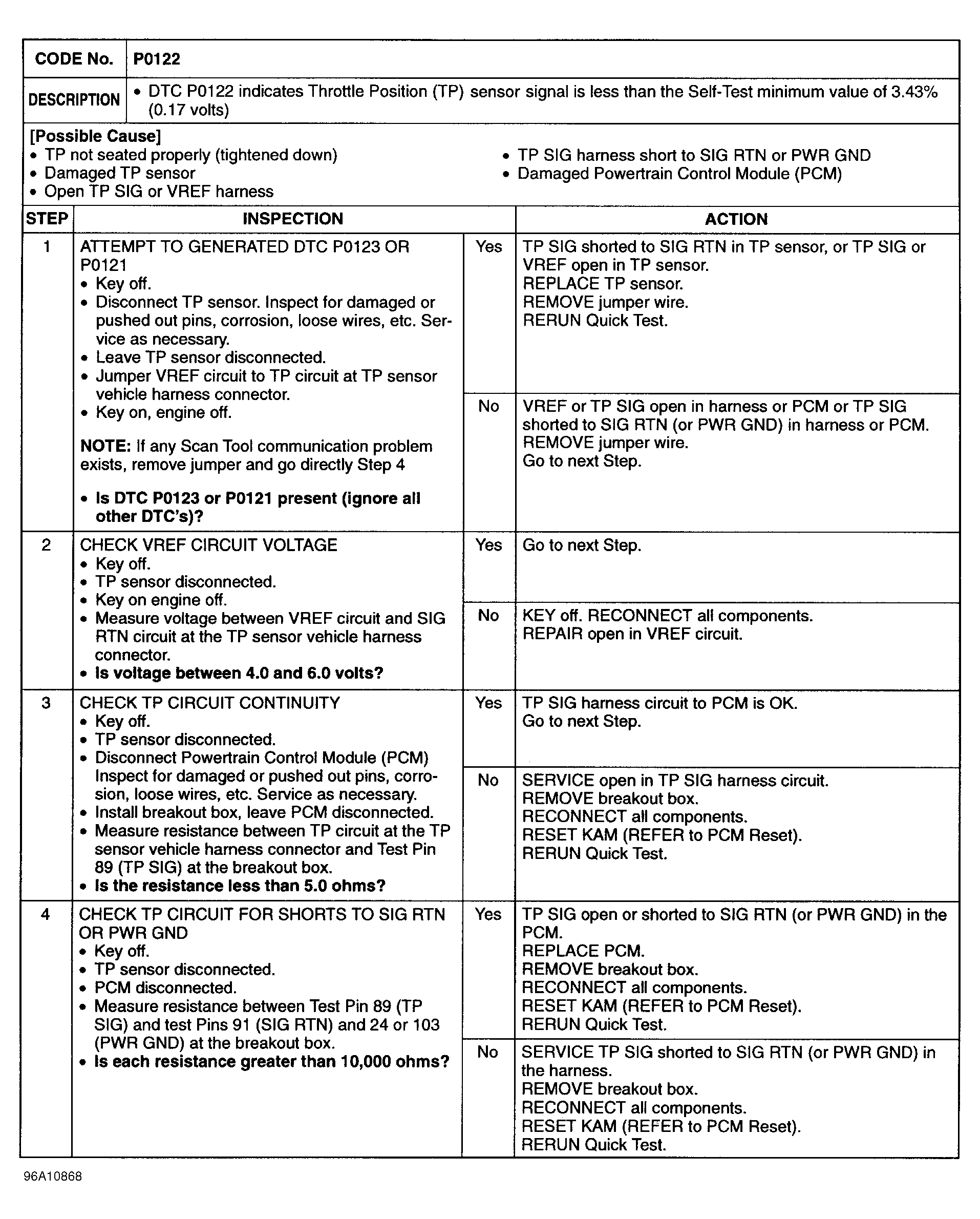

Fig 1: DTC P0122

G96A10868
