Home >> Mazda >> 1996 >> MX-6 Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - 2.0L A/T >> Diagnostic Trouble Code Charts >> DTC P0118: Continuous (ECT Sensor CKT High Input)

DTC P0118: Continuous (ECT Sensor CKT High Input)

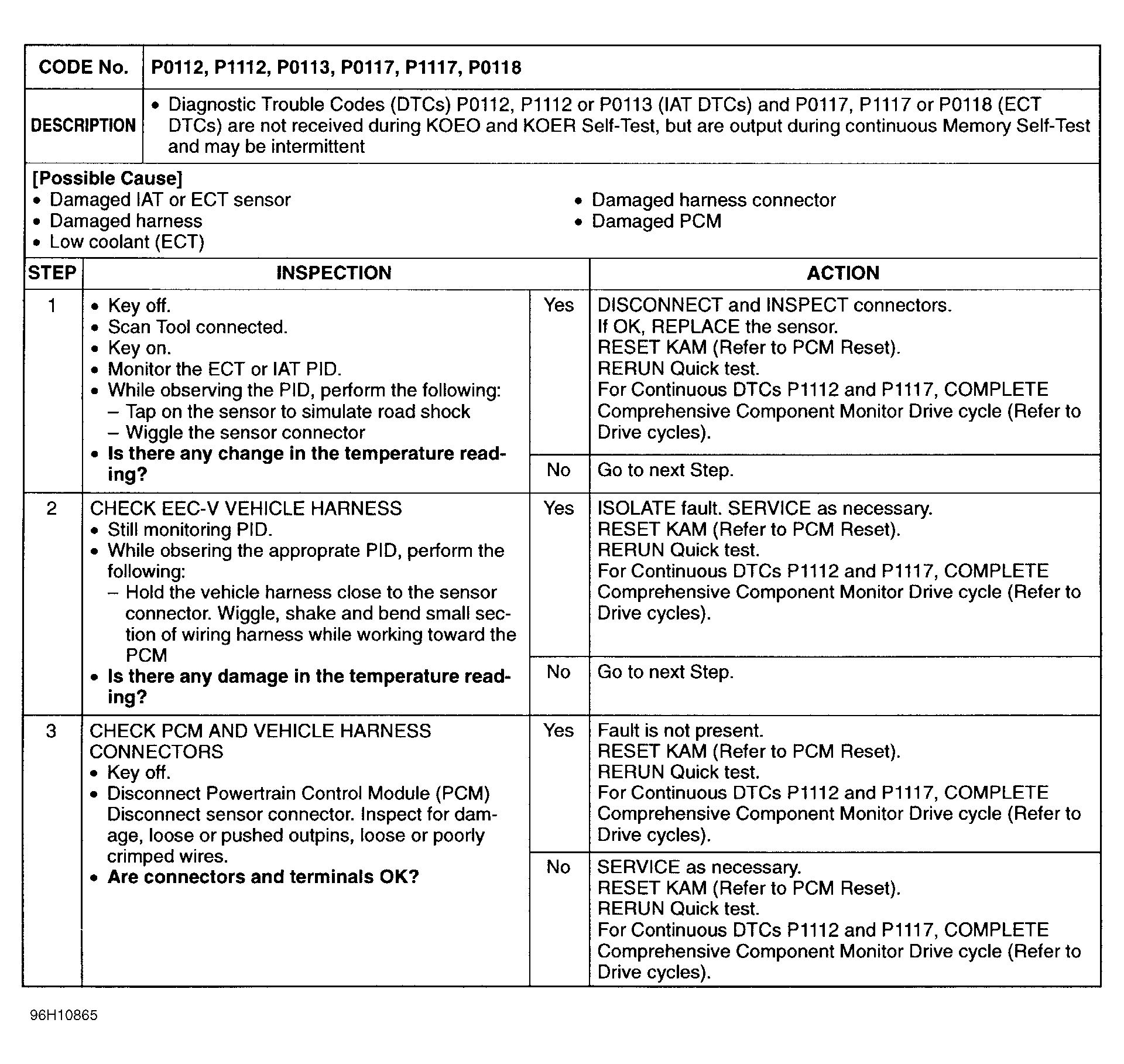

Fig 1: DTC P0112, P0113, P0117, P0118, P1112, & P1117

G96H10865
