DTC P0102: MAF Sensor CKT Low Input

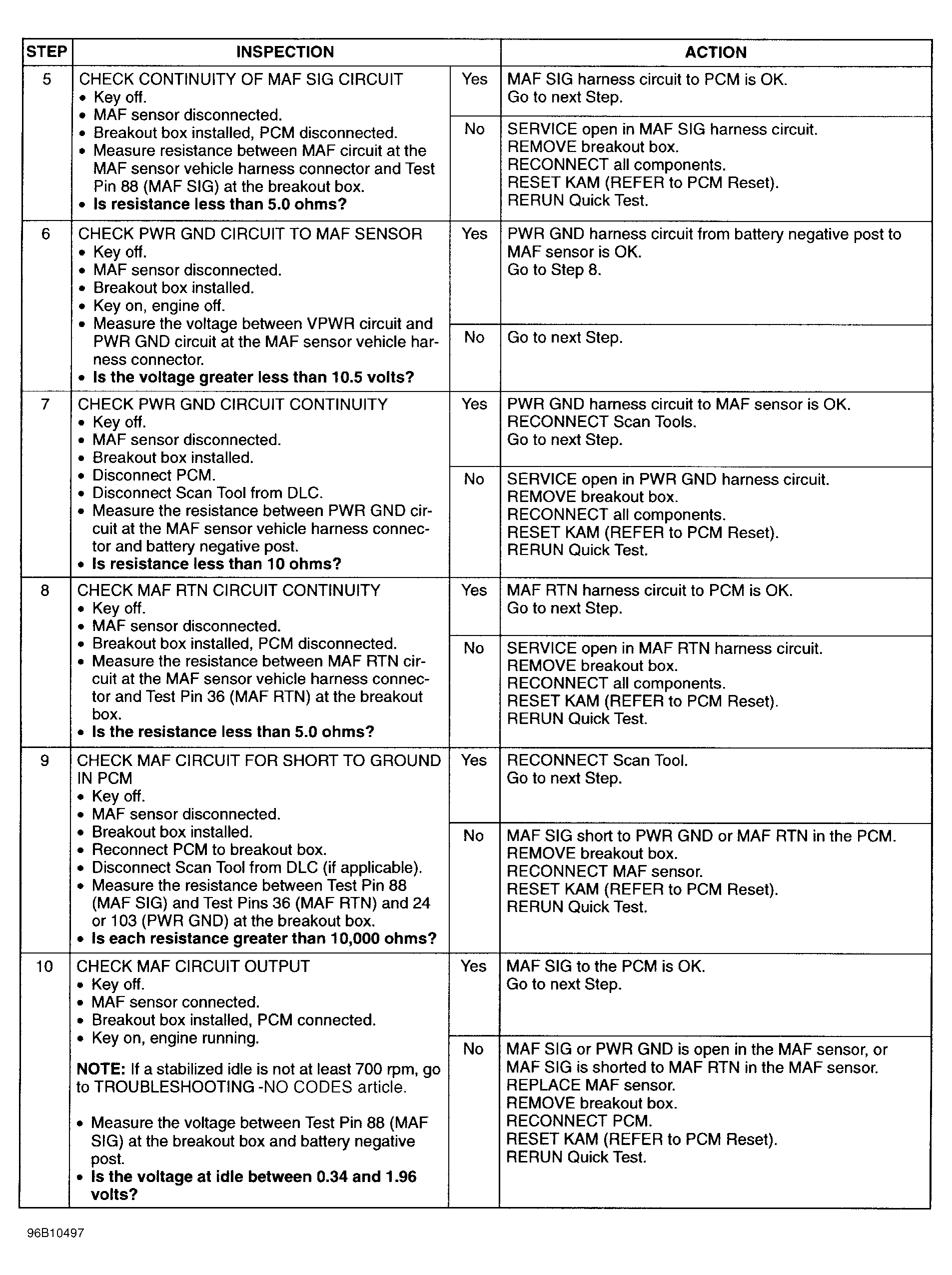

Fig 1: DTC P0102 (1 Of 3)

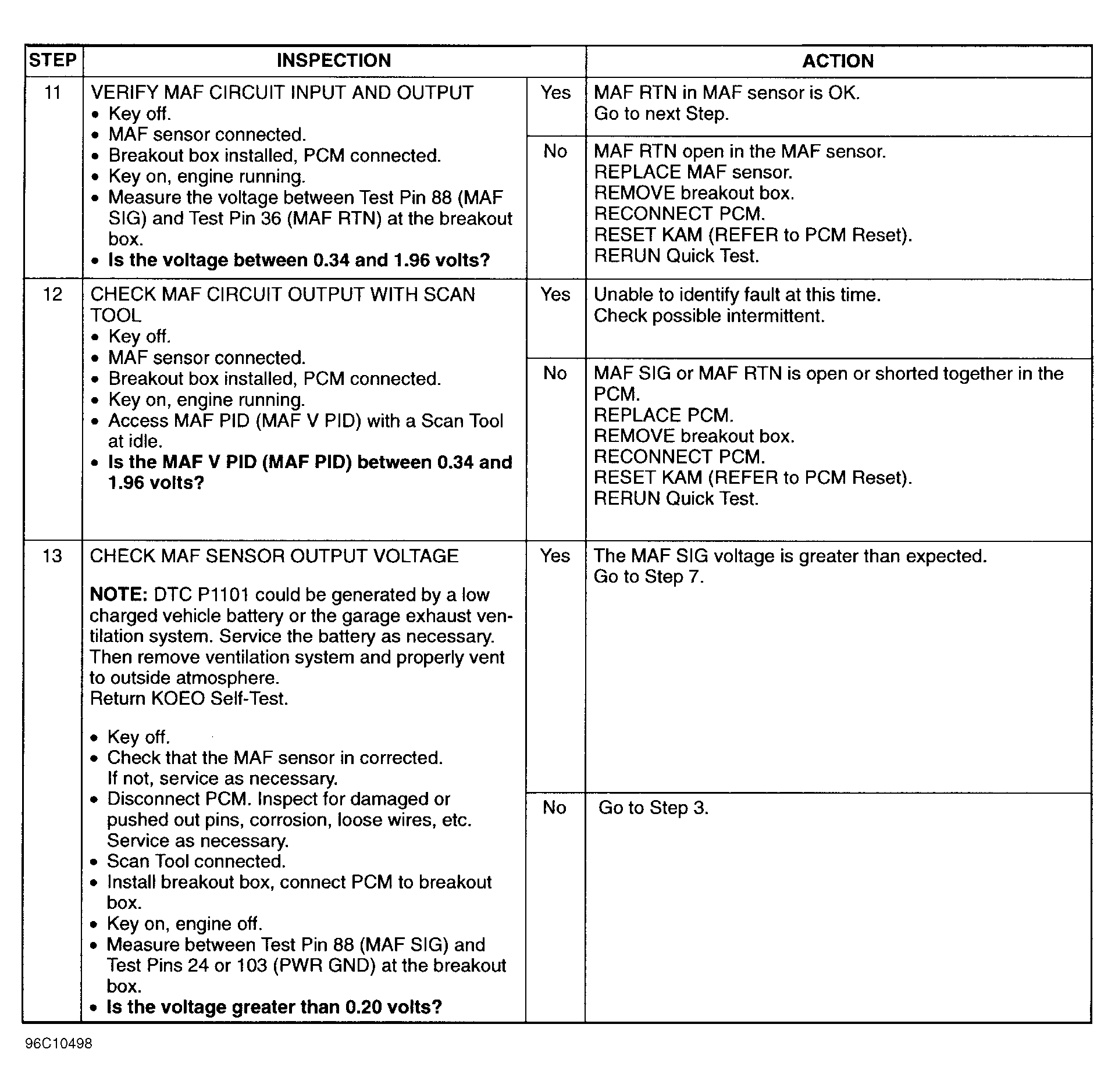

Fig 2: DTC P0102 (2 Of 3)
Fig 3: DTC P0102 (3 Of 3)
