DTC P1455: Fuel Gauge Sender Unit
DTC P1455: Fuel Gauge Sender Unit

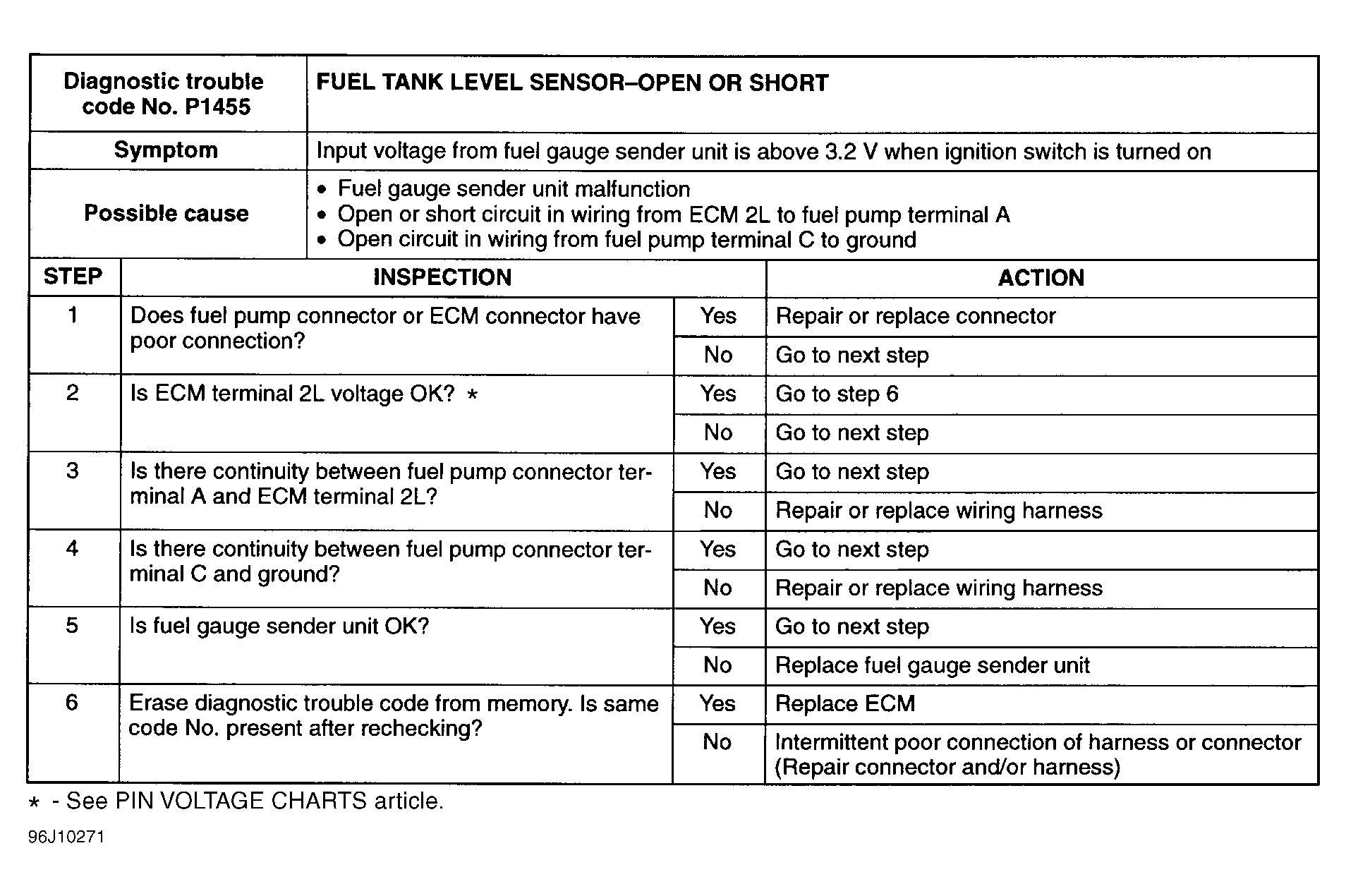

Fig 1: DTC P1455 Fuel Gauge Sender Unit
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
