Home >> Mazda >> 1996 >> MPV DX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Diagnostic Trouble Code Charts >> DTC P0100: Mass Air Flow/Volume Air Flow CKT Malfunction

DTC P0100: Mass Air Flow/Volume Air Flow CKT Malfunction

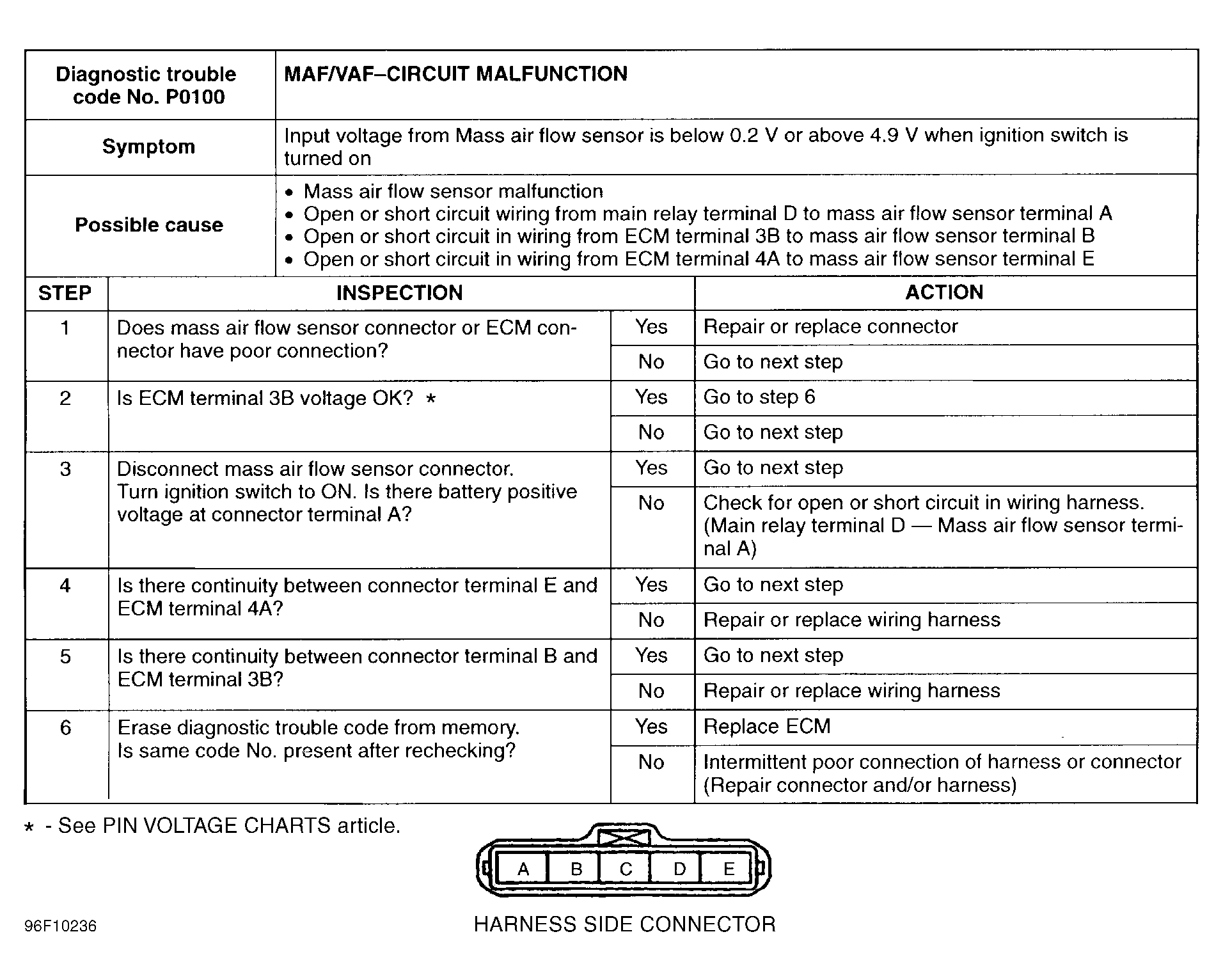

Fig 1: DTC P0100 Mass Air Flow/Volume Air Flow CKT Malfunction

G96F10236

Courtesy of MAZDA MOTORS CORP.
