DTC P1460: Wot Cut-Off Relay Circuit/DTC P1464 A/C Circuit Malfunction

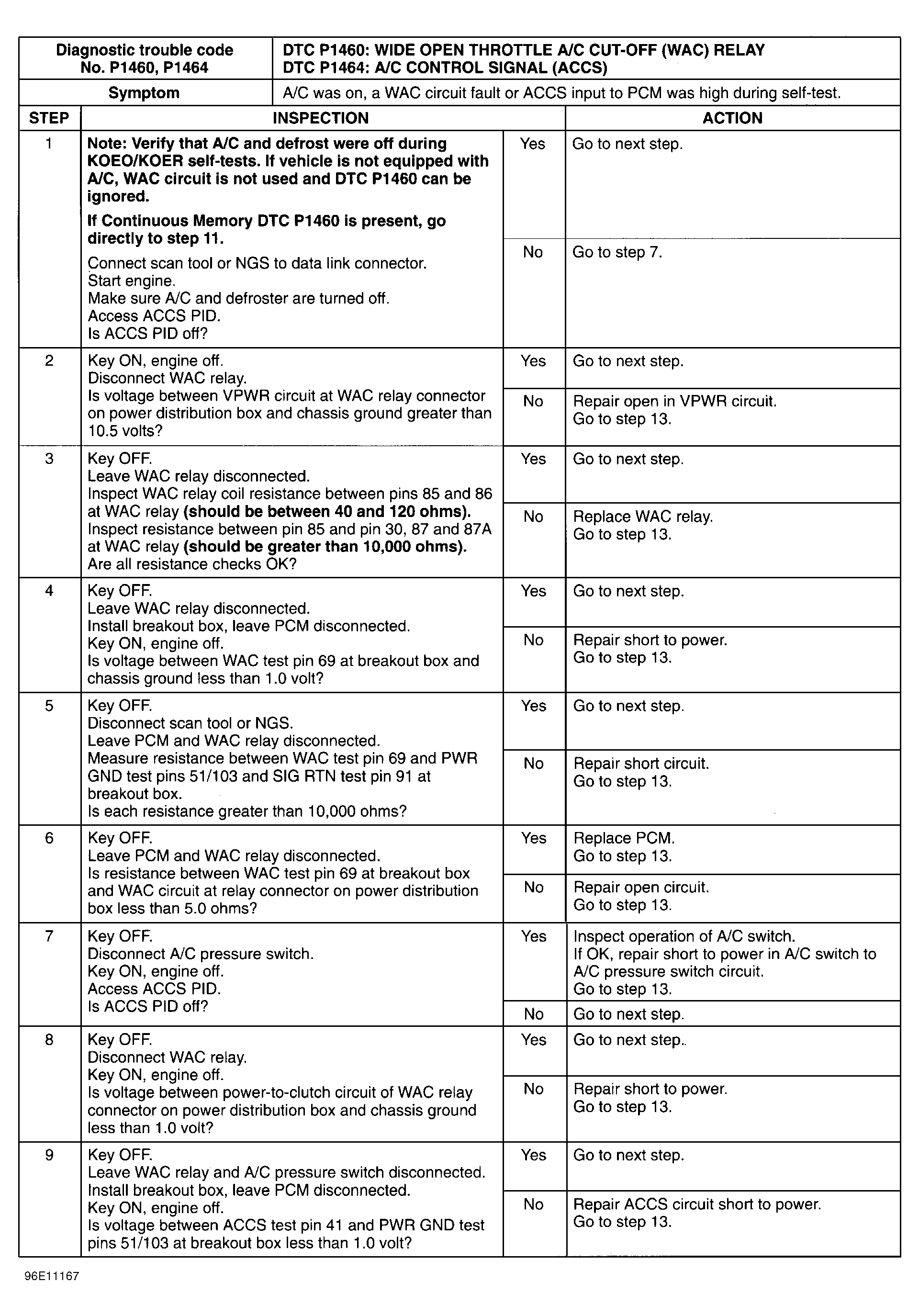

Fig 1: DTC P1460 & P1464 (1 OF 2)

G96E11167

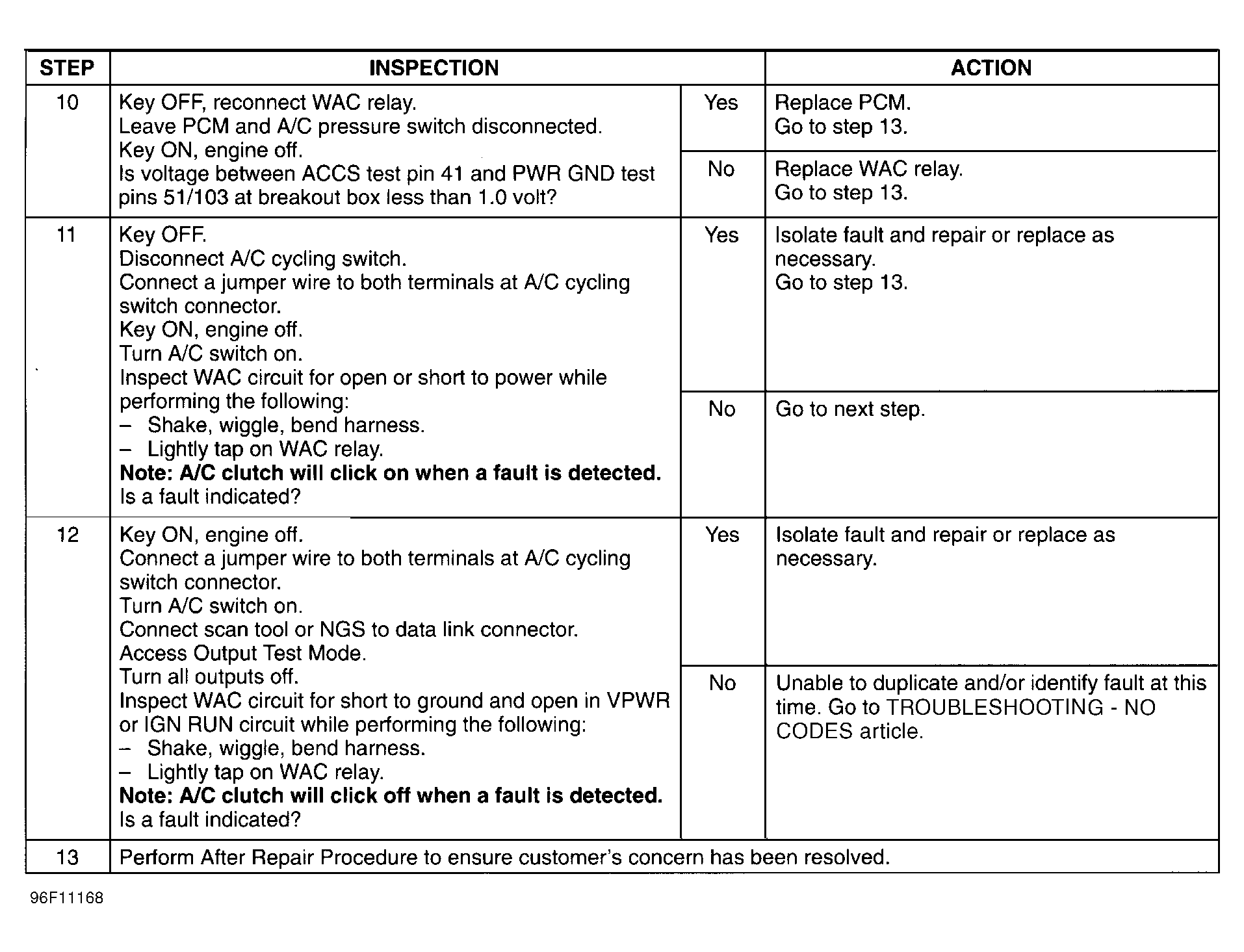

Fig 2: DTC P1460 & P1464 (2 OF 2)

G96F11168

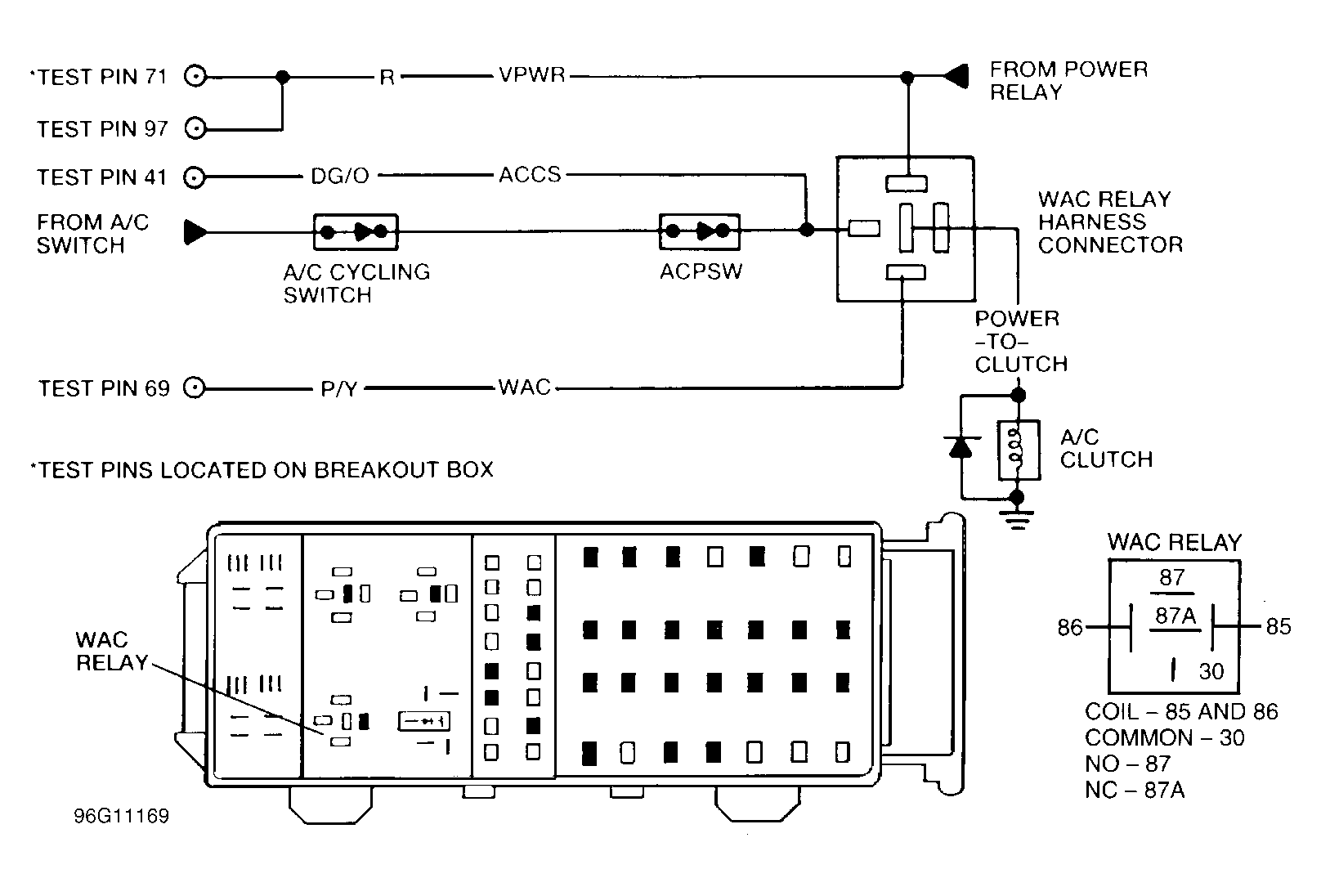

Fig 3: WOT CUT-OFF WAC RELAY & A/C CIRCUIT DIAGRAM

G96G11169
