DTC P1444 & P1445: Purge Flow Sensor Circuit Malfunction

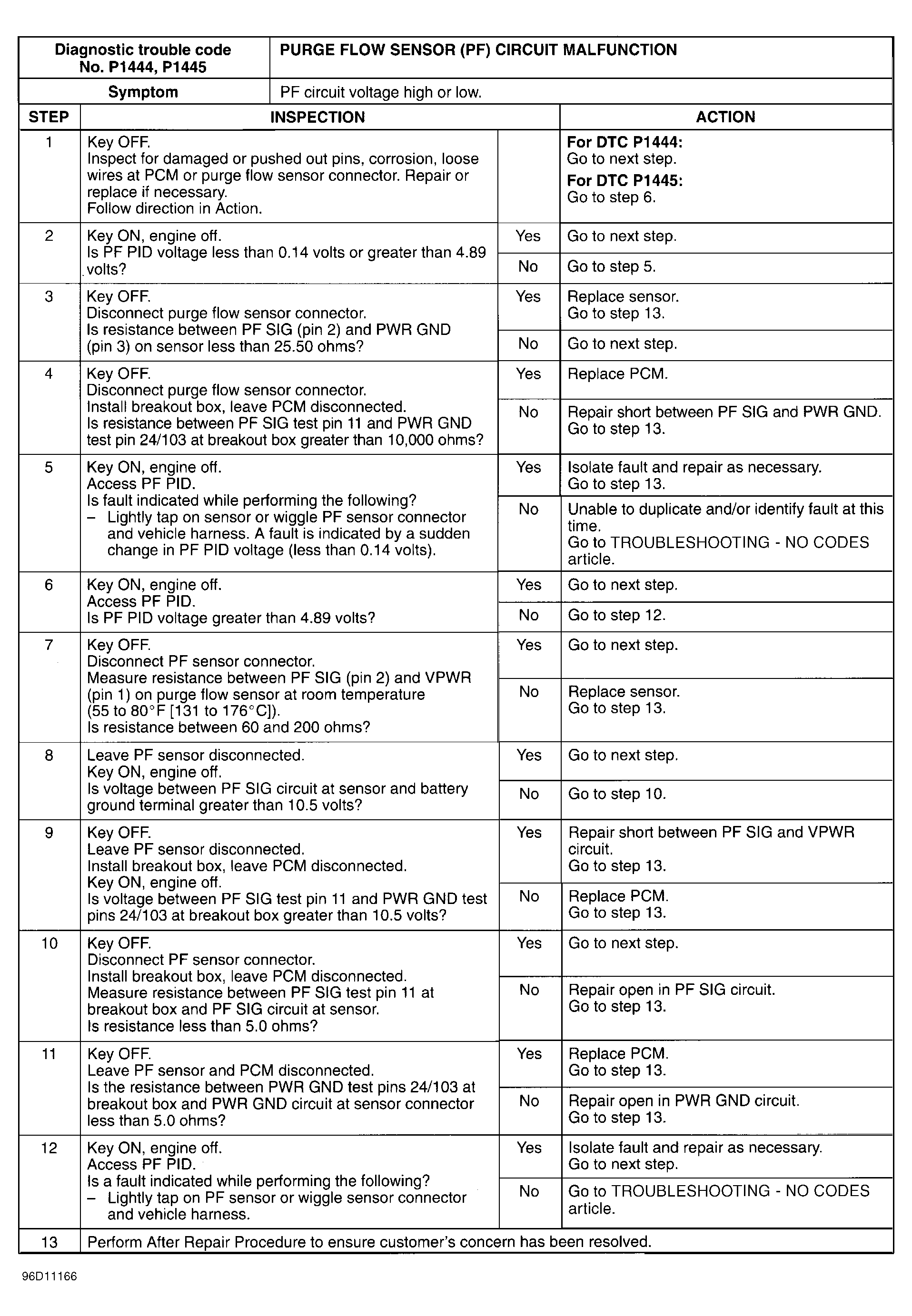

Fig 1: DTC P1444 & P1445 Purge Flow Sensor CIRCUIT Malfunction

G96D11166

Fig 2: Purge Flow (PF) Sensor CIRCUIT Diagram

G95A34637
