Engine Controls - Tests W/Codes
>>
Diagnostic Trouble Code Charts
>>
DTC P1405 & 1406: Differential PFE Sensor Circuit Malfunction
DTC P1405 & 1406: Differential PFE Sensor Circuit Malfunction

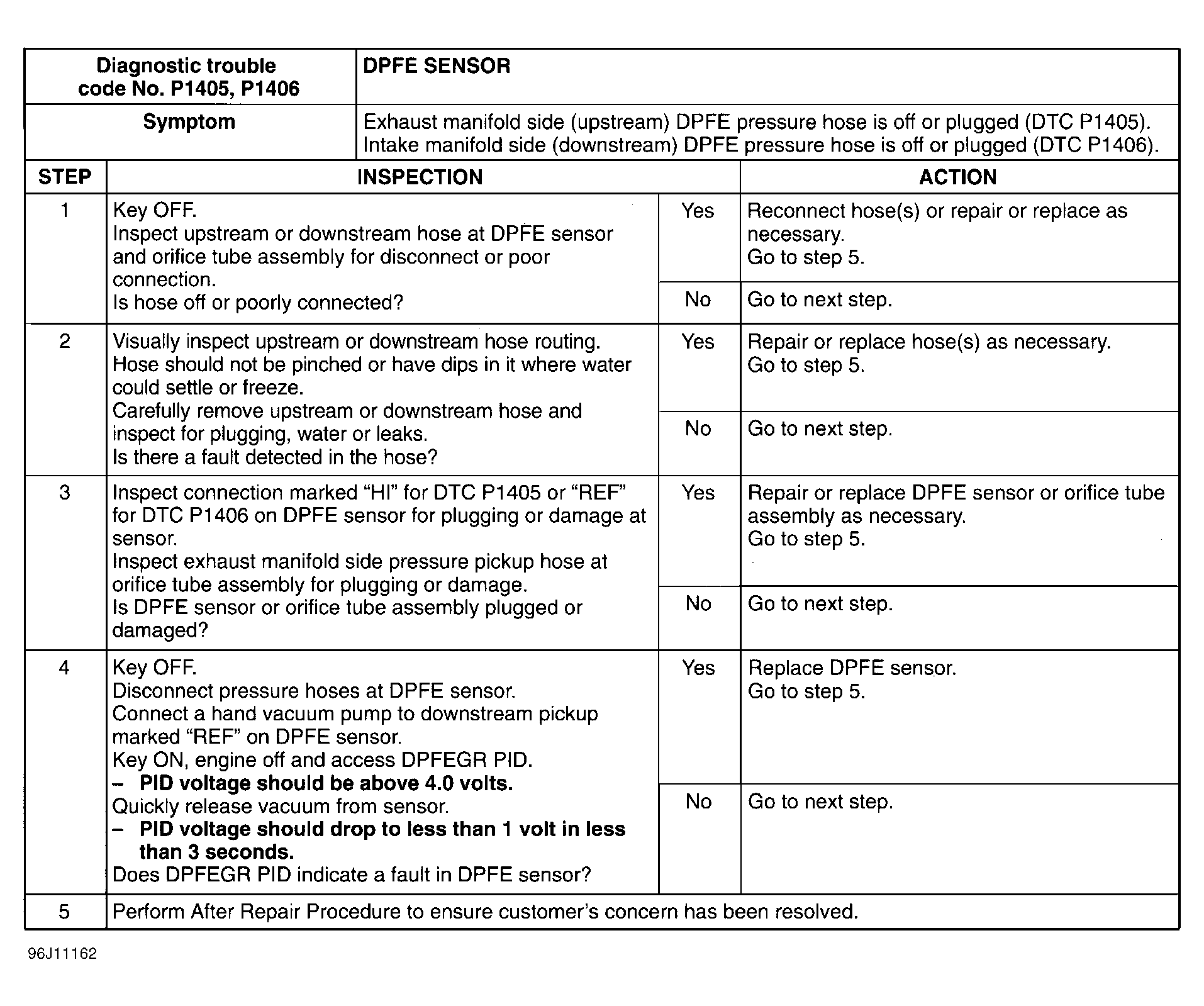

Fig 1: DTC P1405 & 1406 Differential PFE Sensor CIRCUIT Malfunction
