DTC P1400 & 1401: Differential PFE Sensor Circuit Malfunction

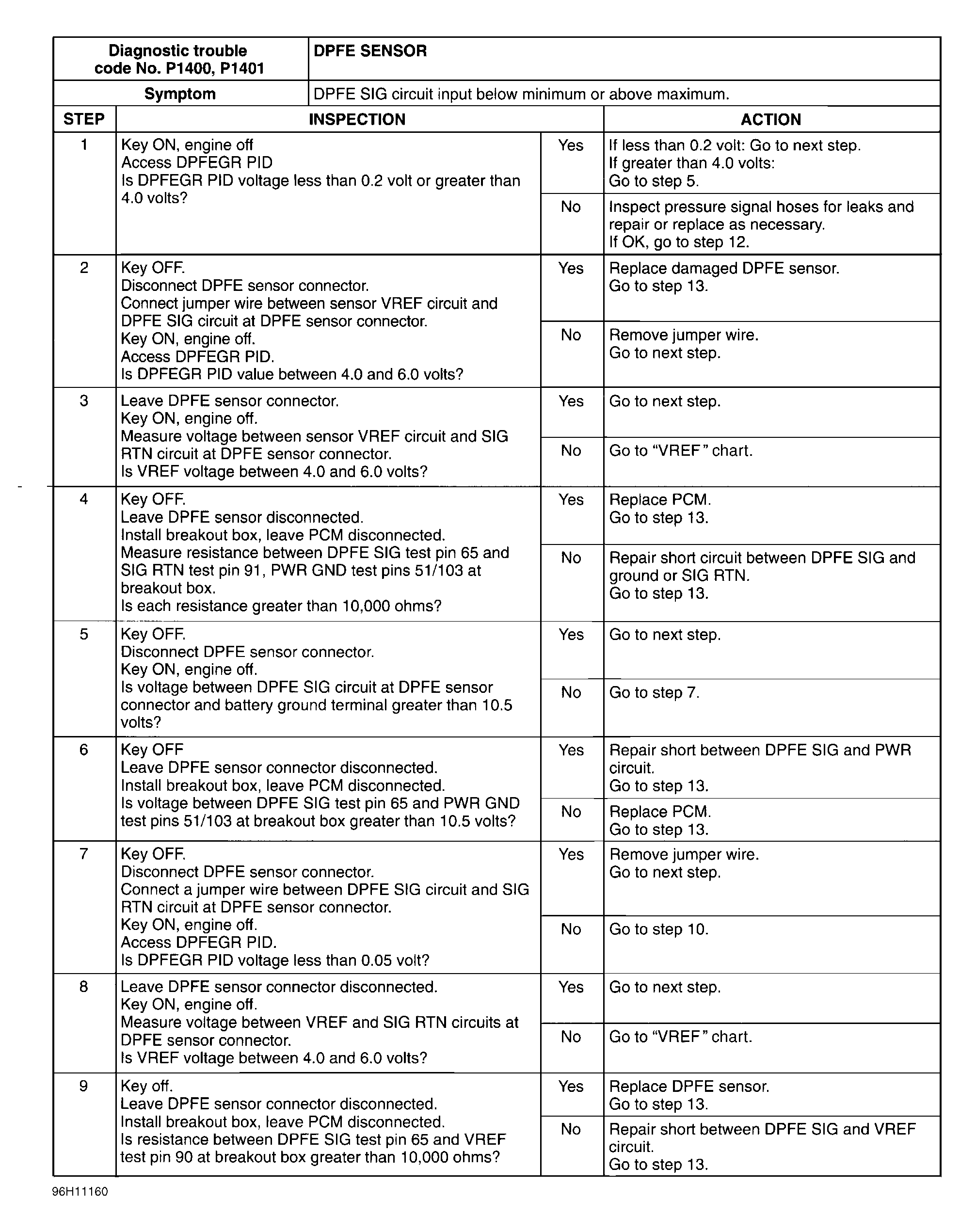

Fig 1: DTC P1400 & 1401 (1 OF 2)

G96H11160

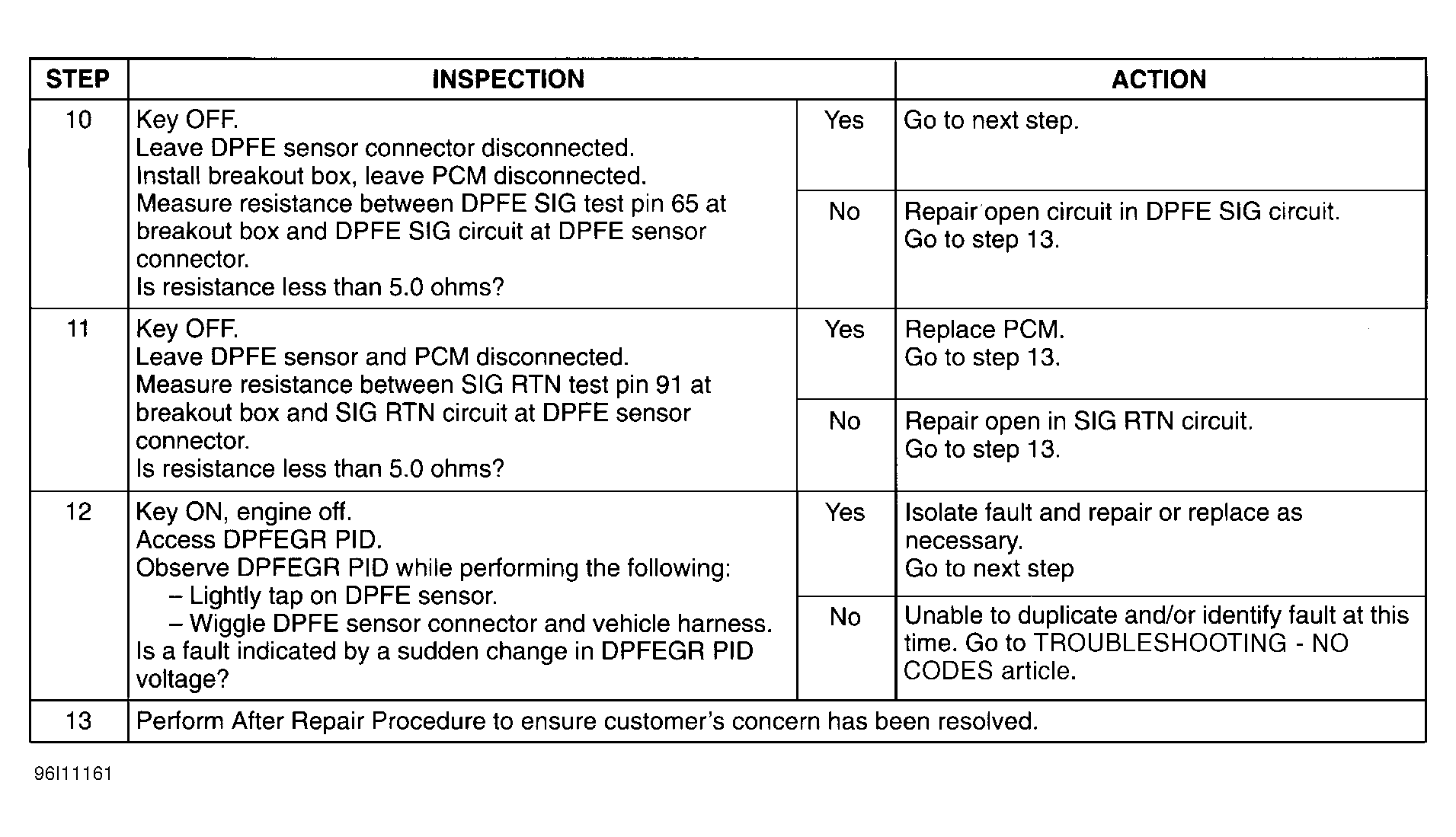

Fig 2: DTC P1400 & 1401 (2 OF 2)

G96I11161

Fig 3: Differential PFE (DPFE) Sensor CIRCUIT Diagram

G95E34631
