DTC P1128: Heated Oxygen Sensor Circuit Malfunction

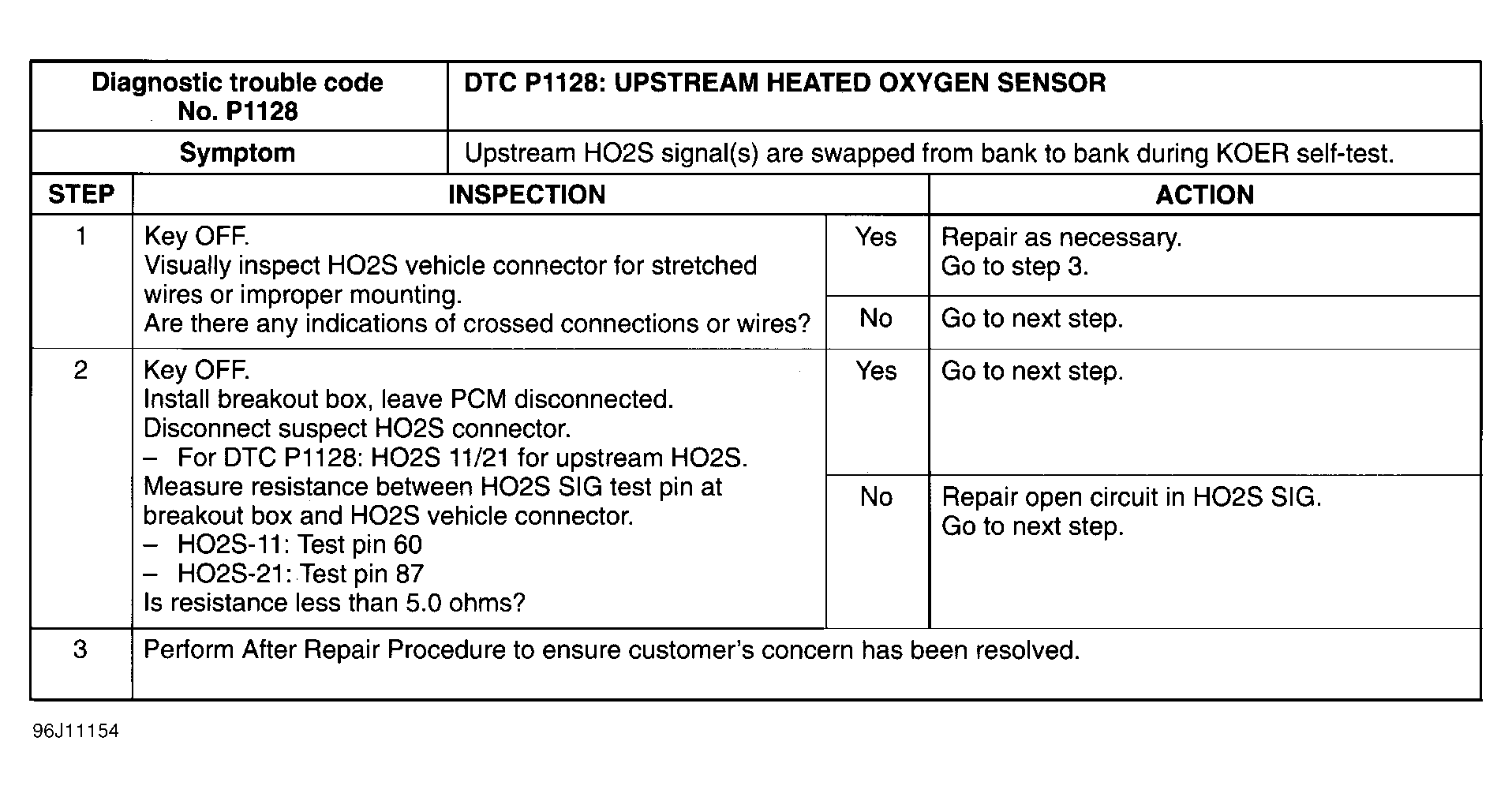

Fig 1: DTC P1128 HO2S CIRCUIT Malfunction

G96J11154
