DTC P0401 & P1408: EGR System Malfunction

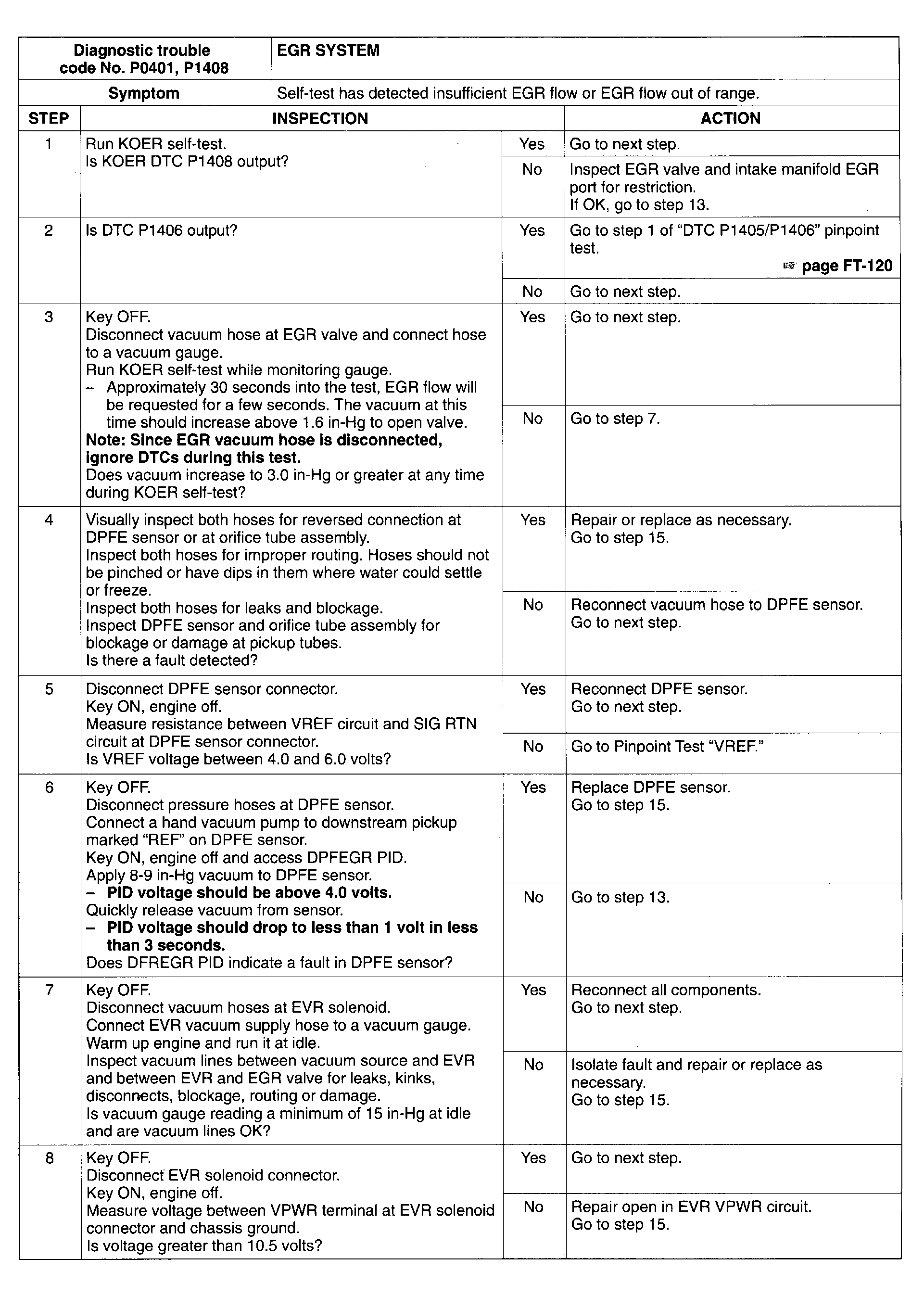

Fig 1: DTC P0401 & P1408 EGR System Malfunction (1 OF 2)

G96J11139

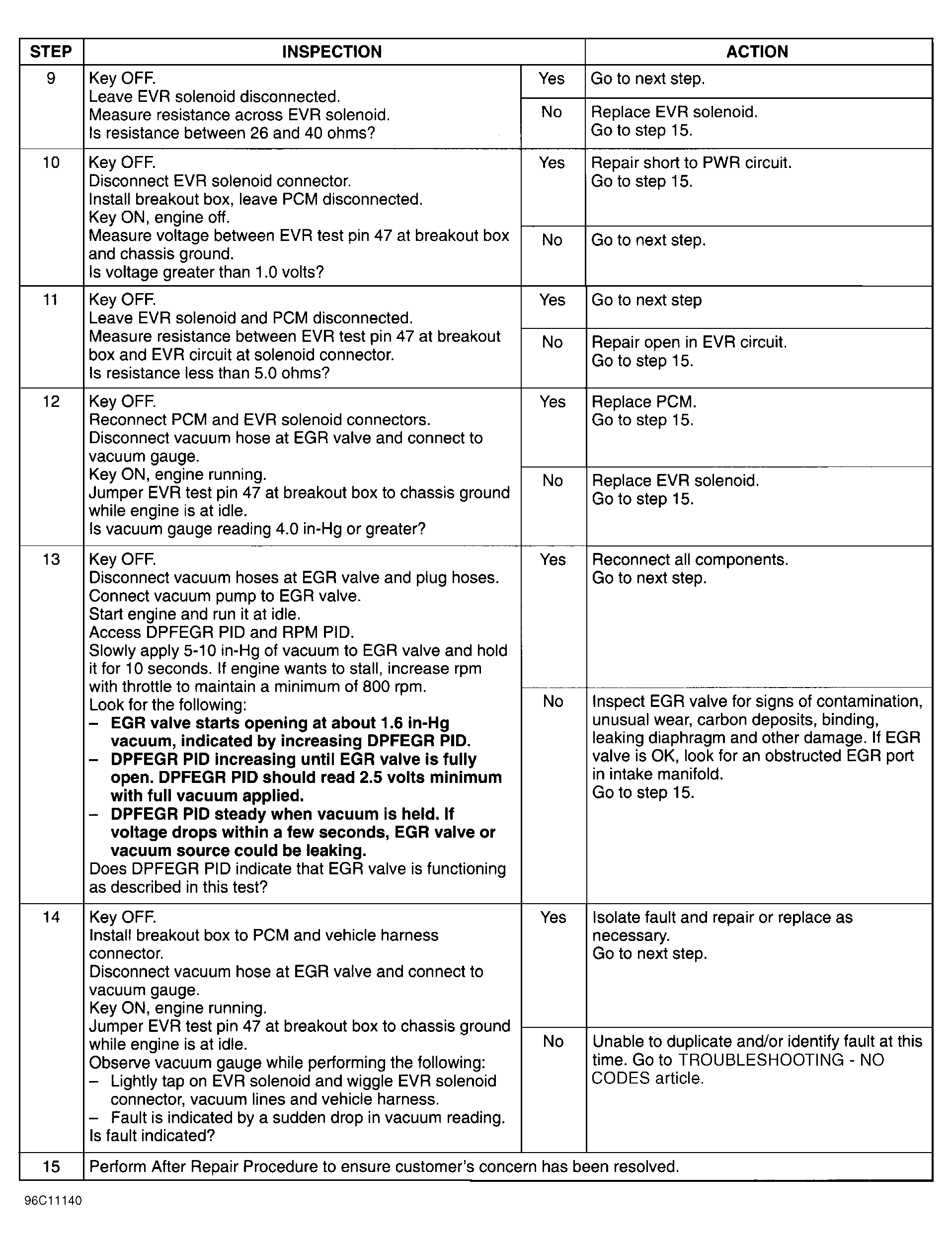

Fig 2: DTC P0401 & P1408 EGR System Malfunction (2 OF 2)

G96C11140
