DTC P0340: Camshaft Position Sensor Circuit Malfunction

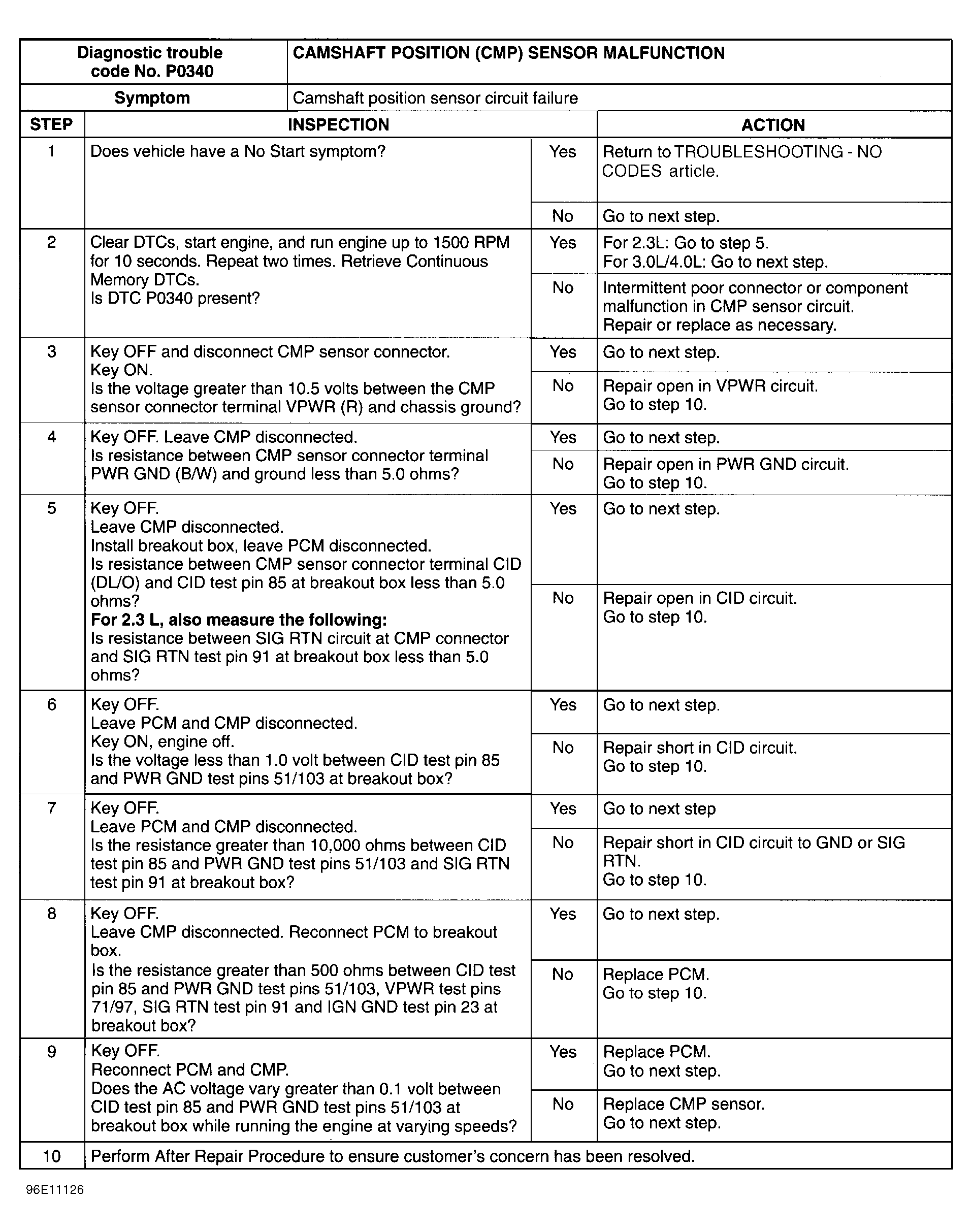

Fig 1: DTC P0340 CPS CIRCUIT Malfunction

G96E11126

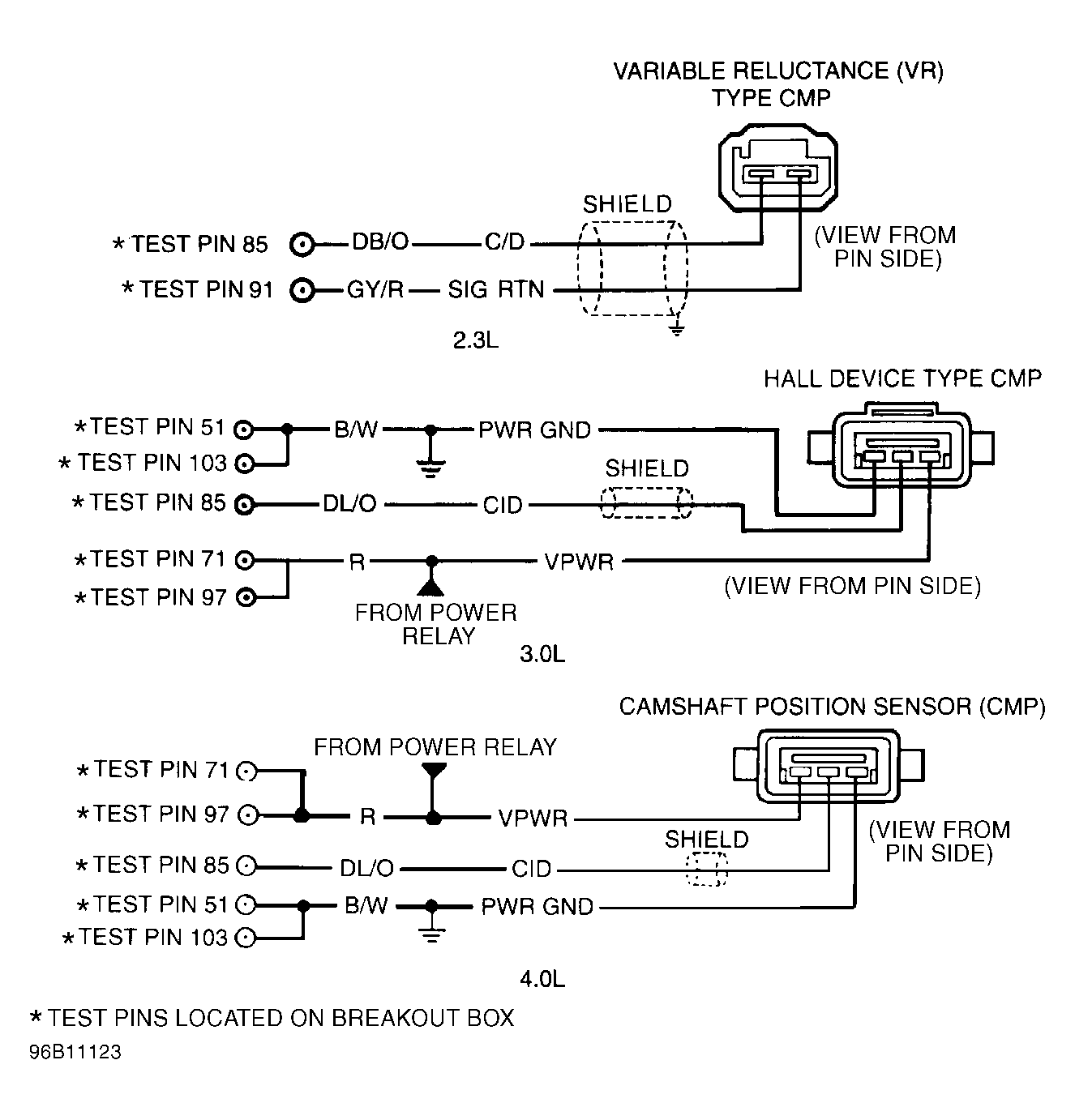

Fig 2: CMP Sensor CIRCUIT Diagram

G96B11123
