Control Box & Actuator Assembly: Reassembly

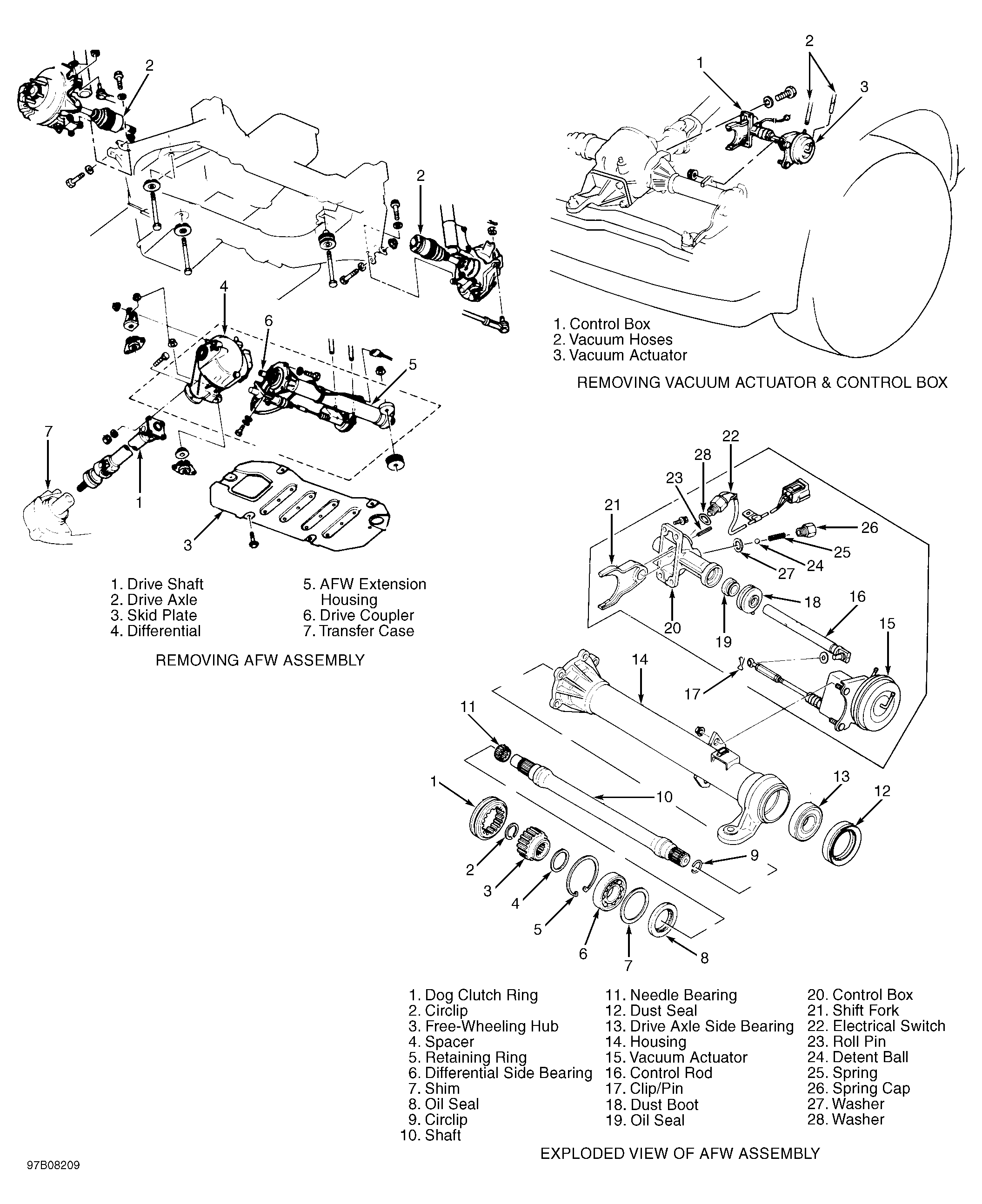

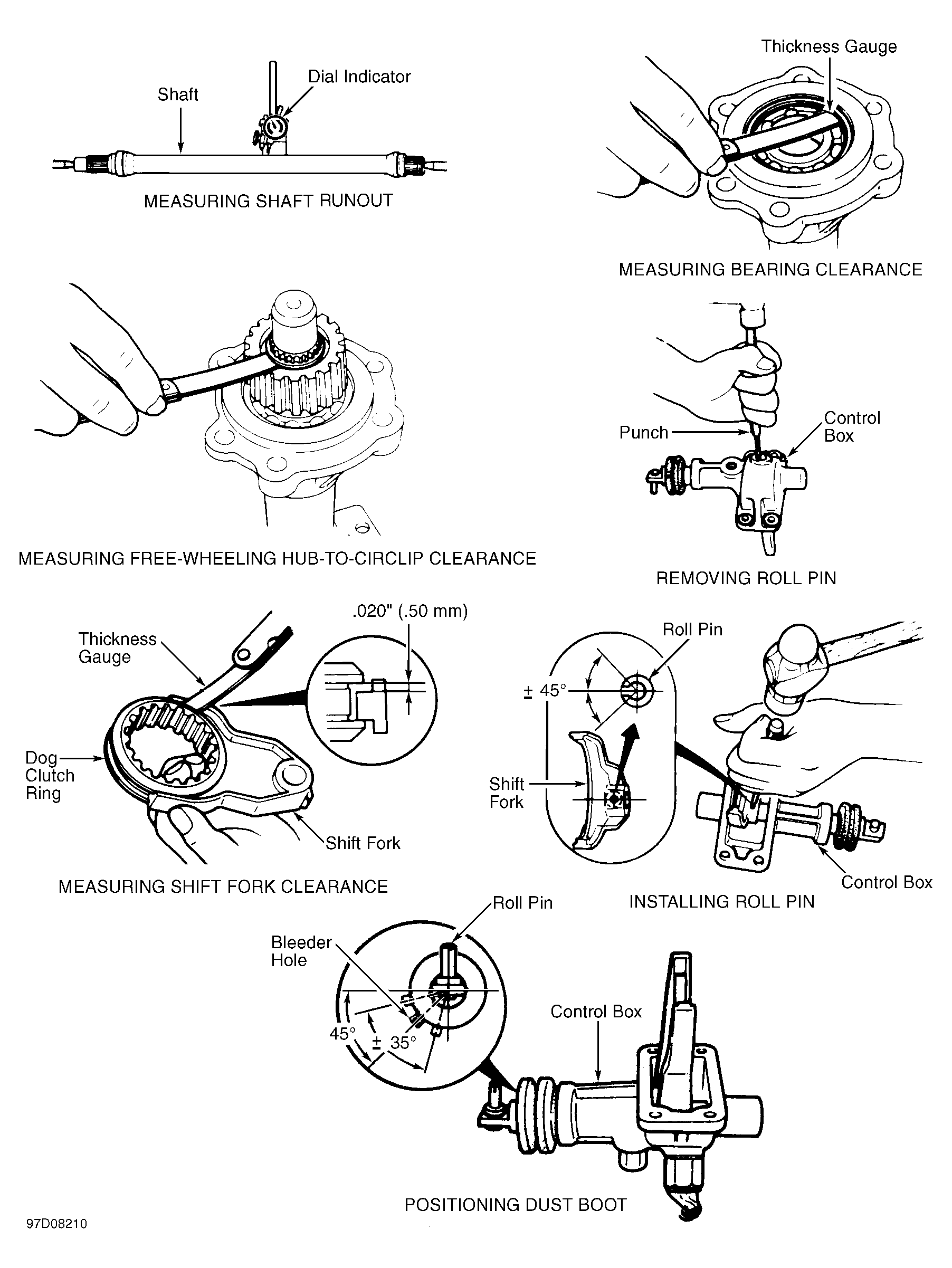

Using Oil Seal Installer (49-U027-007), press NEW oil seal into housing. Install control rod dust boot on housing. See Figure . Position shift fork in housing and install control rod. Using a punch and hammer, install NEW roll pin into shift fork. See Figure . To complete reassembly, reverse disassembly procedure. Ensure dust boot position is correct. See Figure .
