Codes P0703 & P1703: Brake On/Off Switch Circuit Malfunction

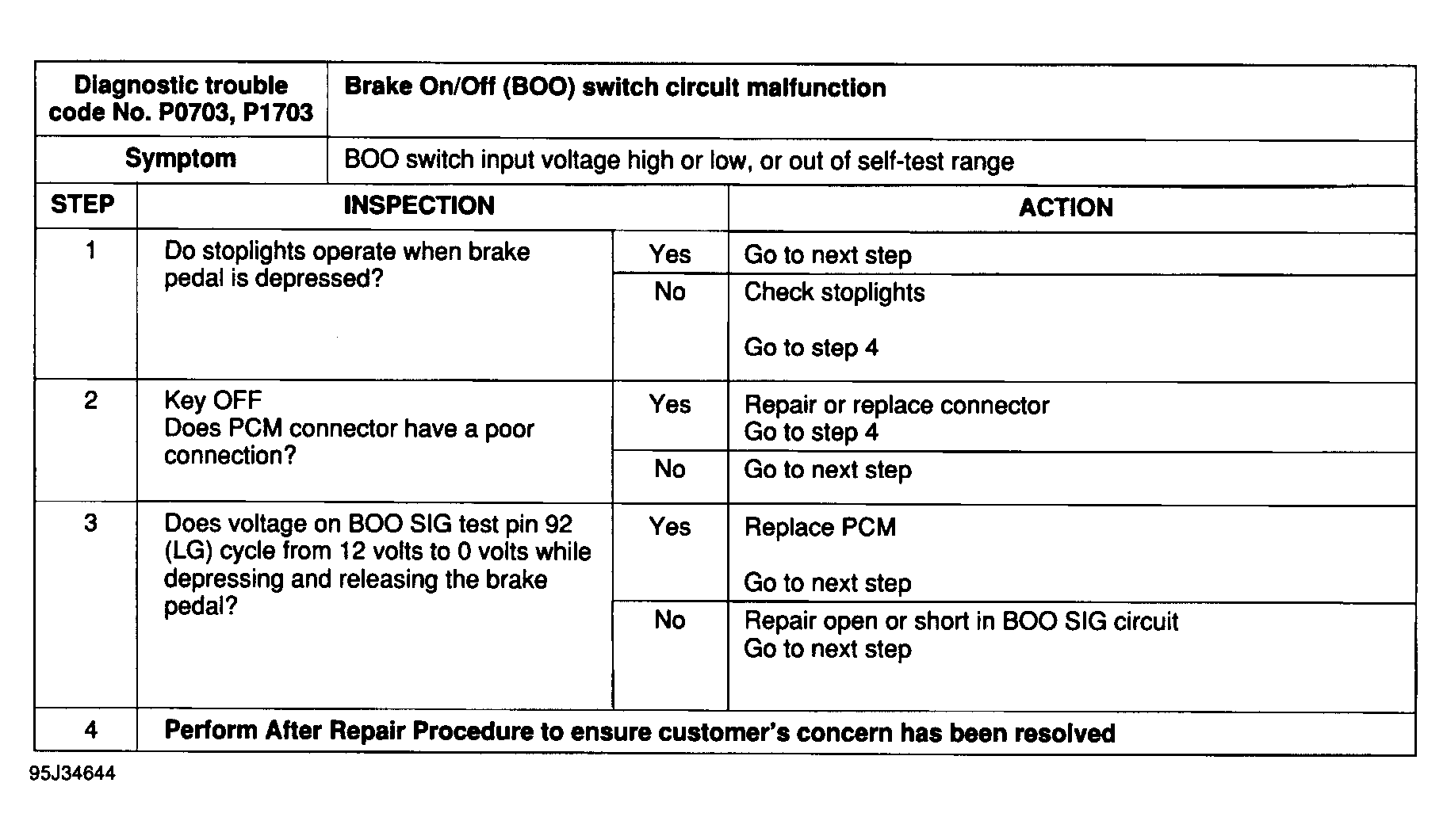

Fig 1: Trouble Codes No. P0703 & P1703 Brake ON/OFF Switch Circuit Malfunction
G95J34644
Fig 2: Trouble Codes No. P0703 & P1703 Brake ON/OFF (BOO) Switch Circuit Diagram
G95A34645
