Codes P0401 & P1407: Exhaust Gas RECIRCULATION System Malfunction
Codes P0401 & P1407: Exhaust Gas RECIRCULATION System Malfunction

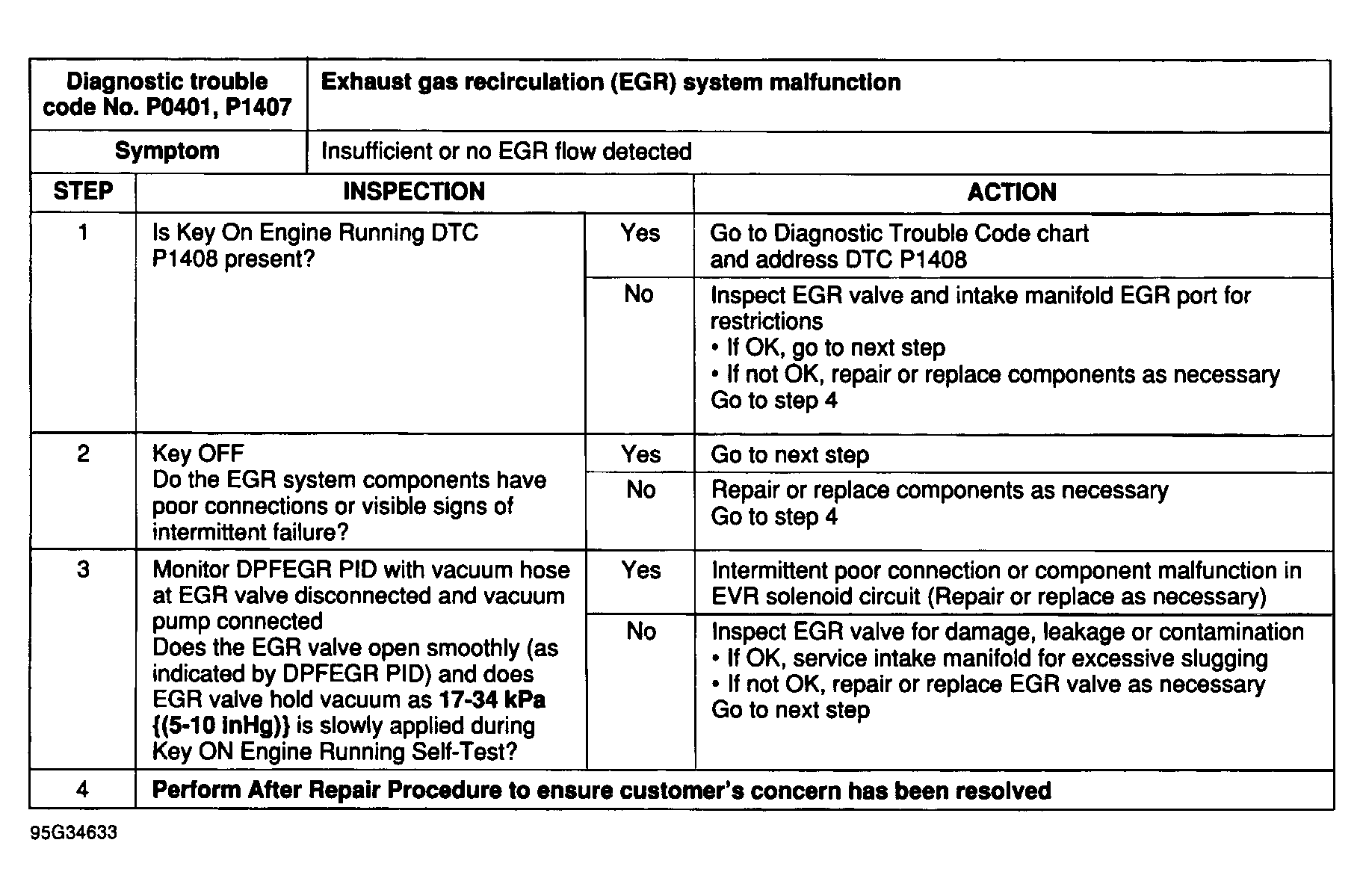

Fig 1: Trouble Codes No. P0401 & P1407 Exhaust Gas Recirculation System Malfunction
