Codes P0112, P0113 & P1112: Intake Air Temperature Sensor Circuit Malfunction

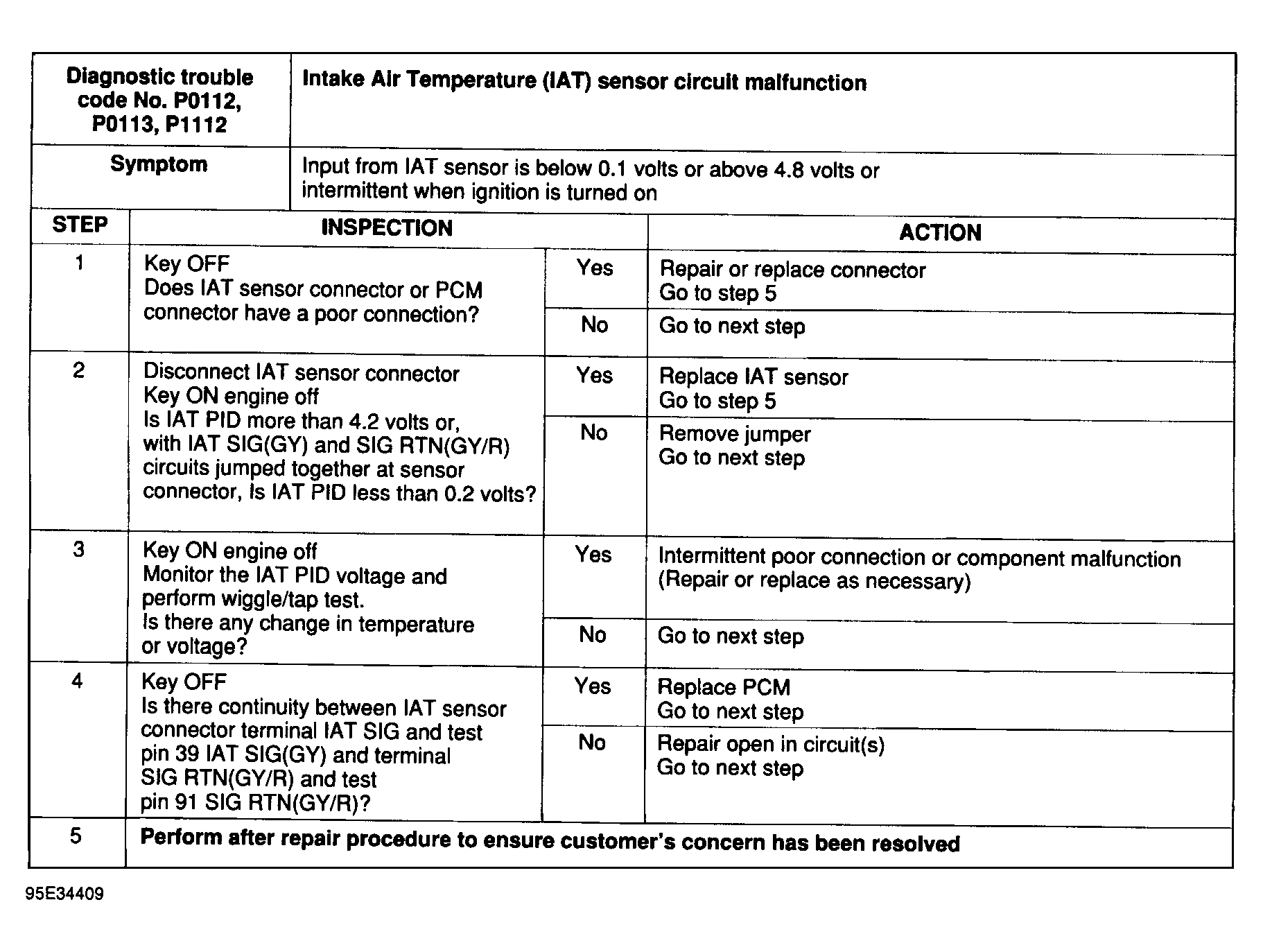

Fig 1: Trouble Codes No. P0112, P0113 & P1112 Intake Air Temperature Sensor Circuit Malfunction
G95E34409
Fig 2: Trouble Codes No. P0112, P0113 & P1112 Intake Air Temperature - IAT) Sensor & Engine Coolant Temperature (ECT) Sensor Circuit Diagram
G95H34410
