CODES P0505 & P1507: Idle Air Control System Circuit Malfunction

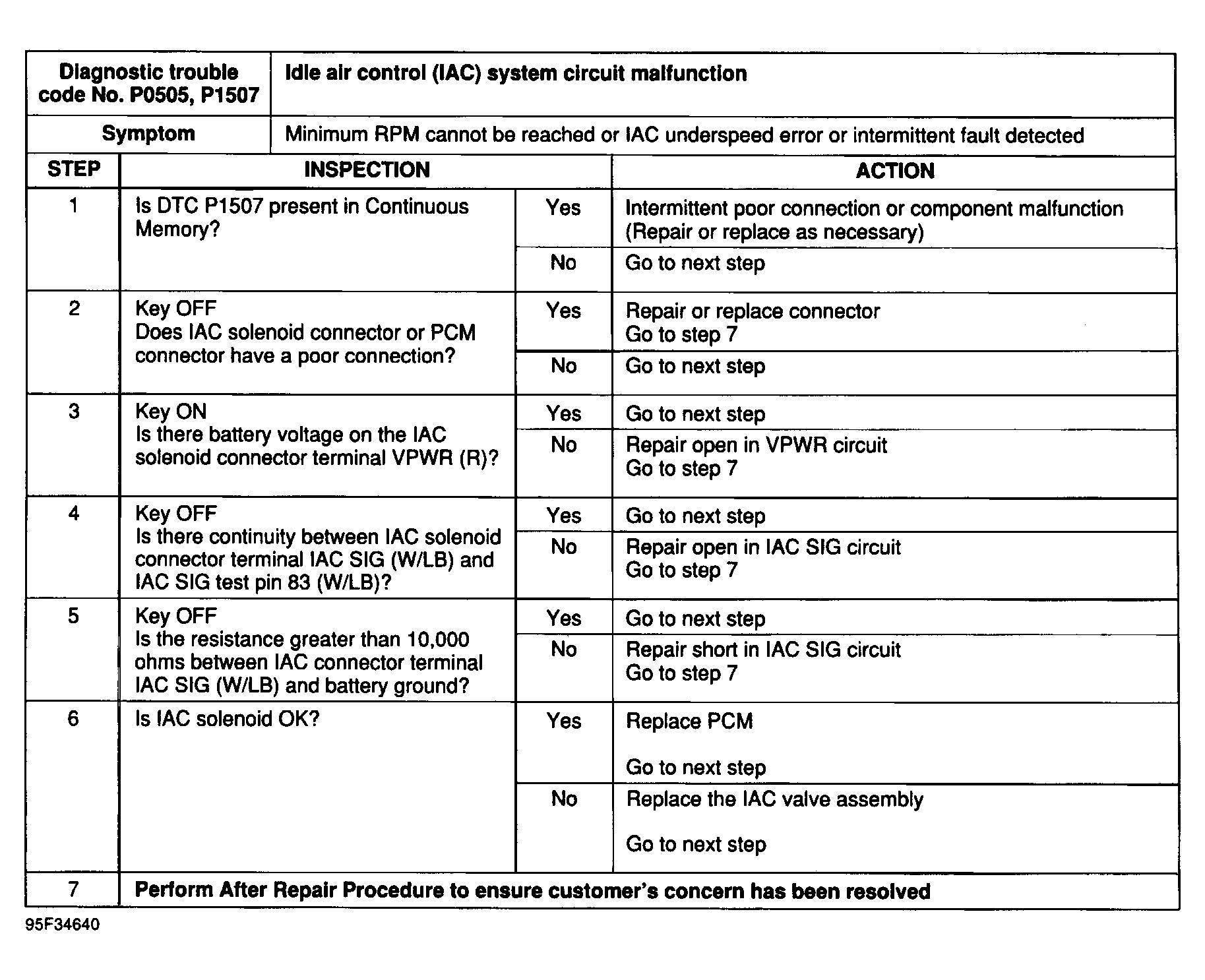

Fig 1: Trouble Codes No. P0505 & P1507 Idle Air Control System Circuit Malfunction
G95F34640
Fig 2: Trouble Codes No. P0505 & P1507 Idle Air Control (IAC) Solenoid Circuit Diagram
G95G34641
