Code 3: (Crankshaft Position Sensor - G Signal)

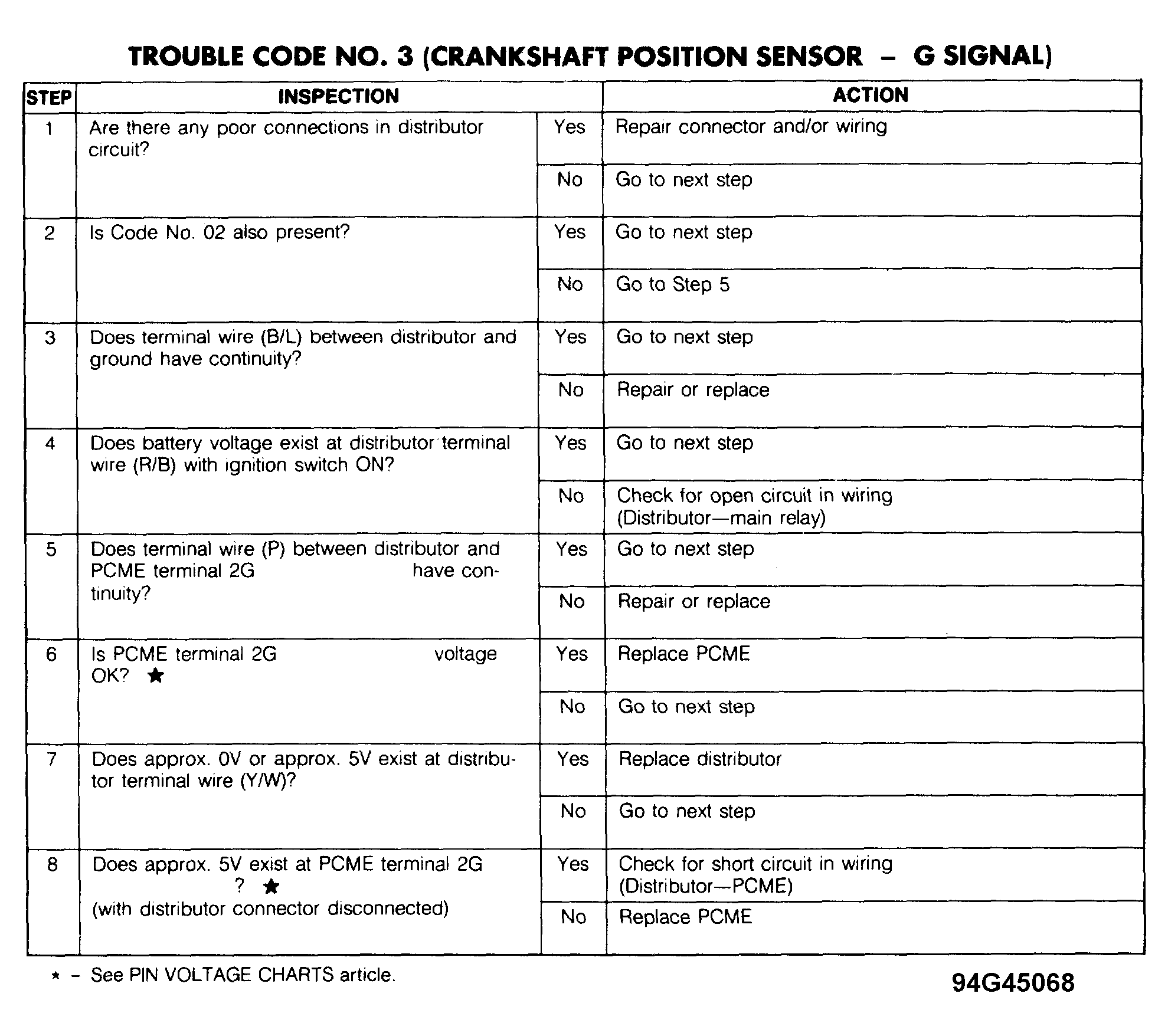

Fig 1: Trouble Code No. 3 Diagnostic Chart (Crankshaft Position Sensor - G Signal)
G94G45068

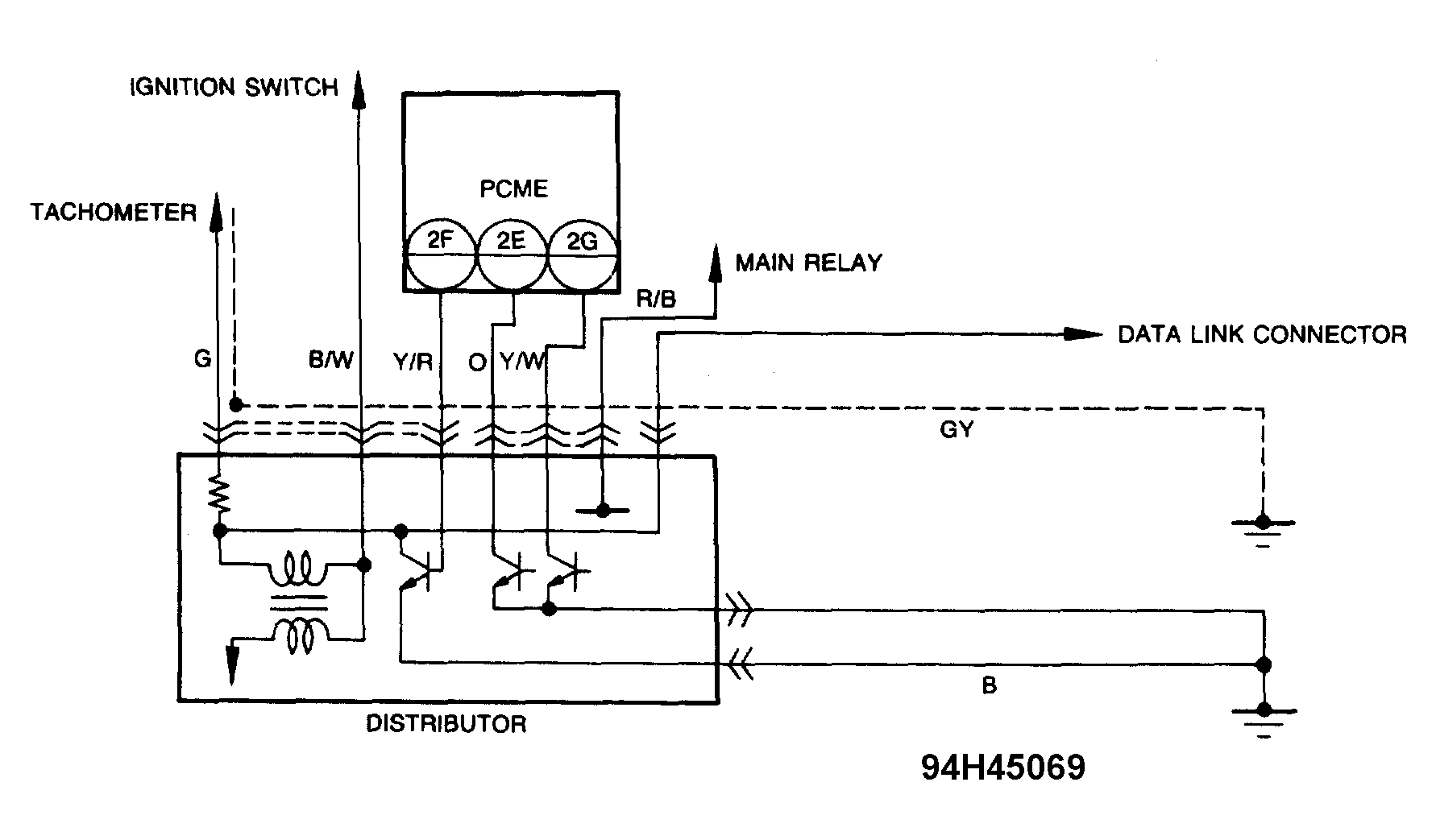

Fig 2: Trouble Code No. 3 Schematic (Crankshaft Position Sensor - G Signal)
G94H45069
