Code 28: (Solenoid Valve - EGR Control)

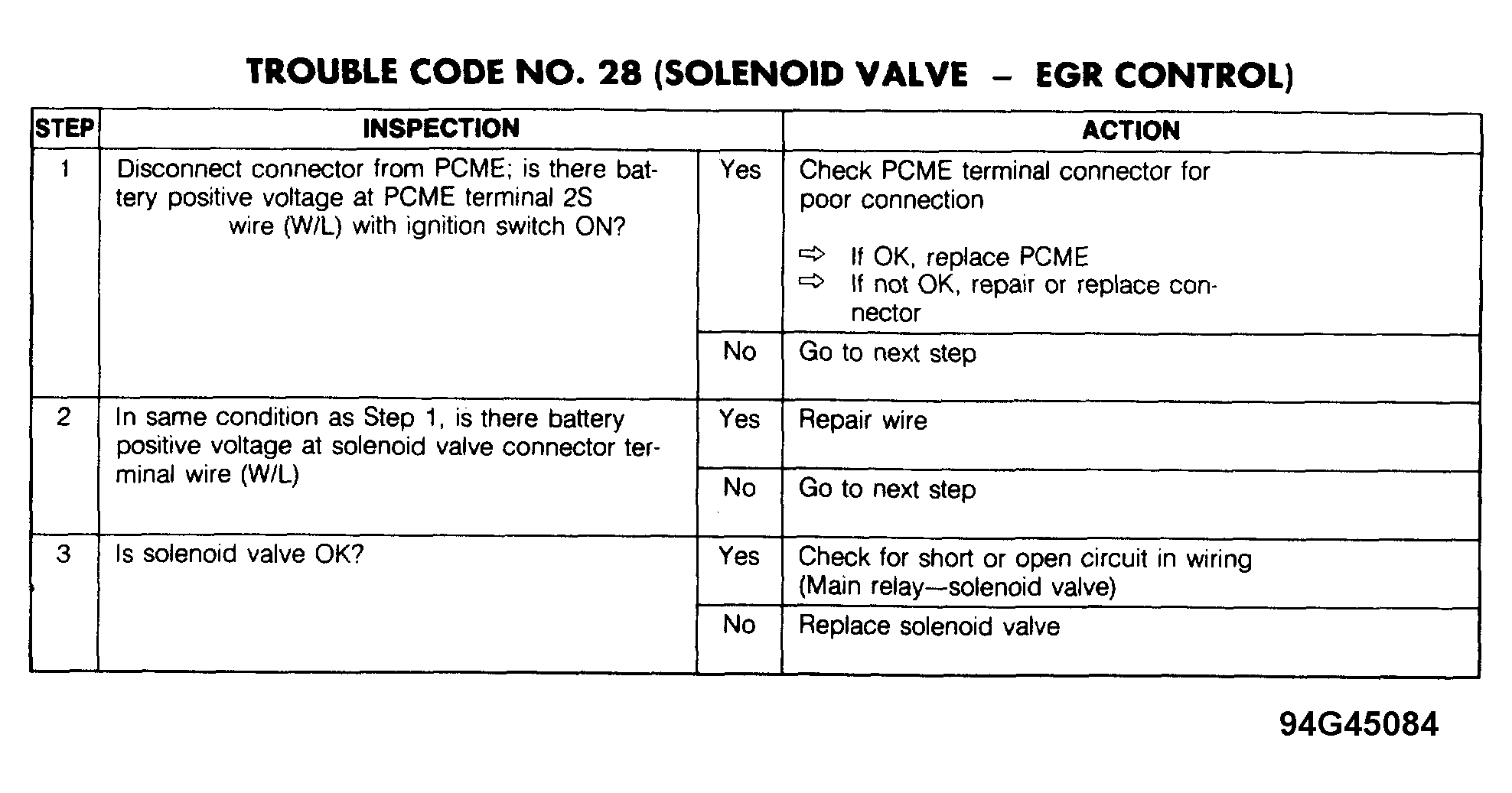

Fig 1: Trouble Code No. 28 Diagnostic Chart; (Solenoid Valve - EGR Control)

G94G45084
