Code 26: (Solenoid Valve - Purge Control)
Code 26: (Solenoid Valve - Purge Control)

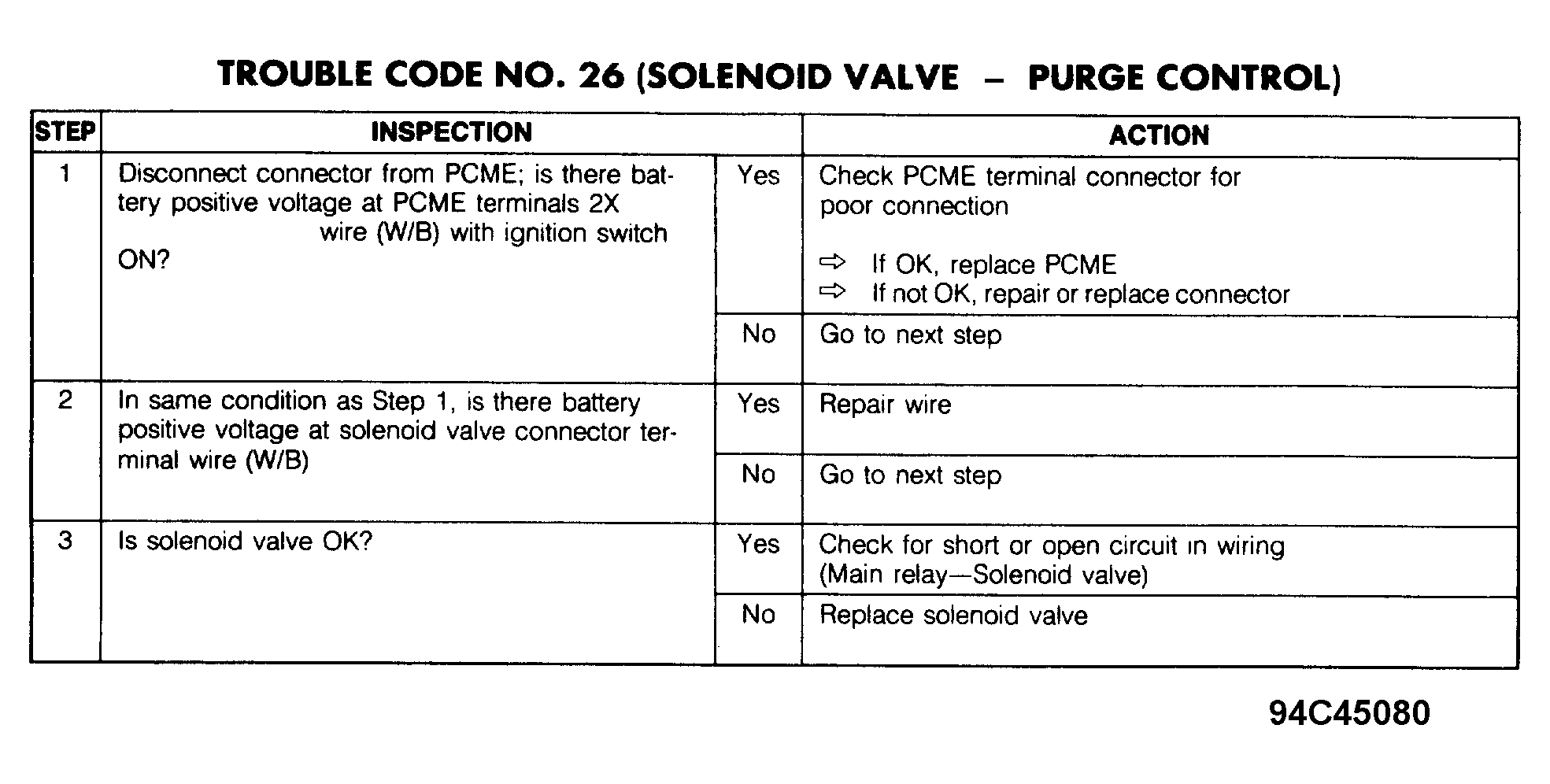

Fig 1: Trouble Code No. 26 Diagnostic Chart (Solenoid Valve - Purge Control)
Fig 2: Trouble Code No. 26 Schematic (Solenoid Valve - Purge Control)
