Code 15 & 23: (Heated Oxygen Sensor)

Fig 1: Trouble Code No. 15 & 23 Diagnostic Chart (Heated Oxygen Sensor )
G92I25047Courtesy of MAZDA MOTORS CORP.

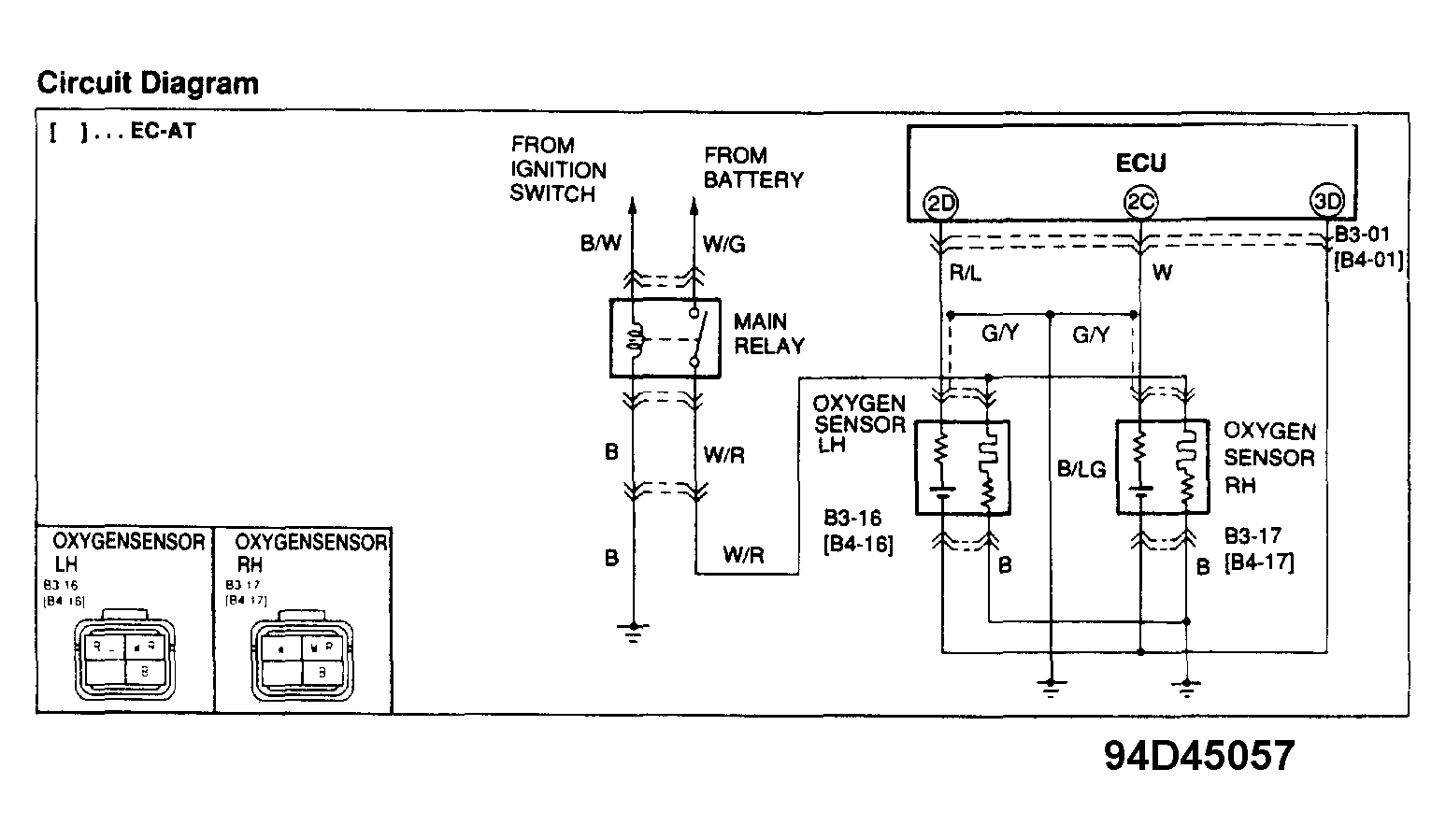

Fig 2: Trouble Code No. 15 & 23 Circuit Diagram
G94D45057Courtesy of MAZDA MOTORS CORP.
