Control Unit Check

Remove first rear seat and rear side trim panel. Using voltmeter, backprobe control unit connector terminals. Check voltage at each connector terminal. See Fig 1.

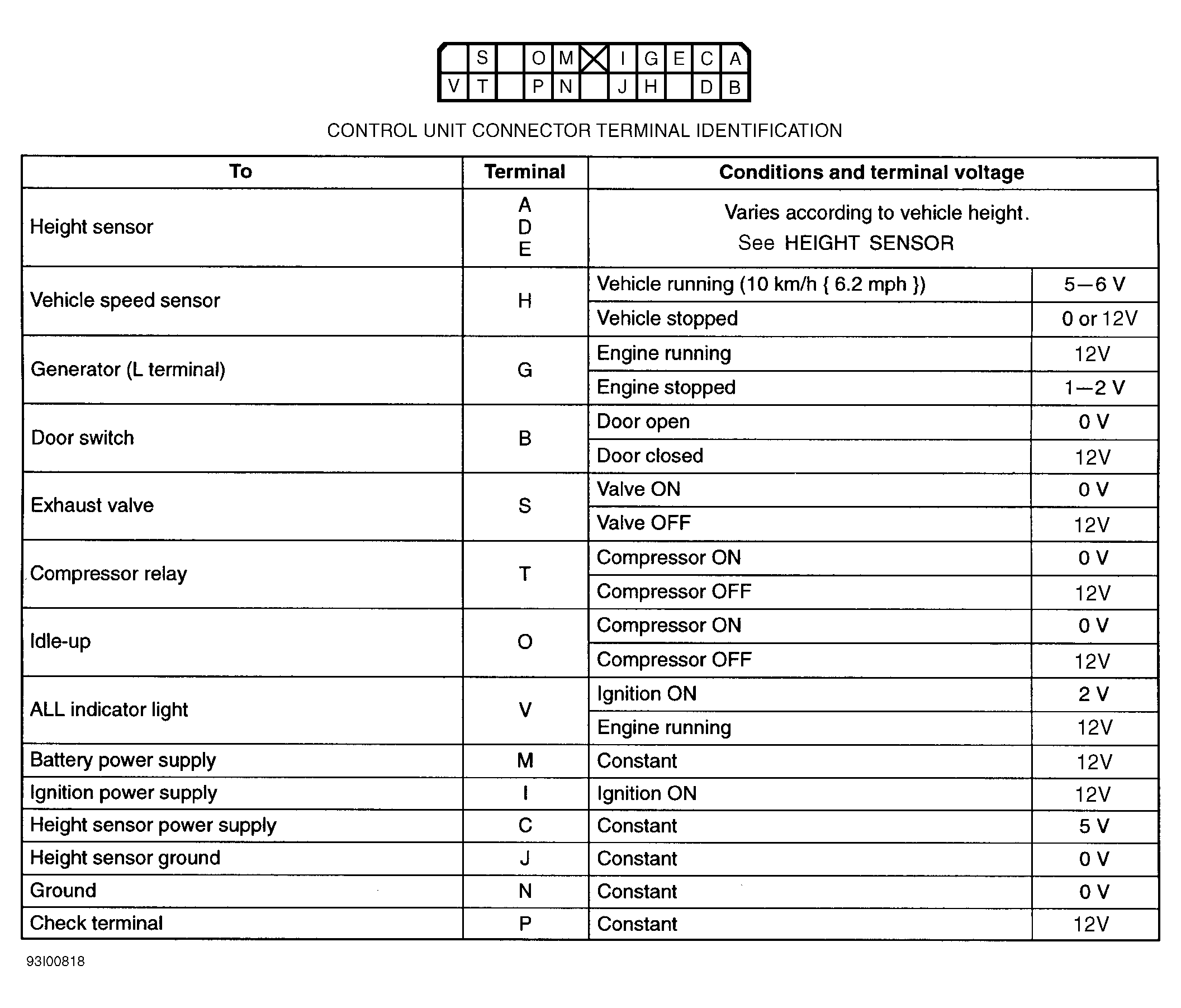

Fig 1: Control Unit Connector Terminal Voltage Specifications
G93I00818
