Code 33: (Solenoid Valve - Port Air By-Pass)

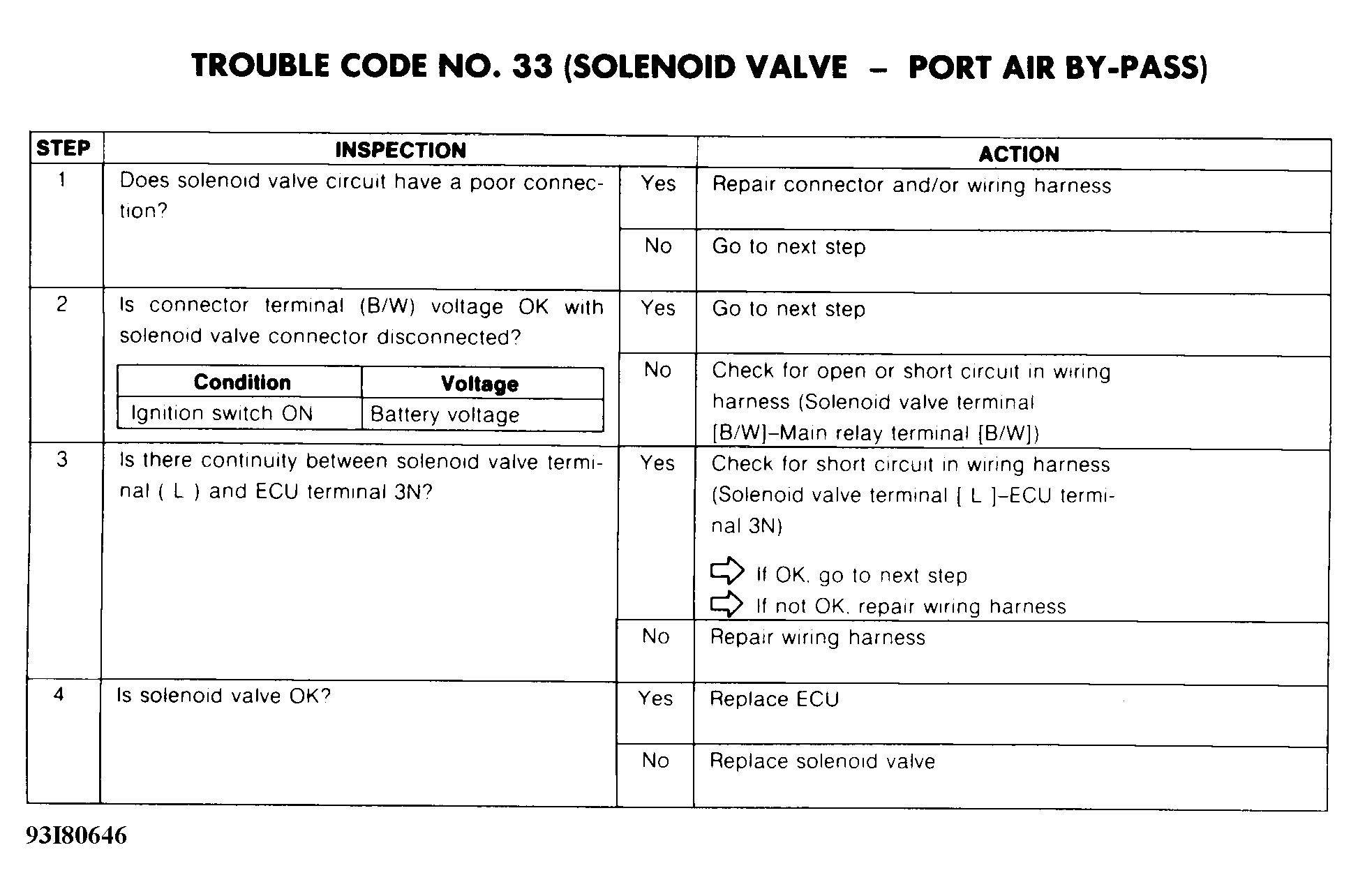

Fig 1: Trouble Code No. 33 - Diagnostic Flowchart

G93I80646

Courtesy of MAZDA MOTORS CORP.

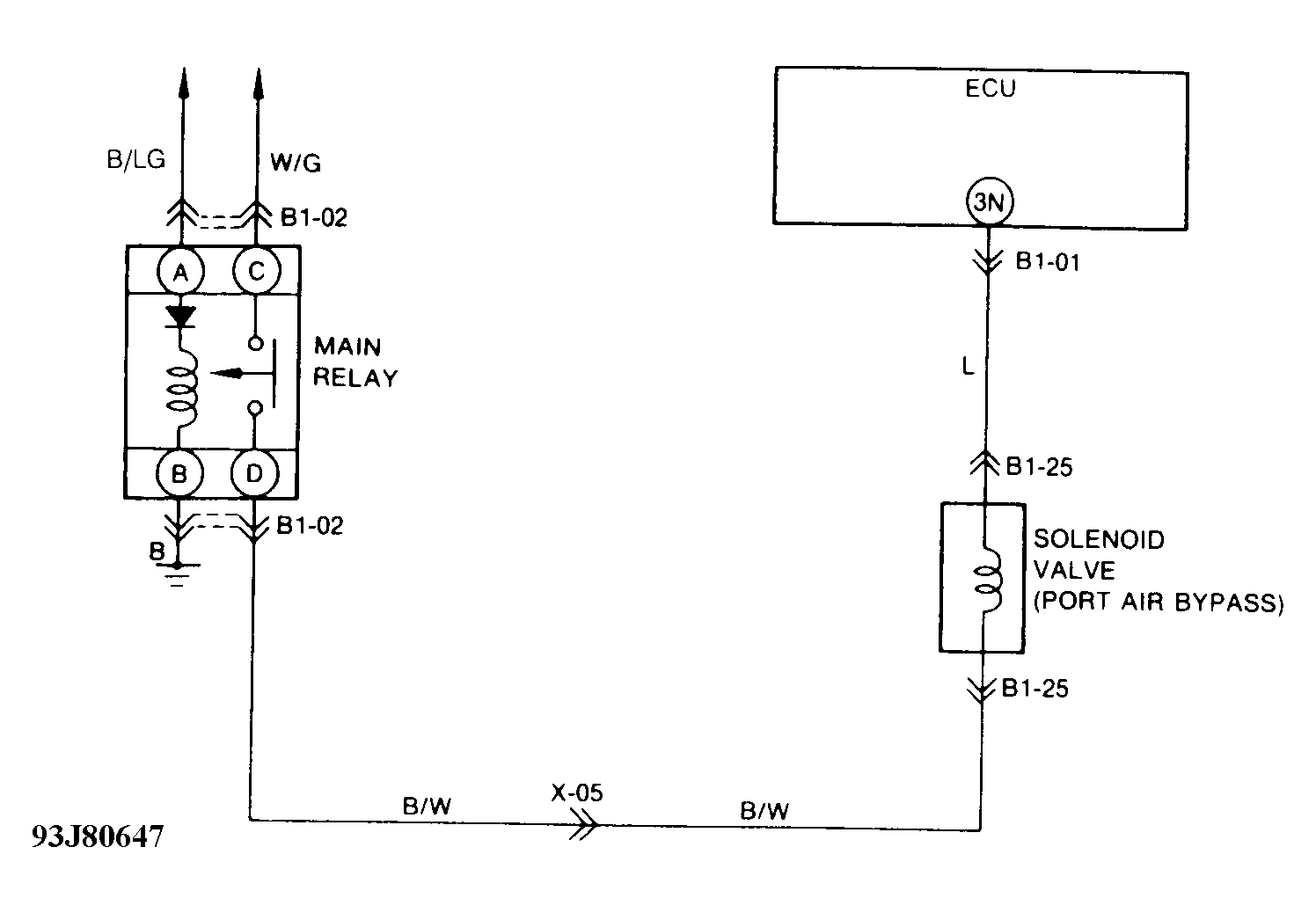

Fig 2: Trouble Code No. 33 - Schematic

G93J80647

Courtesy of MAZDA MOTORS CORP.
