Codes 17 & 24: (Feedback System)

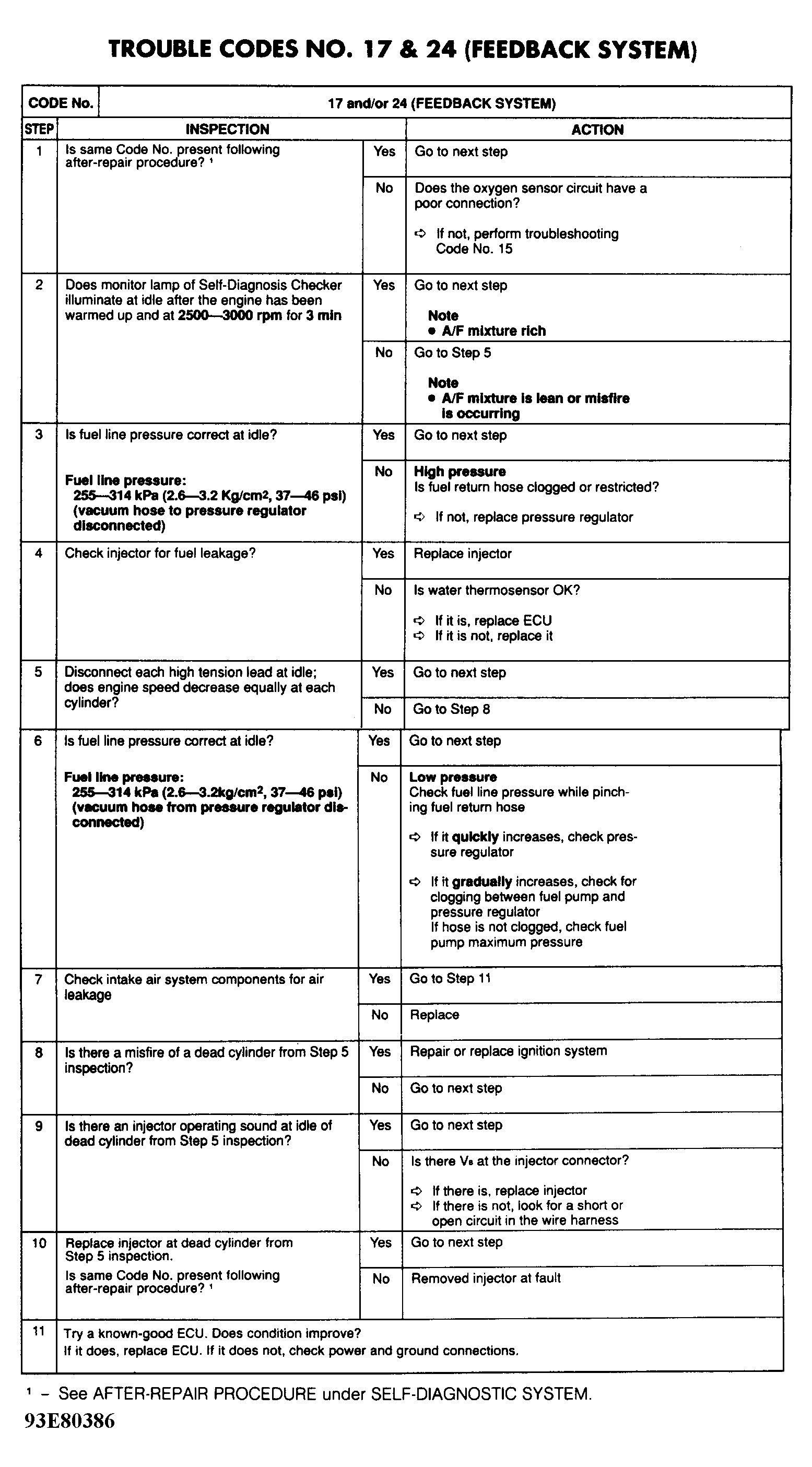

Fig 1: Trouble Codes No. 17 & 24 - Diagnostic Flowchart

G93E80386

Courtesy of MAZDA MOTORS CORP.
