Code 29: (EGR Vent Valve Solenoid)

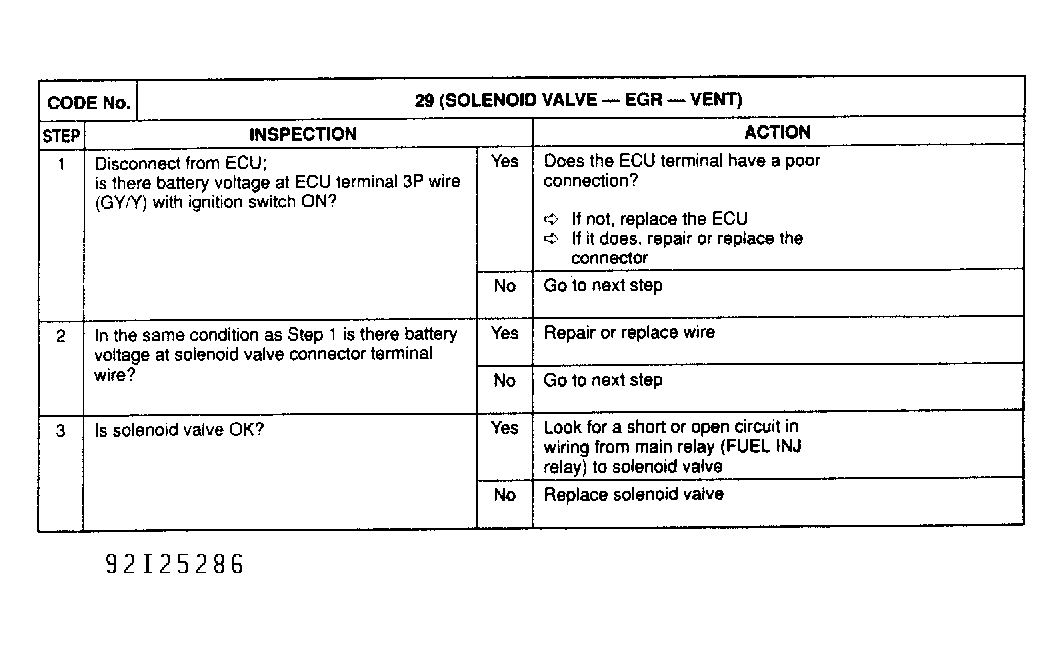

Fig 1: Trouble Code No. 29 - Diagnostic Flowchart

G92I25286

Courtesy of MAZDA MOTORS CORP.

Fig 2: Trouble Code No. 29 - Schematic

G92J25287

Courtesy of MAZDA MOTORS CORP.
