RFW Function Testing

NOTE: See Fig 1 -12 for RFW component function tests and shifting function diagrams.

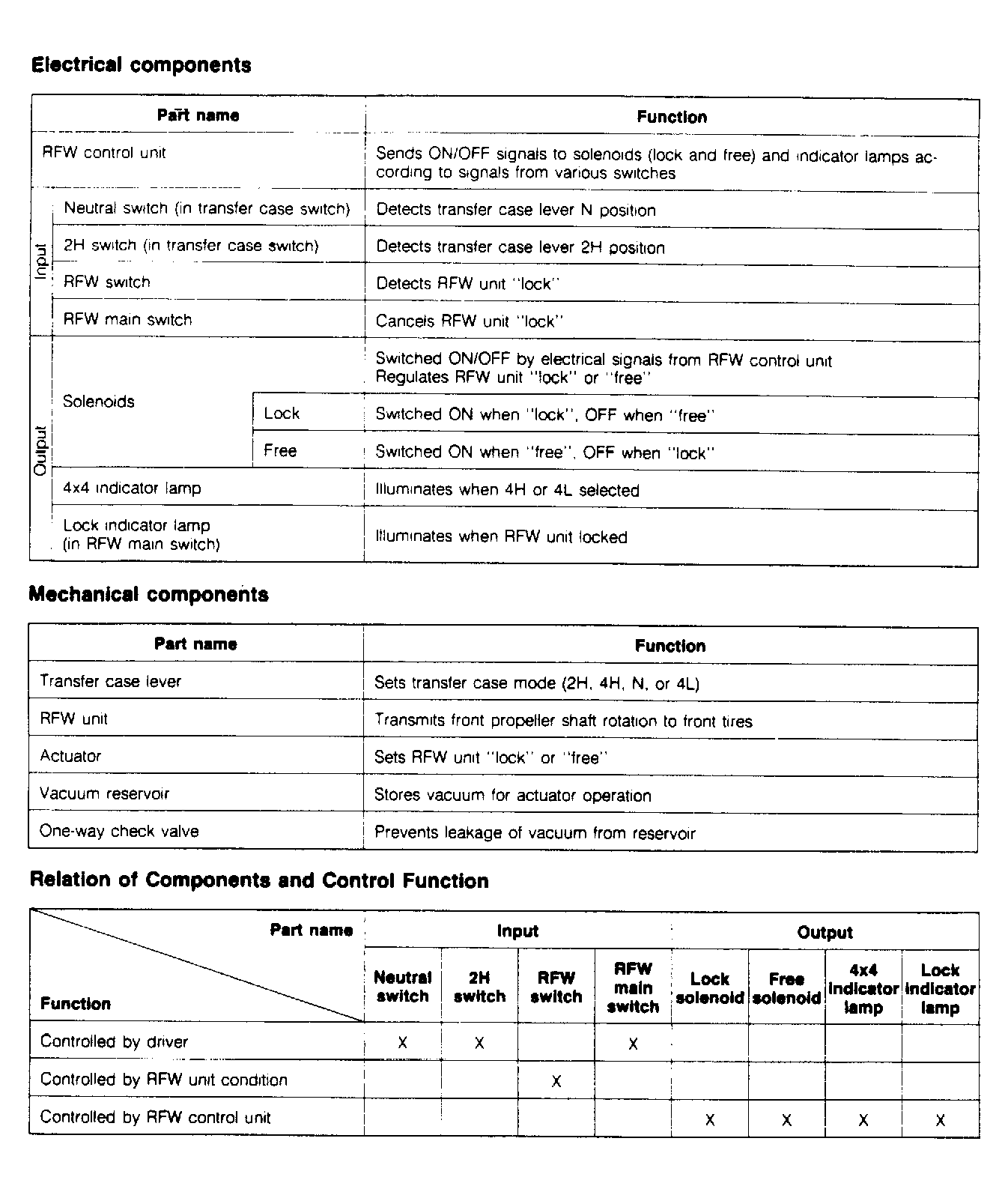

Fig 1: Checking Functions Of RFW Components

Courtesy of MAZDA MOTORS CORP.

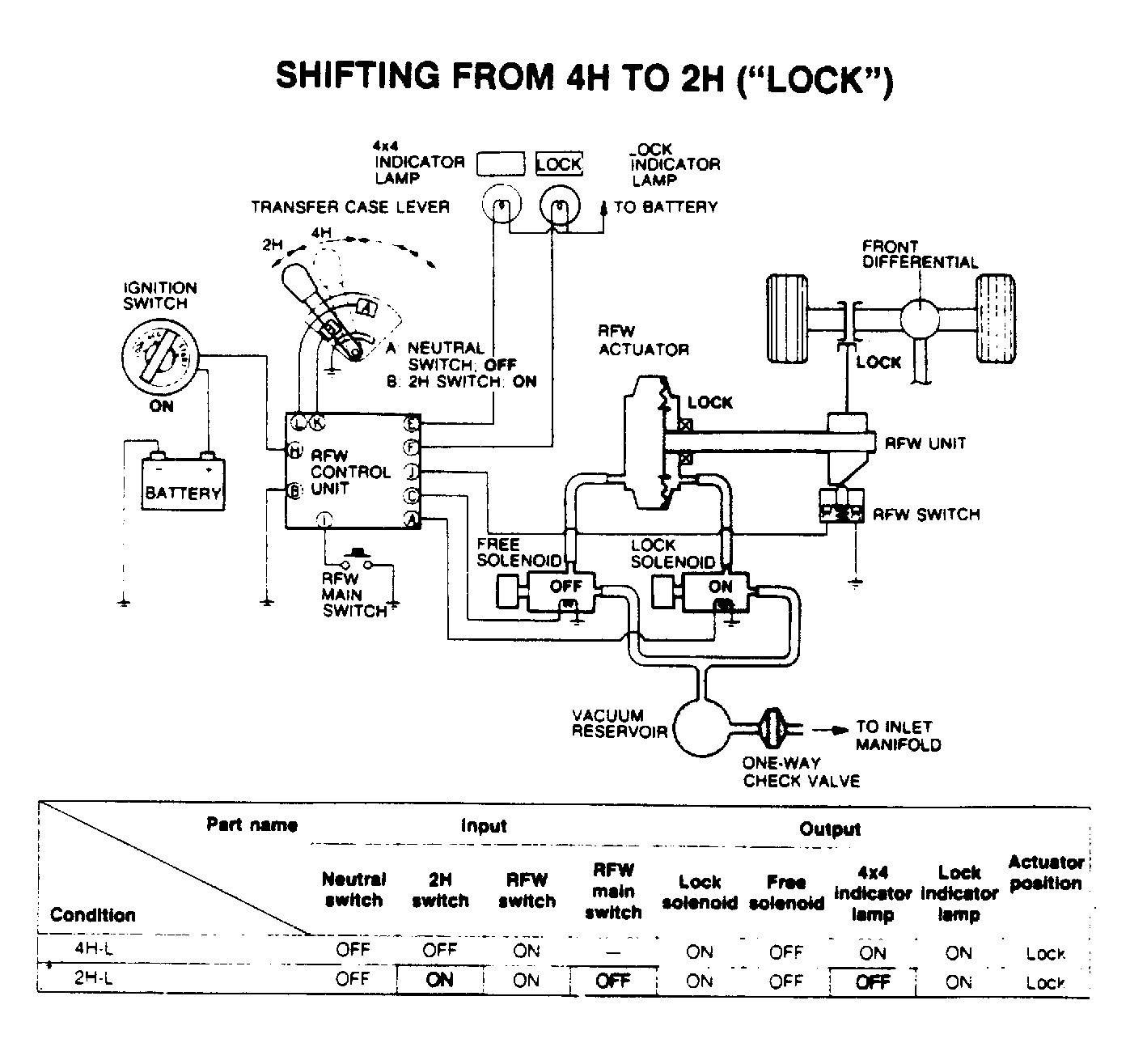

Fig 2: Shifting Function Diagrams (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

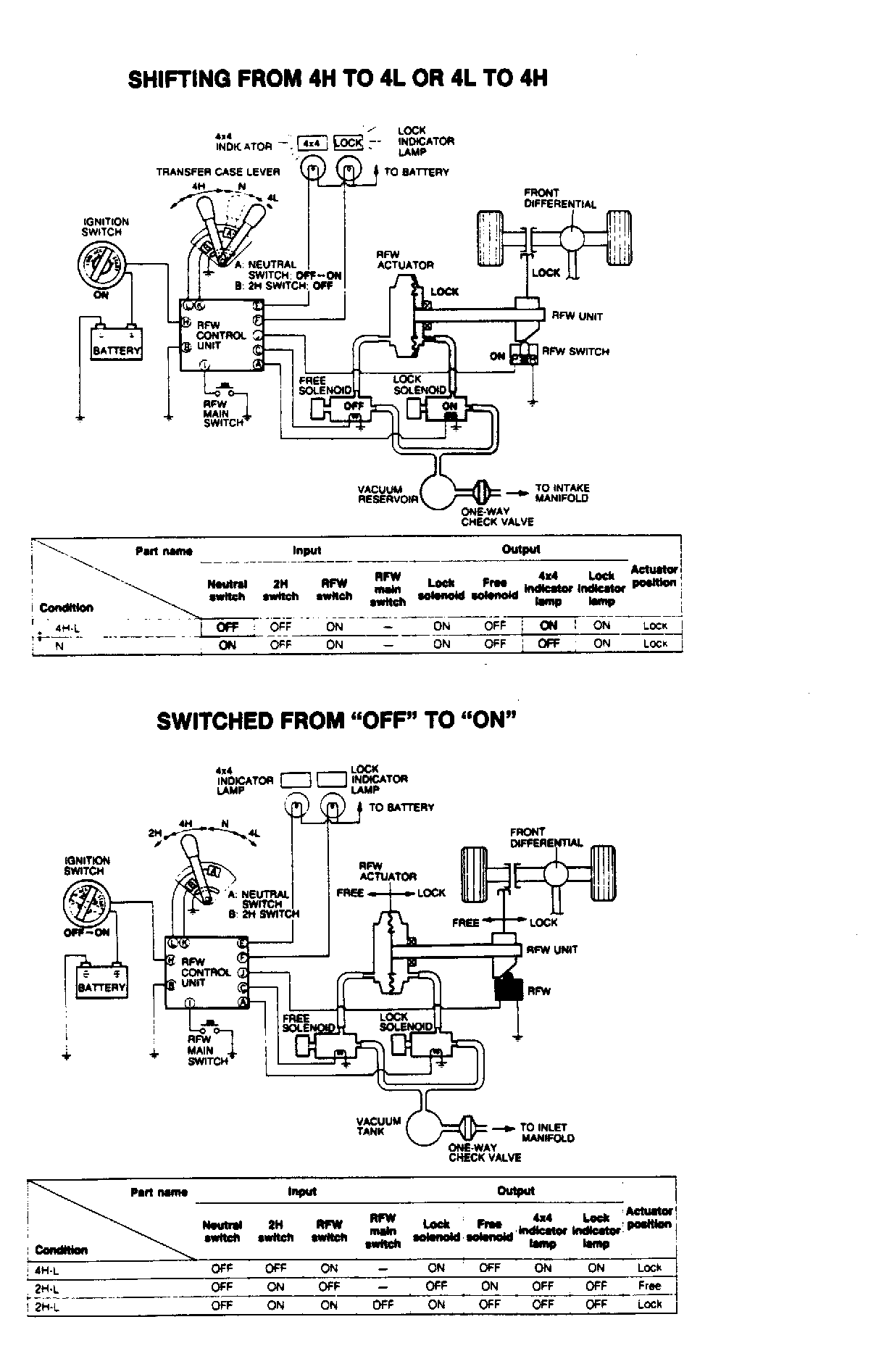

Fig 3: Shifting Function Diagrams (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

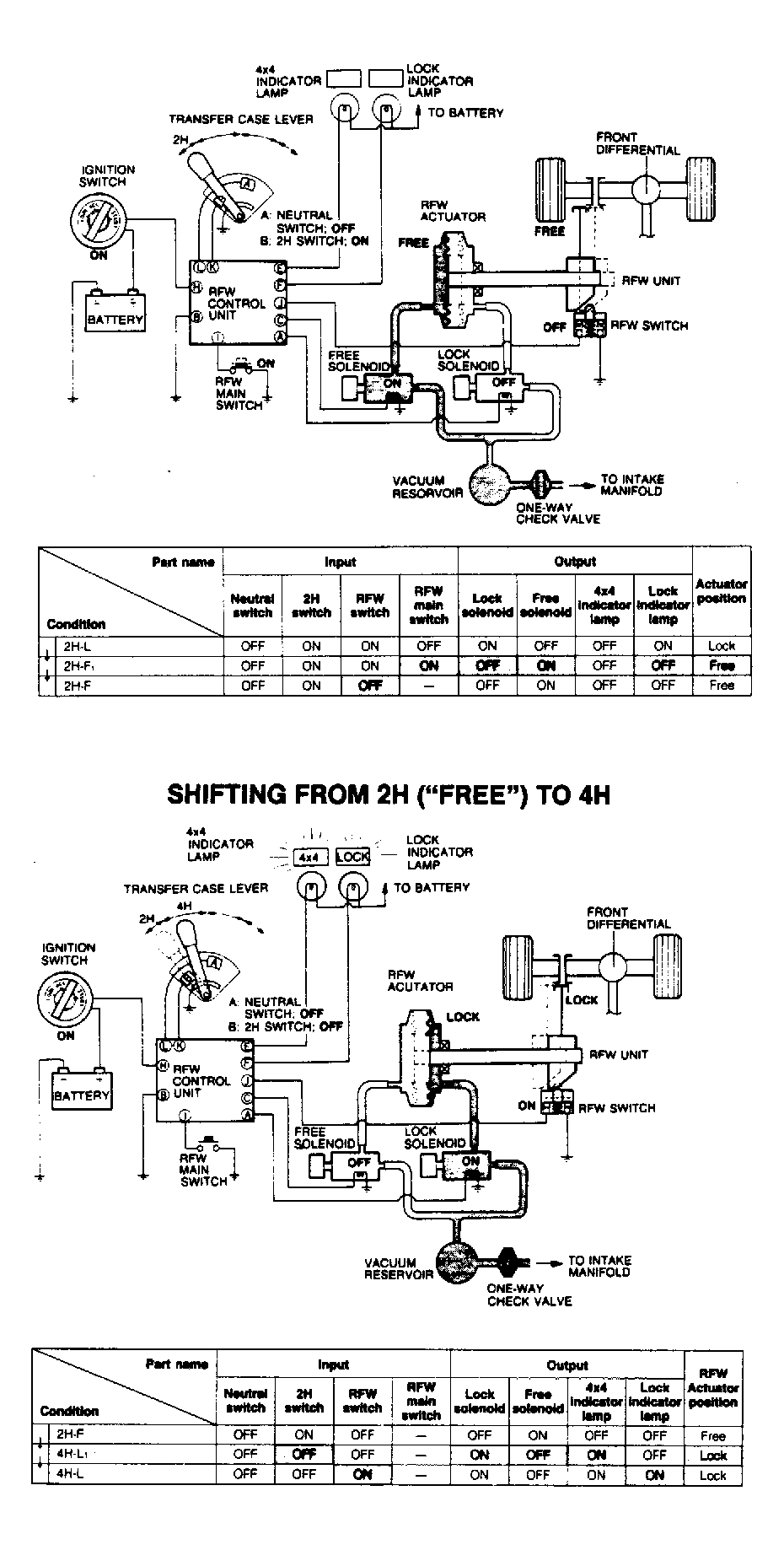

Fig 4: Shifting Function Diagrams (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
