Code 29: (Solenoid Valve, EGR Vent)

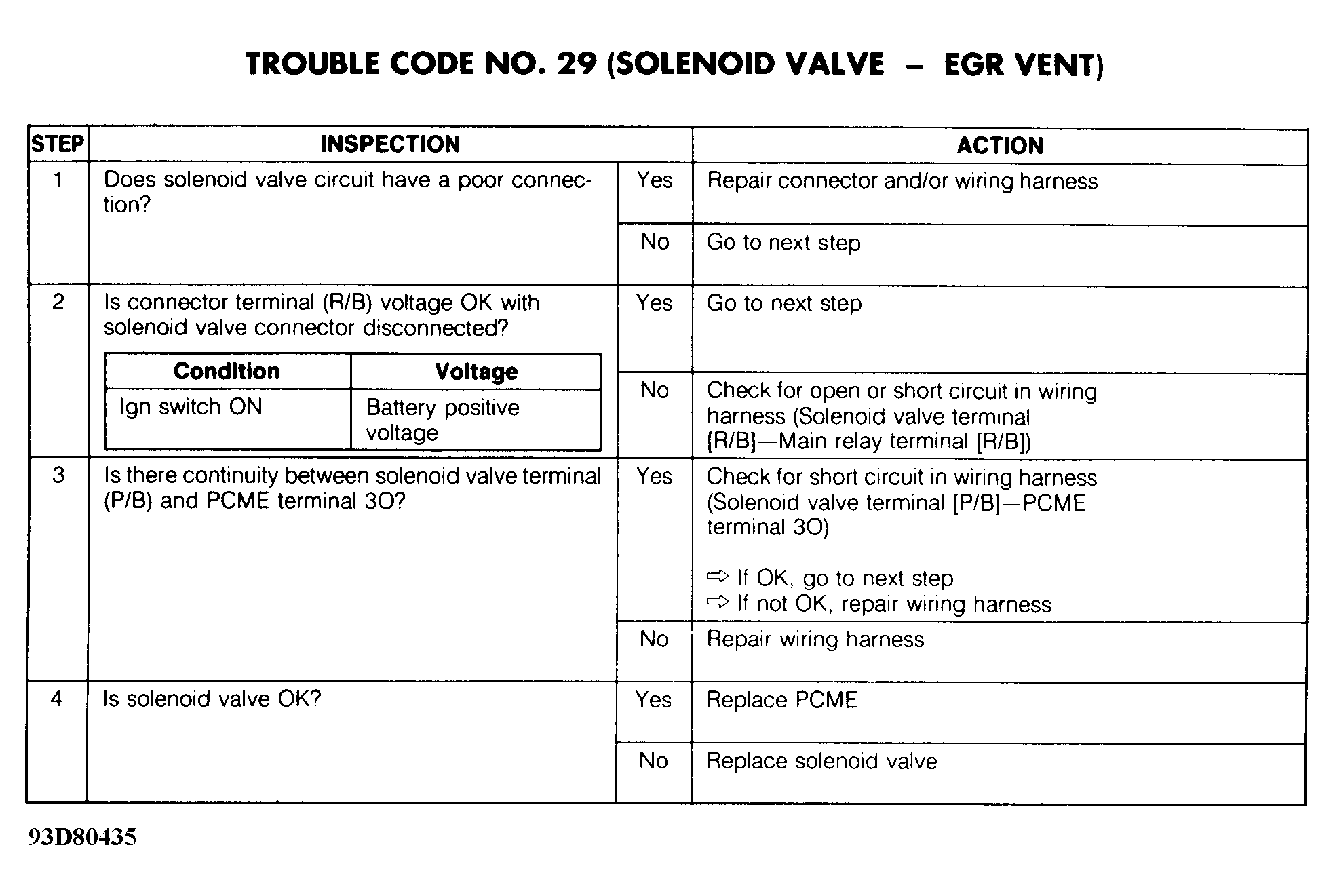

Fig 1: Trouble Code No. 29 - Diagnostic Flowchart

G93D80435

Courtesy of MAZDA MOTORS CORP.

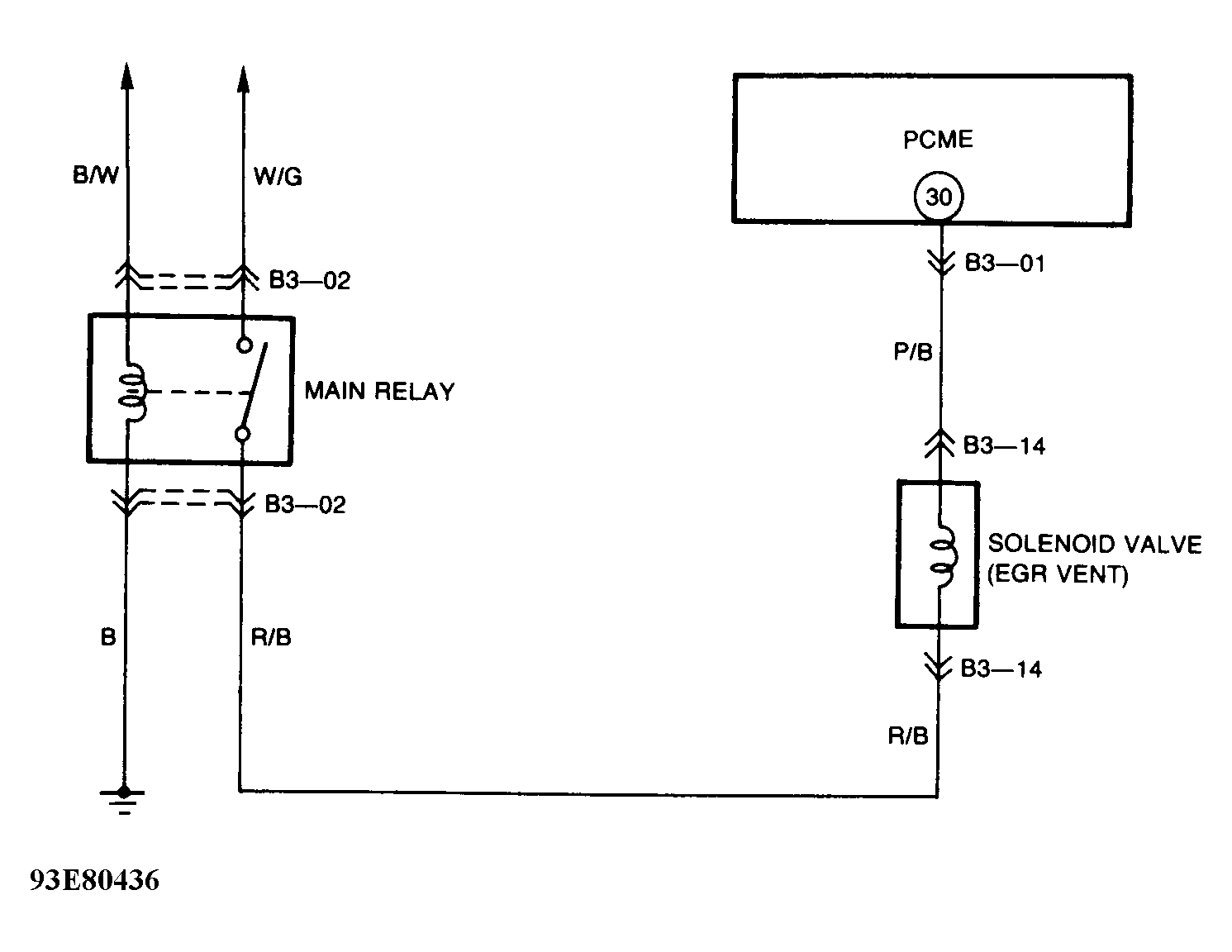

Fig 2: Trouble Code No. 29 - Schematic

G93E80436

Courtesy of MAZDA MOTORS CORP.
