Code 41: Variable Inertia Charging System DOHC Ex. MX-3

NOTE: The following Flow Chart is Courtesy of Mazda Motors Corp.

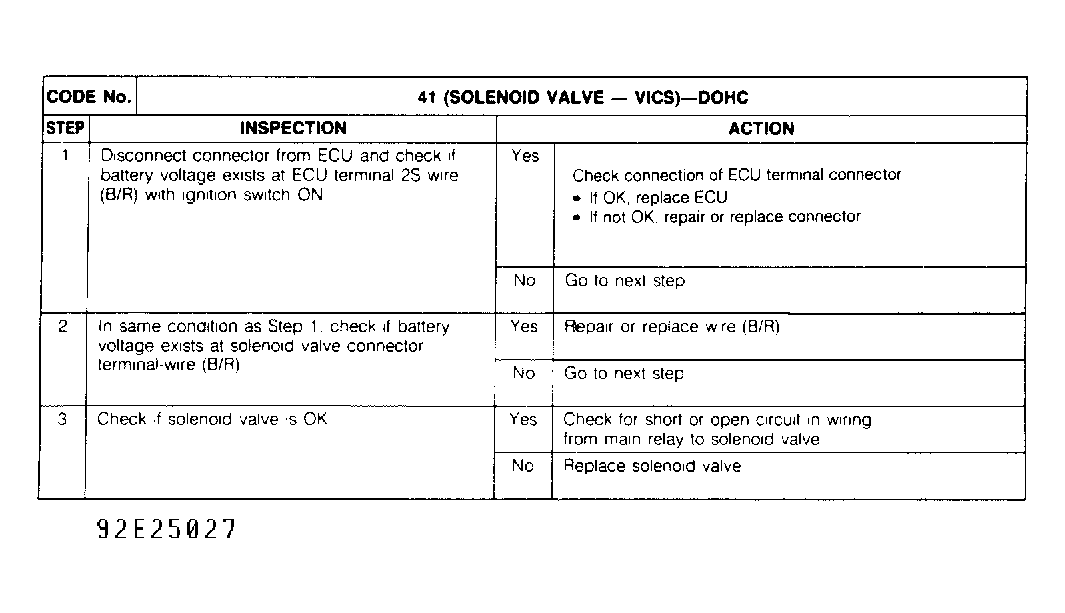

Fig 1: Trouble Code No. 41 Variable Inertia Charging System Dohc Ex. MX-3

G92E25027
