Connector Identification
Connector Identification

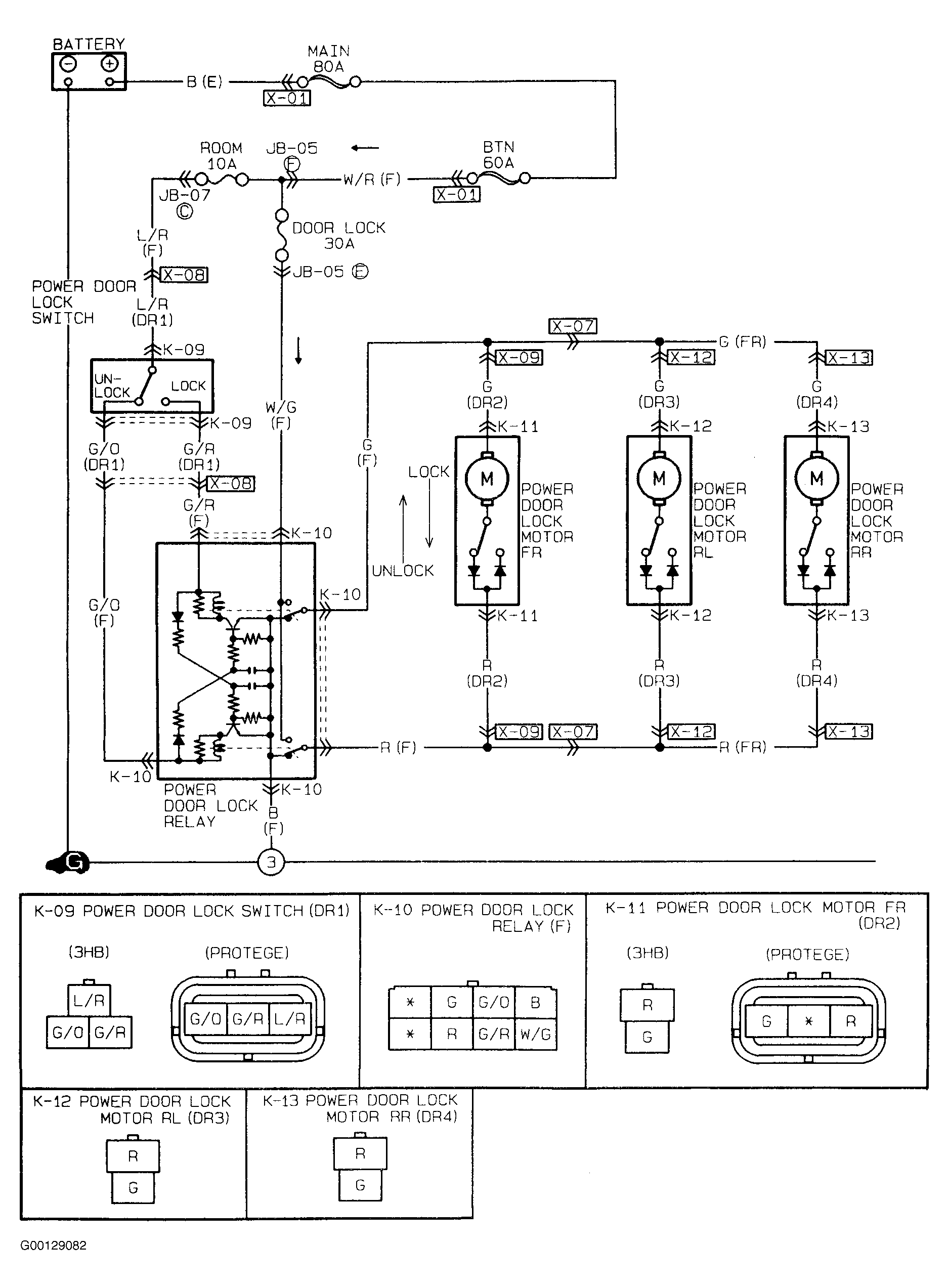

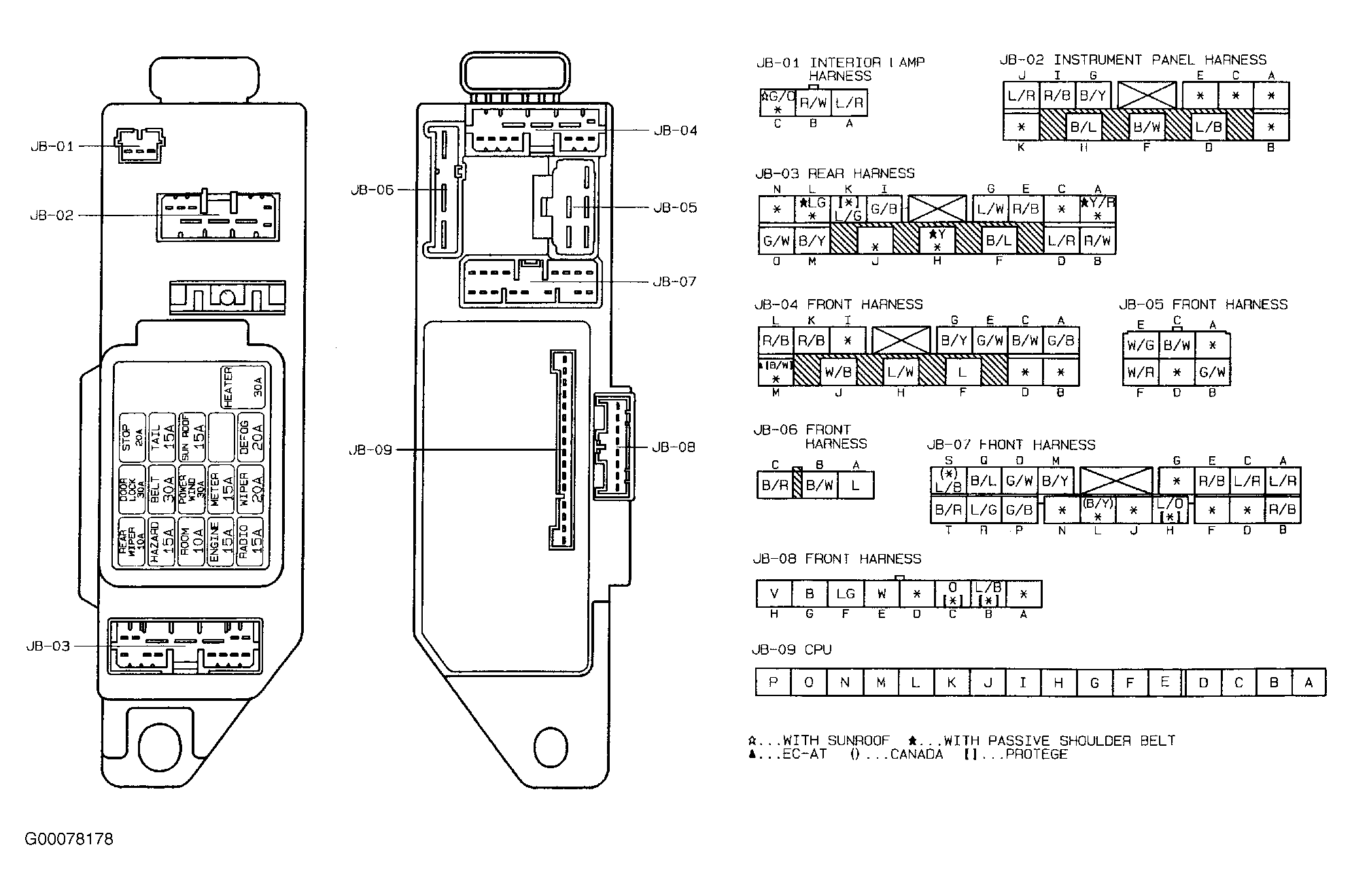

For connector identification, see
Figure
and
Figure
.
