Control Switch

The control switch is located on the control stalk or steering wheel. SeeFig 1 -6. The main switch must be in ON position for the control switch to function. When SET is pressed and then released, desired speed is set in the memory of the control unit. To accelerate from a set cruising speed, turn control switch to ACCEL position or depress ACCEL button. When switch is released, the new higher speed will be set in the memory of the control unit.

When COAST switch function is activated, speed will be reduced. When switch is released, new lower speed will be set. If cruise control is overridden by means other than main switch, original speed can be resumed by activating RESUME function.

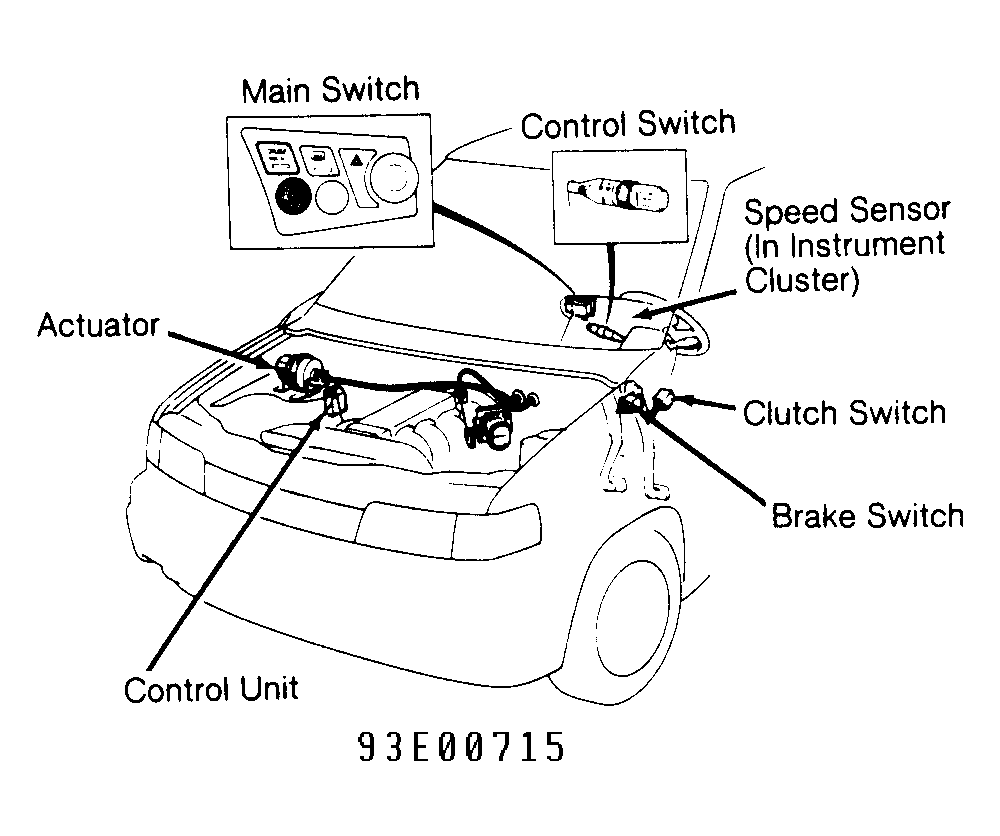

Fig 1: Locating Cruise Control Components (B2200 & B2600i)

Courtesy of MAZDA MOTORS CORP.

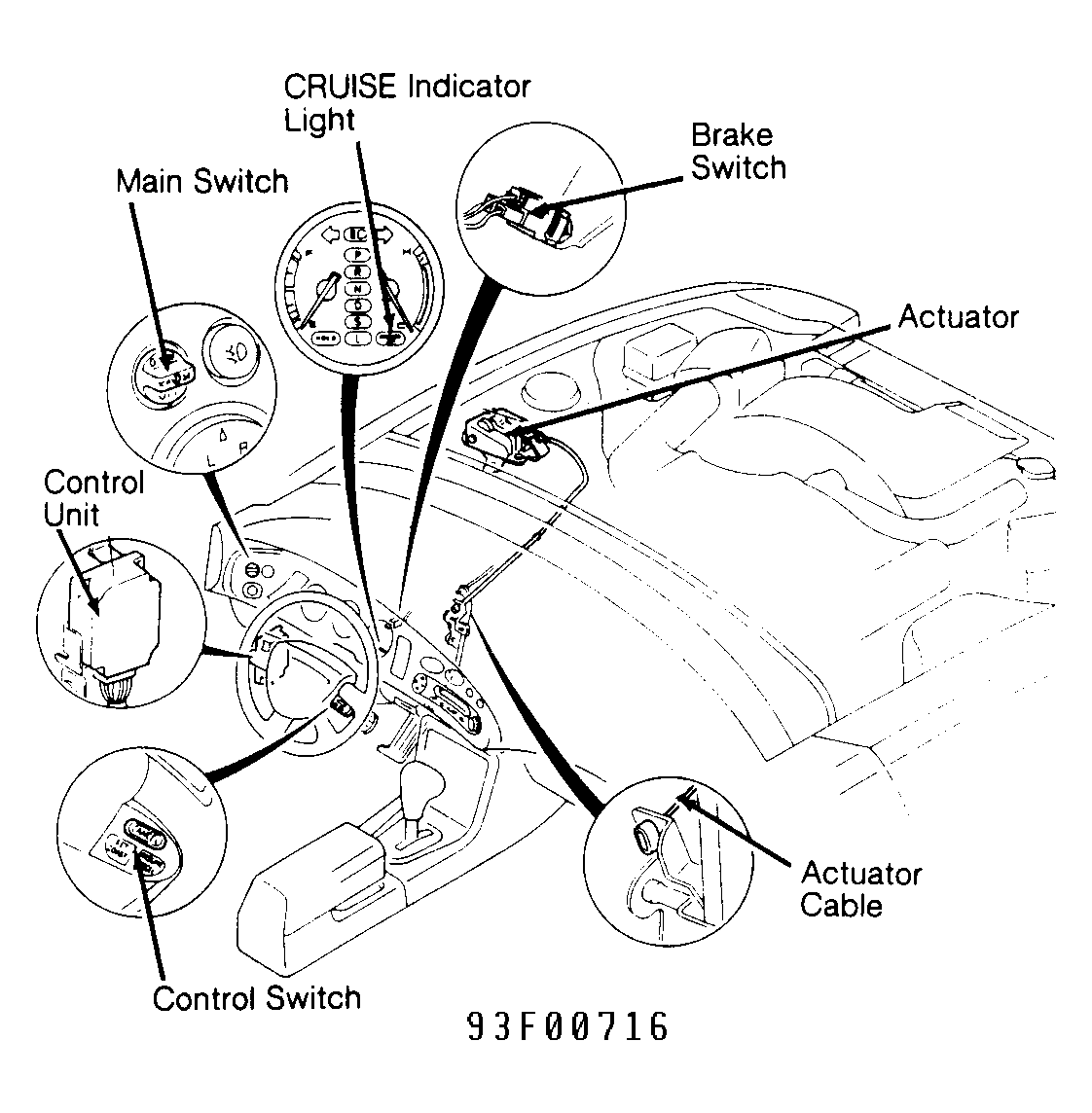

Fig 2: Locating Cruise Control Components (Miata)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Locating Cruise Control Components (MPV)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Locating Cruise Control Components (MX-6 & 626)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Locating Cruise Control Components (Protege & 323)

Courtesy of MAZDA MOTORS CORP.

Fig 6: Locating Cruise Control Components (1992 929 Shown; 1991 Similar)

Courtesy of MAZDA MOTORS CORP.
