Intake Air Temperature Sensor (Dynamic Chamber)

Disconnect intake air temperature sensor connector. Measure resistance of sensor using appropriate INTAKE AIR TEMPERATURE SENSOR RESISTANCE  table. SeeFig 1 or Fig 2 .

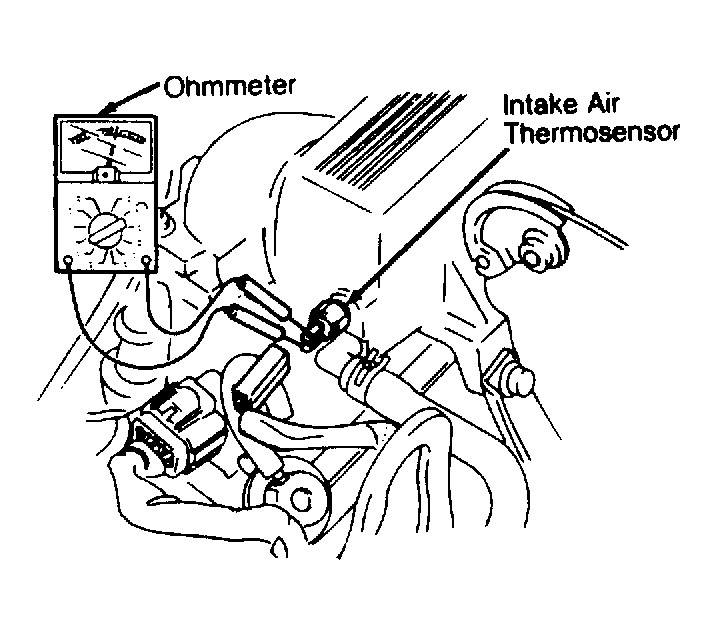

Fig 1: Testing Intake Air Temperature Sensor (MPV 2.6L)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Testing Intake Air Temperature Sensor (MPV 3.0L)

Courtesy of MAZDA MOTORS CORP.
