Atmospheric Pressure Sensor (MPV 2.6L) Test

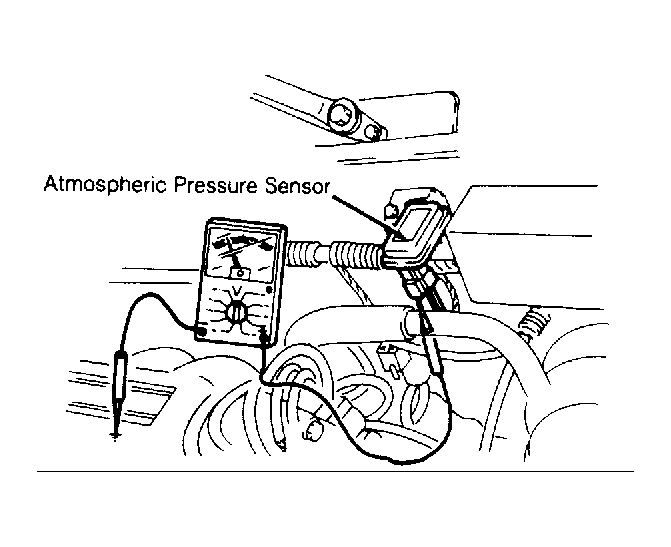

Connect voltmeter to Blue sensor wire terminal. Turn ignition on and check voltage. Depending on altitude, voltage should be 3.5-4.5 volts at sea level and 2.5-3.5 volts at 6500 feet. If voltage at Blue sensor wire terminal is incorrect, replace atmospheric pressure sensor. See Fig 1 .
