Code 29: SOHC EGR Vent Solenoid Valve

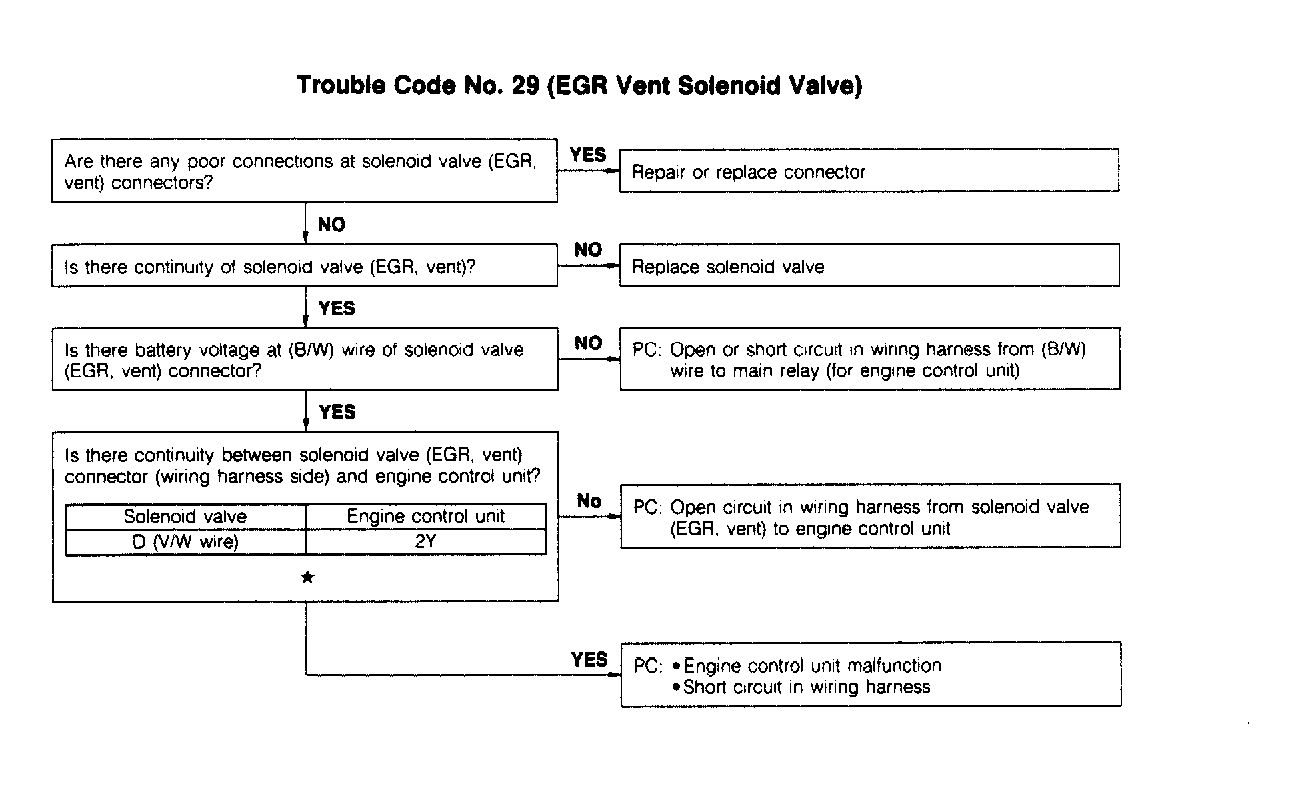

Fig 1: Code 29: EGR Vent Solenoid Valve Flow Chart

G90C21537

Courtesy of MAZDA MOTORS CORP.
