Fuse Panel & Fuse Block Identification (1983-85): Notes

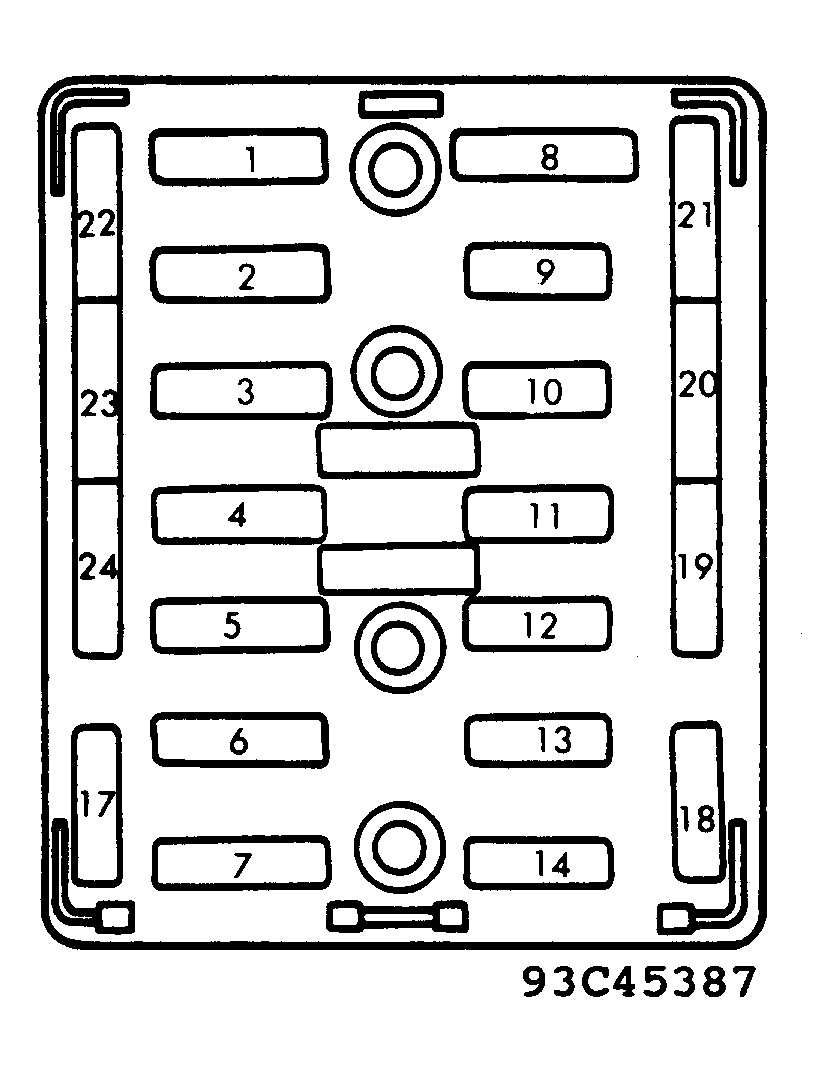

Fig 1: Fuse Panel Identification (1983-85)
G93C45387Courtesy of MAZDA MOTOR OF AMERICA INC.

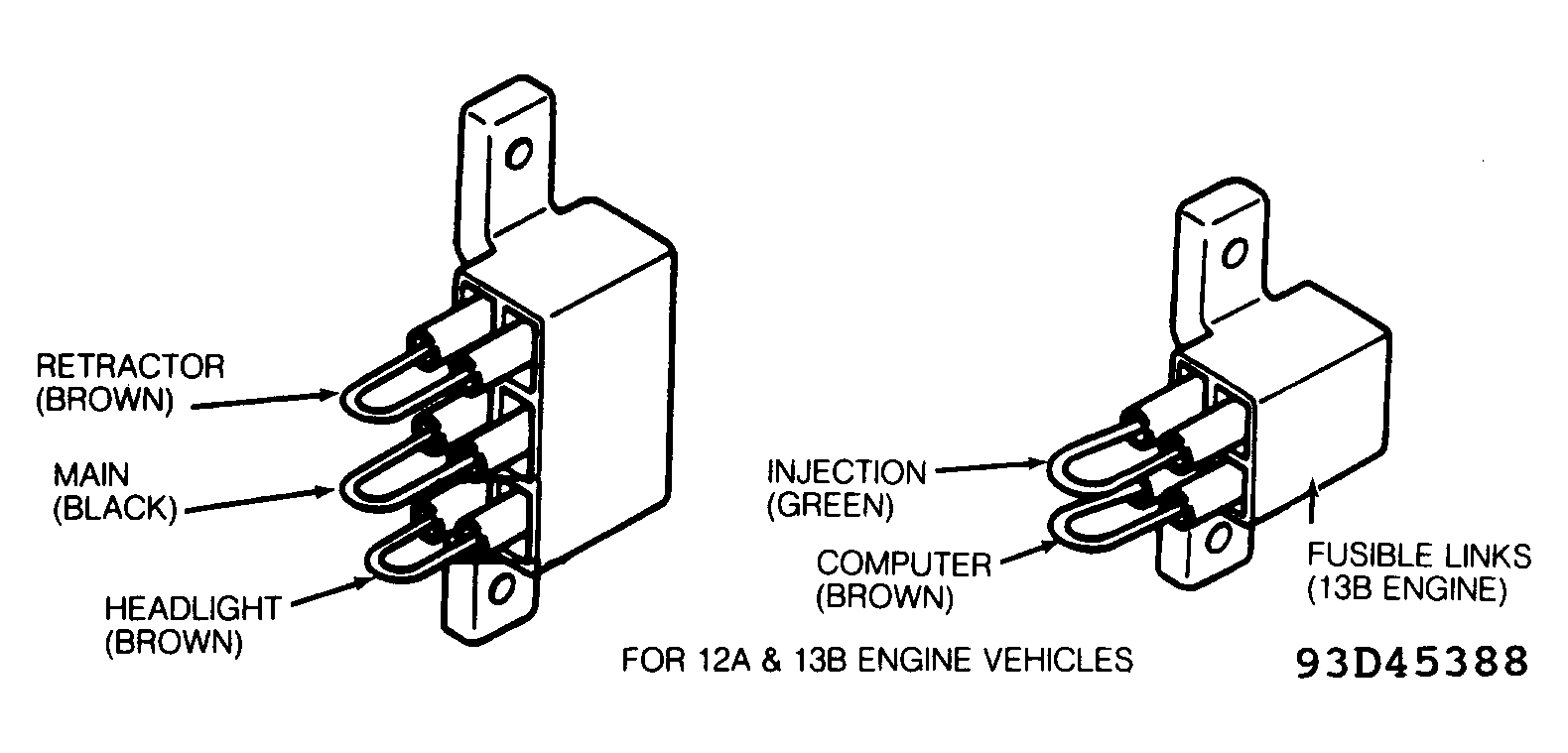

Fig 2: Fuse Block Identification (1983-85)
G93D45388Courtesy of MAZDA MOTOR OF AMERICA INC.
