Choke Magnet

Disconnect electrical connector from choke switch. Using an ohmmeter, check continuity between terminals. Continuity should exist between terminals No. 6 and No. 8. See Fig 1.

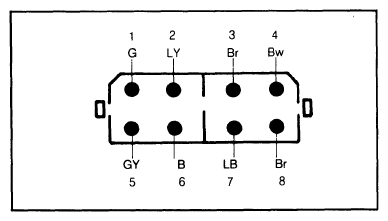

Fig 1: Choke Switch Terminal Numbering

Courtesy of MAZDA MOTORS CORP.
