Sub-System Wiring Diagrams - Windshield Wiper Systems: Wiring Diagram

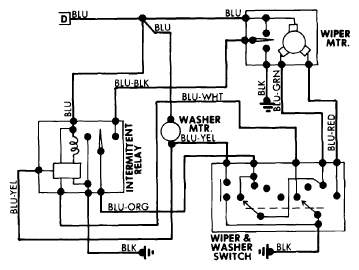

Fig 1: Windshield Wiper System Wiring Diagram (Mazda Cosmo and RX4)

G09303654

Courtesy of MAZDA MOTORS CORP.
