Image Processing Module A (IPMA): Installation
WARNING: This page is about a different car, the 2024 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

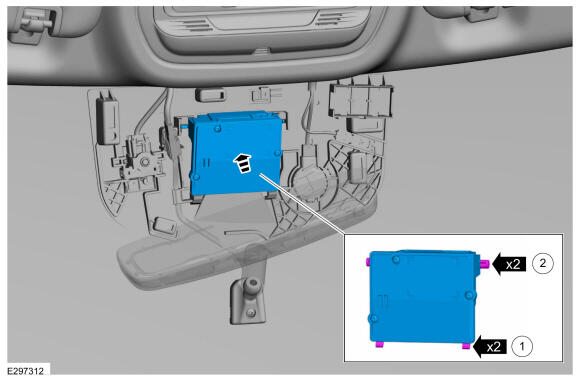

- Install the IPMA.
- Install the lower tabs.
- Install the upper tabs.
- To install, reverse the removal procedure.
-
- If a new IPMA has been installed, using a diagnostic scan tool, complete the PMI process for the IPMA following the on-screen instructions.
- If a new IPMA has been installed, carry out the camera alignment using a scan tool.
