Pedestrian Alert Control Module (PACM): Removal

WARNING: This page is about a different car, the 2024 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

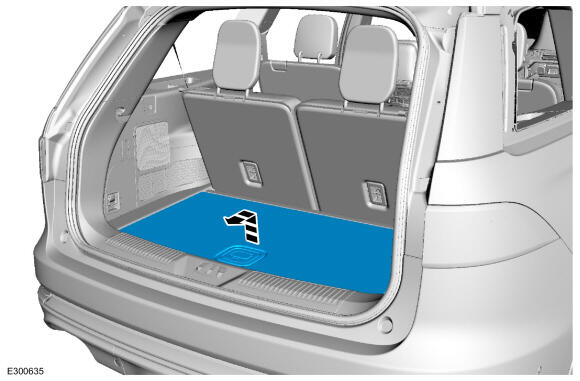

  1. Remove the luggage compartment floor cover.
    GFD877286Courtesy of FORD MOTOR COMPANY

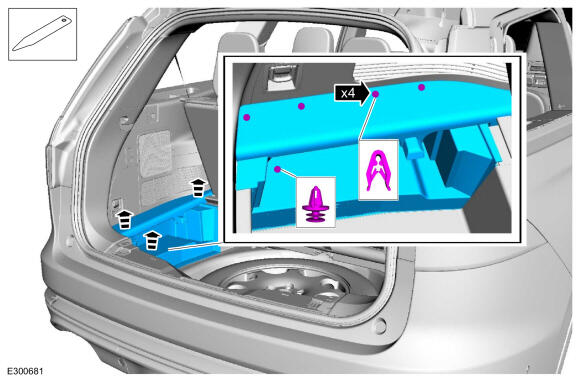

  2. Release the clips and the luggage compartment side trim panel. Use the General Equipment: Interior Trim Remover
    GFD877287Courtesy of FORD MOTOR COMPANY

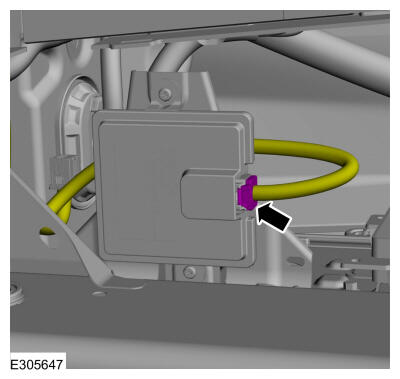

  3. Disconnect the electrical connectors and position the wiring harness aside.
    GFD880255Courtesy of FORD MOTOR COMPANY

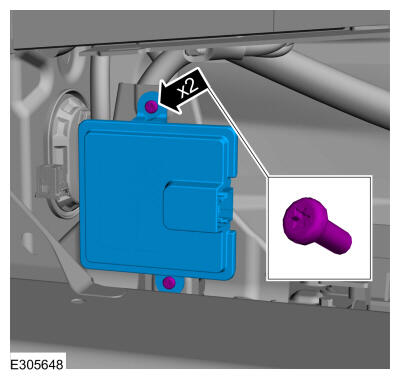

  4. Remove the screws and the PACM.
GFD880256Courtesy of FORD MOTOR COMPANY
