Third Row Seat Backrest Frame: Installation

  1. To install, reverse the removal procedure.

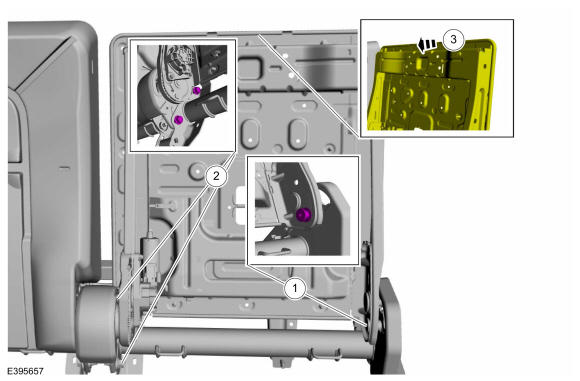

    1. Loosely install the third row seat backrest frame outboard bolt until the bolt shoulder completely seats into the outboard bolt bushing.
    2. Loosely install the third row seat backrest frame inboard bolts until the bolts shoulders completely seat into the third row seat backrest frame.
    3. Align the third row seat backrest frame by positioning it to the furthest forward position before torquing the inboard and outboard bolts.
    GFD800145Courtesy of FORD MOTOR COMPANY
  3. Using the diagnostic scan tool, CARRY OUT the SCMJ Seat Position Learn routine on theSCMJfollowing the on-screen instructions.
