Home >> Lincoln >> 2021 >> Navigator Base, RWD >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams Component Testing >> Component Testing >> Relay - Micro ISO

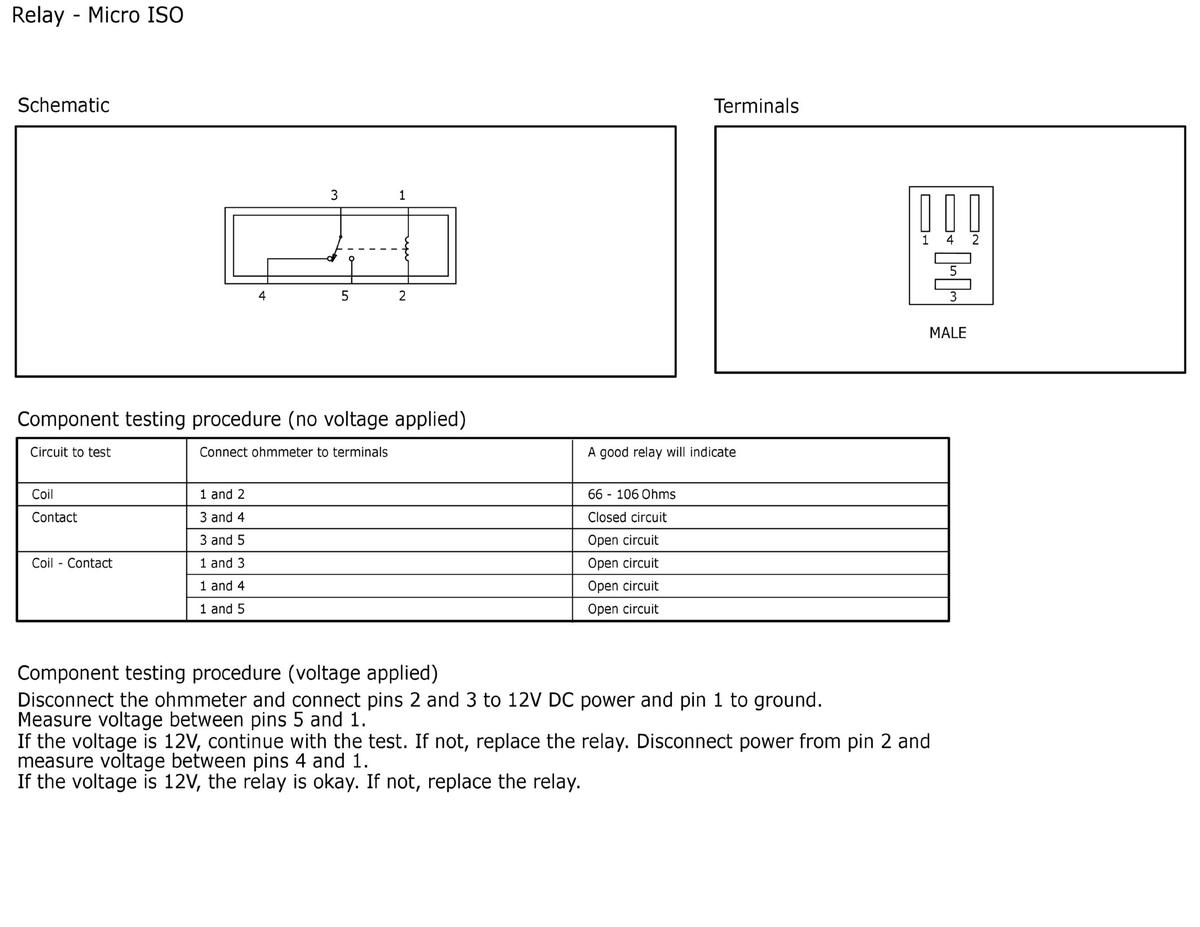

Relay - Micro ISO

GFDWR115933

Courtesy of FORD MOTOR COMPANY
