Quick Release Coupling

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 1
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

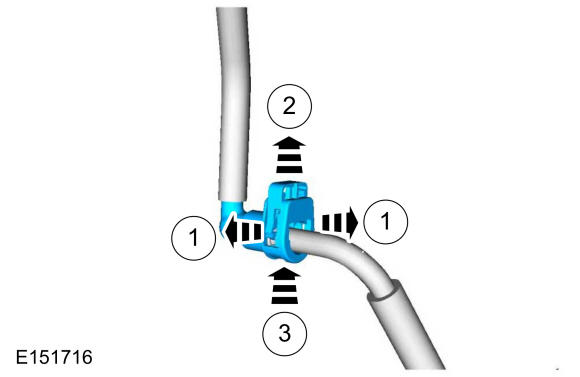

  3. GFD544362Courtesy of FORD MOTOR COMPANY
  4. GFD544363Courtesy of FORD MOTOR COMPANY

Connect

  1. Push the quick release coupling onto the tube.
    GFD544364Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

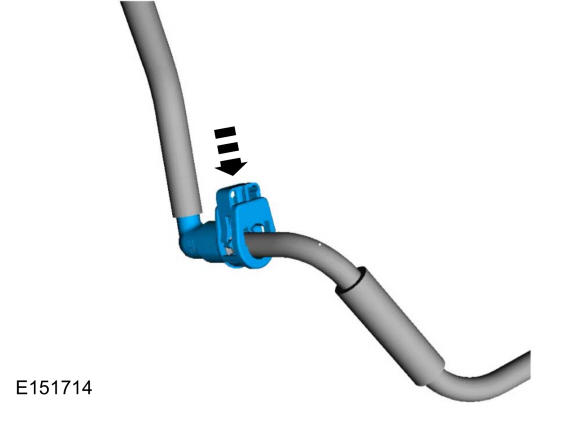

    GFD544365Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 2
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .
  3. GFD544366Courtesy of FORD MOTOR COMPANY
  4. GFD544367Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD544368Courtesy of FORD MOTOR COMPANY
  2. GFD544369Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 3
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .
  3. GFD544370Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD544371Courtesy of FORD MOTOR COMPANY
  2. GFD544372Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 4
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

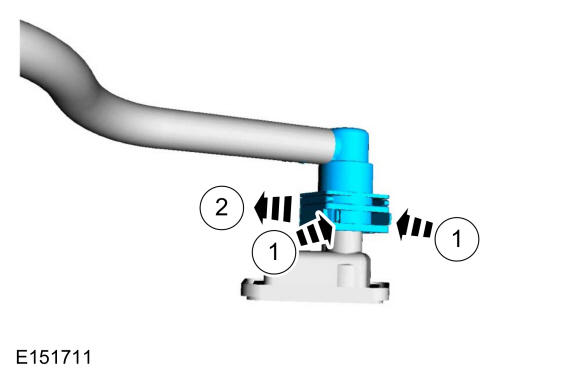

  3. GFD544373Courtesy of FORD MOTOR COMPANY

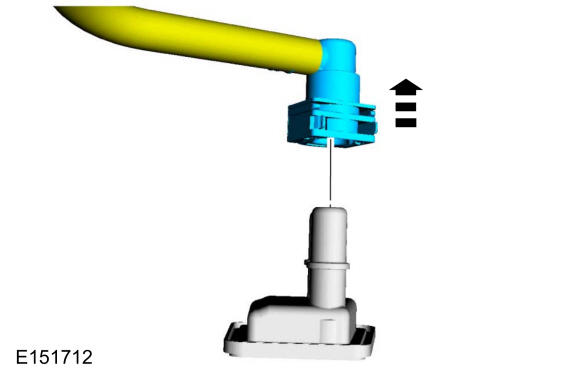

  4. GFD544374Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD544375Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 5
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .
  3. GFD544376Courtesy of FORD MOTOR COMPANY
  4. GFD544377Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD544378Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 6
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .
  3. Press the tabs of the rear retainer clip and pull it to the outward position.
    GFD544379Courtesy of FORD MOTOR COMPANY
  4. GFD544380Courtesy of FORD MOTOR COMPANY

Connect

  1. Pull on the quick release coupling to make sure it is securely fastened.
    GFD544381Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 7
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .
  3. GFD544382Courtesy of FORD MOTOR COMPANY
  4. GFD544383Courtesy of FORD MOTOR COMPANY

Connect

  1. Pull on the quick connect coupling to make sure it is securely fastened.
    GFD544384Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 8
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .
  3. GFD544376Courtesy of FORD MOTOR COMPANY
  4. GFD544377Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD544378Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 9
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

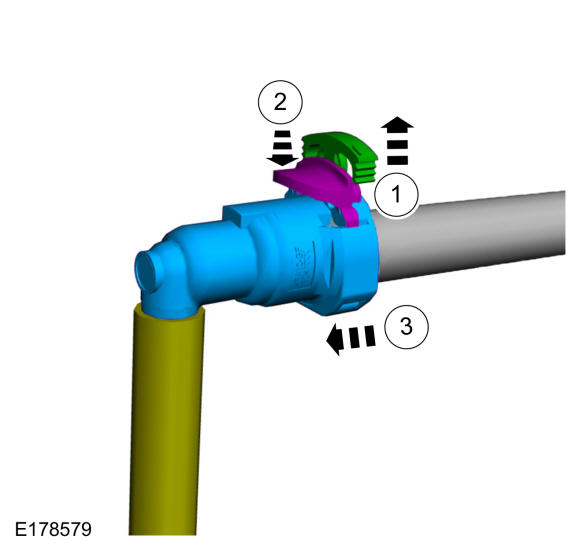

    1. Release the secondary locking tab.
    2. Depress the primary locking tab.
    3. Separate the quick release coupling from the tube.
    GFD544385Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the quick release coupling onto the tube.
    2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Lock the secondary locking tab.

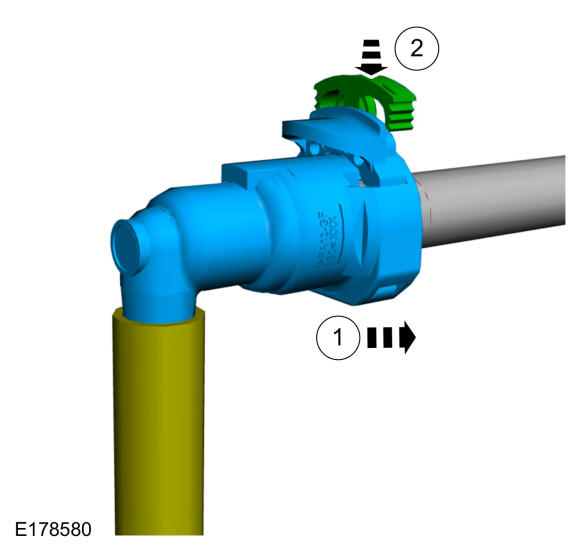

    GFD544386Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 10
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .
    1. Push on the locking tab.
    2. Lift the clip.

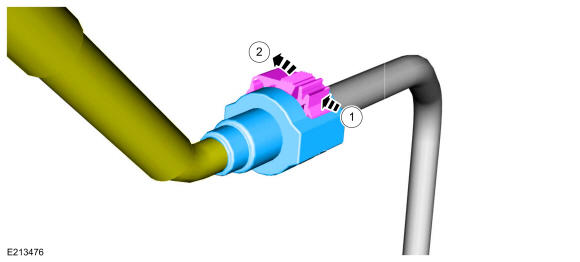

    GFD544387Courtesy of FORD MOTOR COMPANY

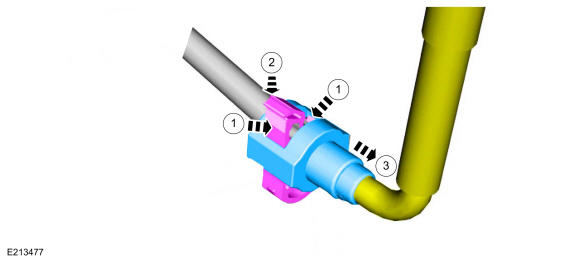

    1. Depress the tabs inward.
    2. Push the clip downward.
    3. Separate the quick release coupling from the fuel line.
GFD544388Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the quick release coupling onto the tube.
    2. Push the clip down into the quick release coupling.
    3. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

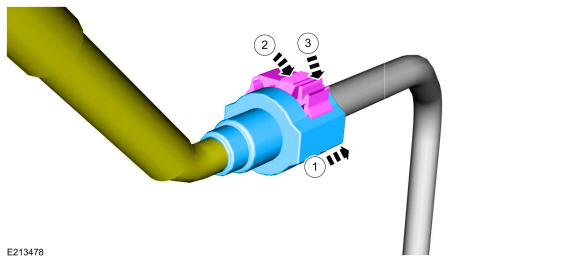

    GFD544389Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 11
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

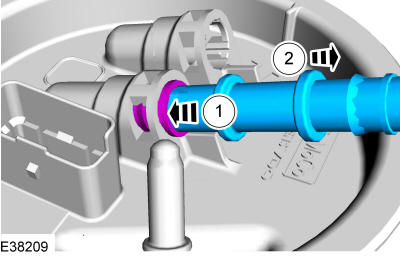

  3. GFD544390Courtesy of FORD MOTOR COMPANY

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD544390Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 12
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .
  3. GFD544391Courtesy of FORD MOTOR COMPANY
  4. GFD544392Courtesy of FORD MOTOR COMPANY

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD544393Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 13
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .
  3. GFD544394Courtesy of FORD MOTOR COMPANY

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

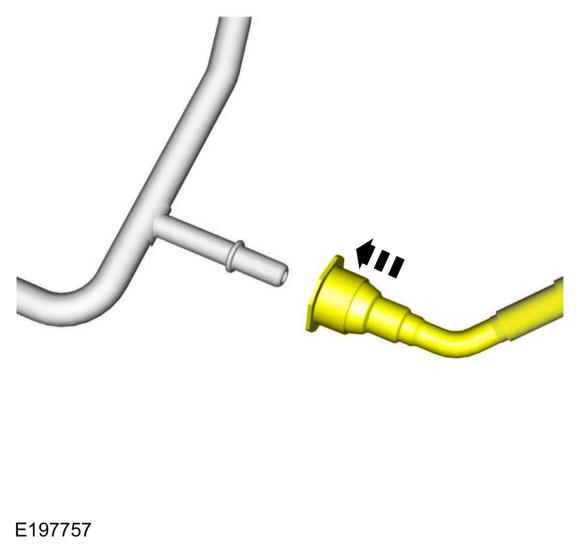

    GFD544395Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 14
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .
  3. GFD544396Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD544397Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 15
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Press both retaining tabs inward and remove quick release coupling from fuel tube.
    GFD544398Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Inspect and clean both quick release coupling ends.

    Install the quick release coupling onto the tube until it is fully seated.

    GFD544399Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 16
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

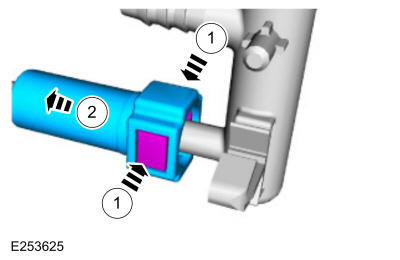

  3. GFD544400Courtesy of FORD MOTOR COMPANY

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD544400Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 17
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .
  3. GFD544401Courtesy of FORD MOTOR COMPANY

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

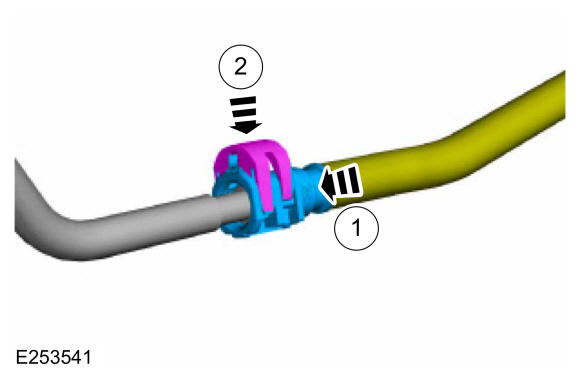

    GFD544402Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 18
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

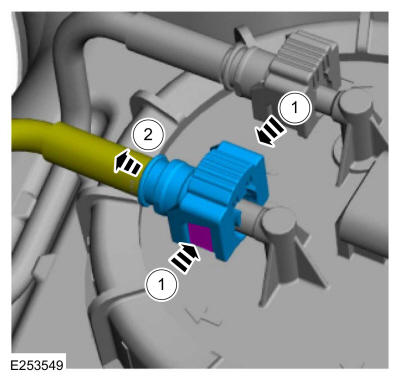

  3. GFD544403Courtesy of FORD MOTOR COMPANY

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

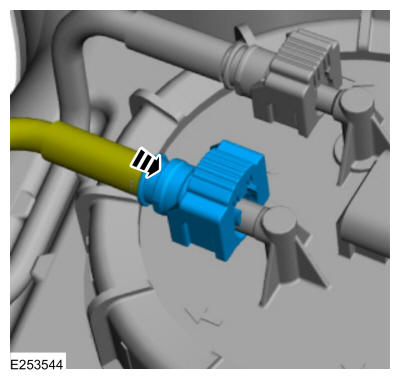

    GFD544404Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 19
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

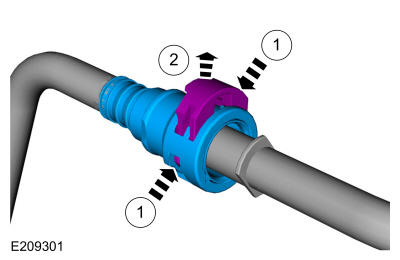

  3. GFD544405Courtesy of FORD MOTOR COMPANY

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

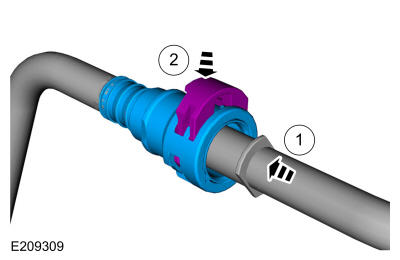

    GFD544406Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 20
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

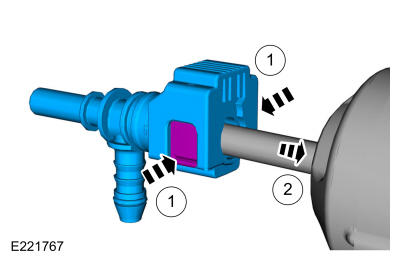

  3. GFD544407Courtesy of FORD MOTOR COMPANY

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD544408Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 21
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

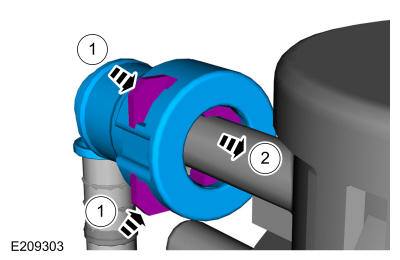

  3. GFD544409Courtesy of FORD MOTOR COMPANY

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

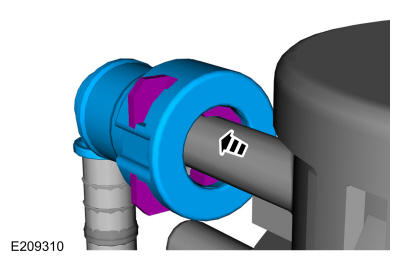

    GFD544410Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 22
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

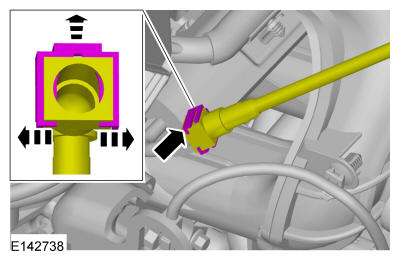

  3. GFD544411Courtesy of FORD MOTOR COMPANY

Connect

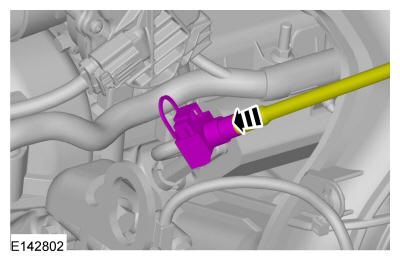

  1. GFD544412Courtesy of FORD MOTOR COMPANY
  2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

    Snap the locking tab into place.

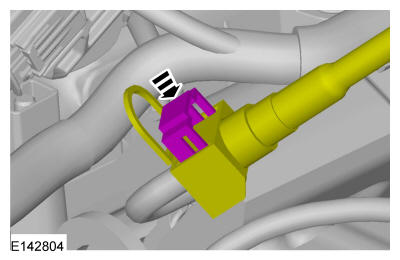

    GFD544413Courtesy of FORD MOTOR COMPANY
  3. NOTE: Make sure that all fuel connections are checked for leaks.
    NOTE: This step is only necessary if a new component is installed.
    NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

    Snap the locking tab into place.

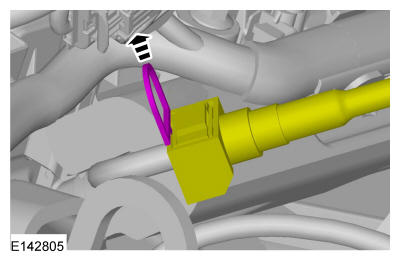

    GFD544414Courtesy of FORD MOTOR COMPANY
  4. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 23
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

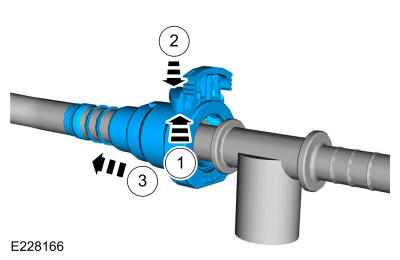

  3. GFD544415Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD544416Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 24
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .
  3. GFD544417Courtesy of FORD MOTOR COMPANY

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD544418Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 25
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

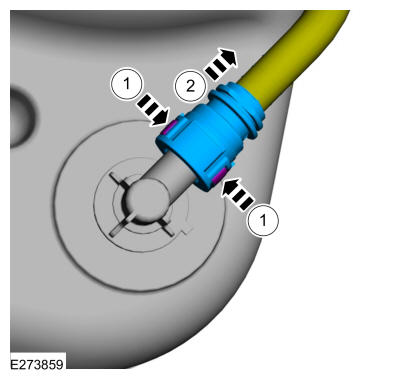

    1. Depress the clip into the quick release coupling.
    2. Separate the quick release coupling from the tube.
GFD544419Courtesy of FORD MOTOR COMPANY

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

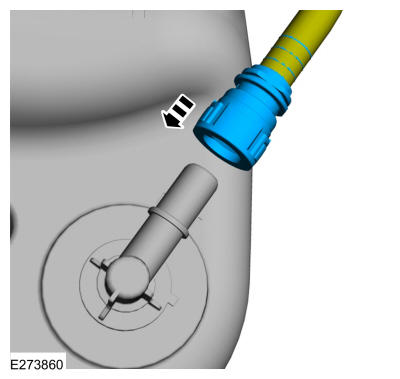

    GFD544420Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 26
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

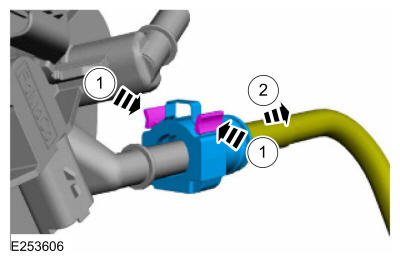

    1. Remove the quick release coupling from the tube.
GFD544421Courtesy of FORD MOTOR COMPANY

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD544422Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 27
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release 3.5L EcoBoost  .
  2. Disconnect the battery ground cable. Refer to: Battery Cables .

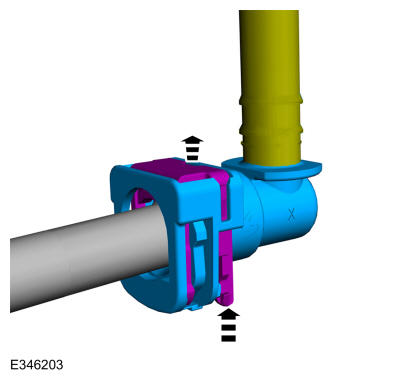

  3. GFD544423Courtesy of FORD MOTOR COMPANY

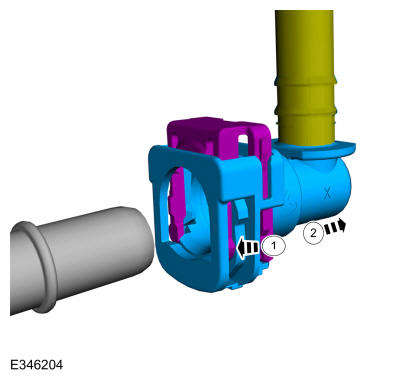

  4. Remove the quick release coupling from the tube.
GFD544424Courtesy of FORD MOTOR COMPANY

Connect

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

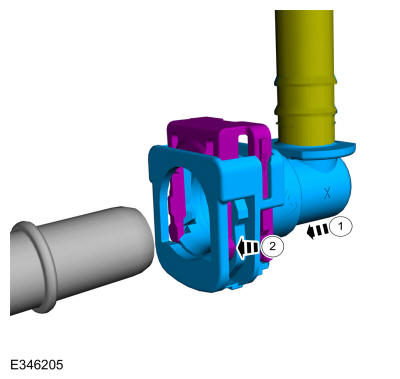

    GFD544425Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: Battery Cables .
scientia non olet · About Mike's Workshop Manuals
