High-Pressure Fuel Pump: Installation

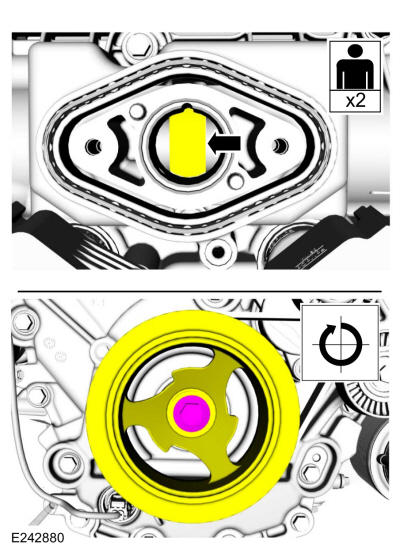

  1. NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.
    NOTE: The drive lobe for the high-pressure fuel pump must be at BDC (bottom dead center) for the high-pressure fuel pump installation.

    With the help of an assistant, using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC.

    GFD543173Courtesy of FORD MOTOR COMPANY

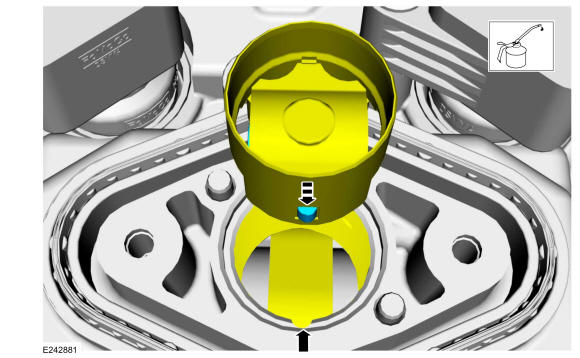

  2. Apply clean engine oil to the high-pressure fuel pump mounting pedestal bore, the drive lobe and the roller tappet. Install the high-pressure fuel pump roller tappet. Refer to: Specifications 3.5L EcoBoost .
    GFD543311Courtesy of FORD MOTOR COMPANY

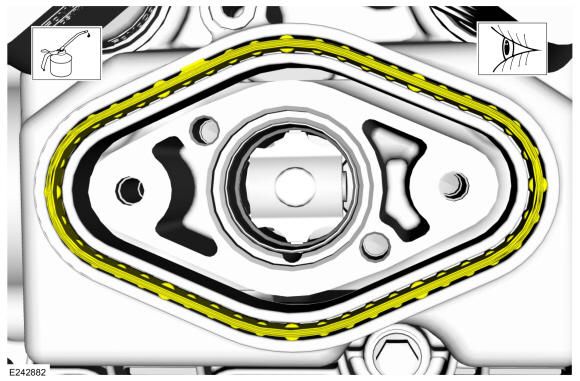

  3. Inspect the high-pressure fuel pump mounting plate seal and replace as needed. Lubricate the mounting plate seal with clean engine oil. Refer to: Specifications 3.5L EcoBoost .
    GFD543312Courtesy of FORD MOTOR COMPANY

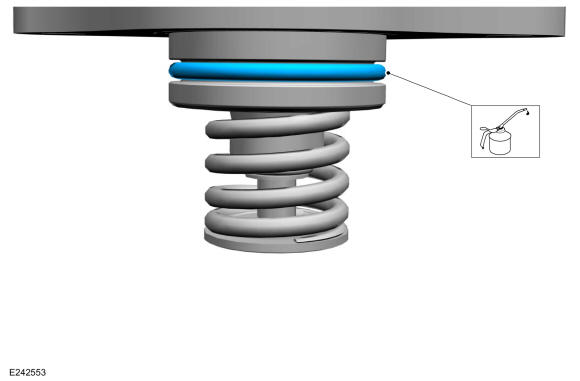

  4. Install a new high-pressure fuel pump O-ring seal. Lubricate the O-ring seal with clean engine oil. Refer to: Specifications 3.5L EcoBoost .
    GFD543313Courtesy of FORD MOTOR COMPANY

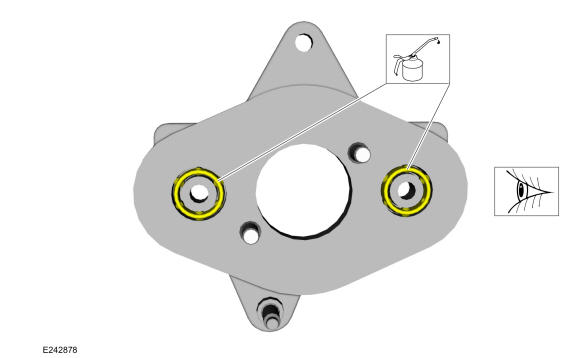

  5. Inspect the high-pressure fuel pump mounting plate O-ring seals and replace as needed. Lubricate the O-ring seals with clean engine oil. Refer to: Specifications 3.5L EcoBoost .
    GFD543314Courtesy of FORD MOTOR COMPANY

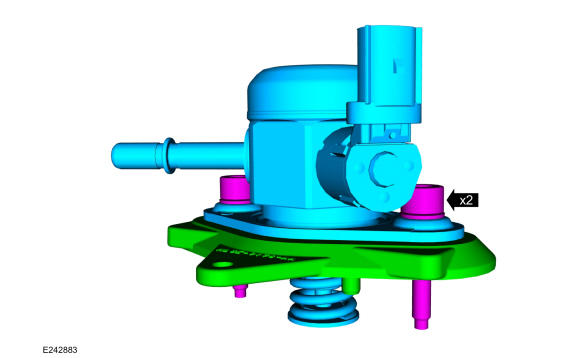

  6. NOTE: Make sure that new bolts are installed.

    Install the high-pressure fuel pump mounting plate on to the high-pressure fuel pump. Install the new high-pressure fuel pump bolts.

    GFD543315Courtesy of FORD MOTOR COMPANY

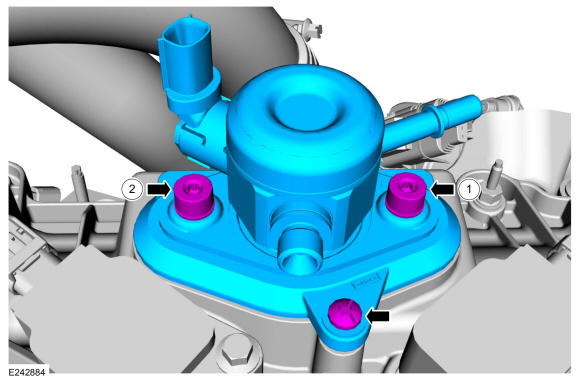

    1. Install the high-pressure fuel pump with the mounting plate and the bolts. Tighten the fuel high-pressure fuel pump bolts in the following 5 stages.

      Torque

      :Stage 1: Finger tighten all of the bolts: 0 lb.in (0 Nm)

      Stage 2: Tighten bolt 1: 1 turn(s)

      Stage 3: Tighten bolt 2: 1 turn(s)

      Stage 4: Repeat stages 2 and 3, until reaching: 89 lb.in (10 Nm)

      Stage 5: Tighten bolts 1 and 2, in sequence an additional: 45°

    2. Tighten the high-pressure fuel pump mounting plate bolt.

      Torque

      : 89 lb.in (10 Nm)

    GFD543316Courtesy of FORD MOTOR COMPANY

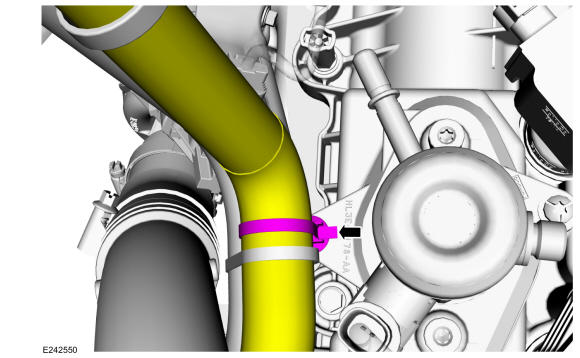

  7. Attach the hose retainer.
    GFD543306Courtesy of FORD MOTOR COMPANY
  8. NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in illustration.
    G00468730Courtesy of FORD MOTOR COMPANY

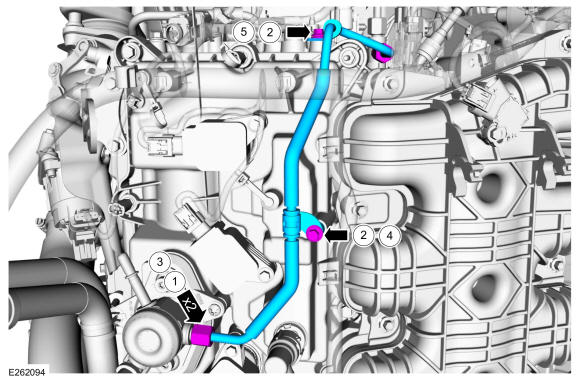

    NOTE: Make sure that a new high-pressure fuel pump to fuel rail high-pressure fuel tube is installed.

    1. Install the high-pressure fuel pump to fuel rail high-pressure fuel tube and tighten the flare nuts finger tight.
    2. Install the high-pressure fuel pump to fuel rail high-pressure fuel tube retaining bolts finger tight.
    3. NOTE: In stage 3, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 55 lb.ft (75 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

      Tighten the high-pressure fuel pump to fuel rail high-pressure fuel tube flare nuts.

      Torque

      :Stage 1: Tighten to: 62 lb.in (7 Nm)

      Stage 2: Tighten to: 89 lb.in (10 Nm)

      Stage 3: Tighten an additional: 40°

    4. Tighten the high-pressure fuel pump to fuel rail high-pressure fuel tube retaining bolt.

      Torque

      :Stage 1: Tighten to: 89 lb.in (10 Nm)

      Stage 2: Tighten an additional: 45°

    5. Tighten the high-pressure fuel pump to fuel rail high-pressure fuel tube retaining bolt.

      Torque

      :Stage 1: Tighten to: 89 lb.in (10 Nm)

      Stage 2: Tighten an additional: 20°

    GFD543317Courtesy of FORD MOTOR COMPANY

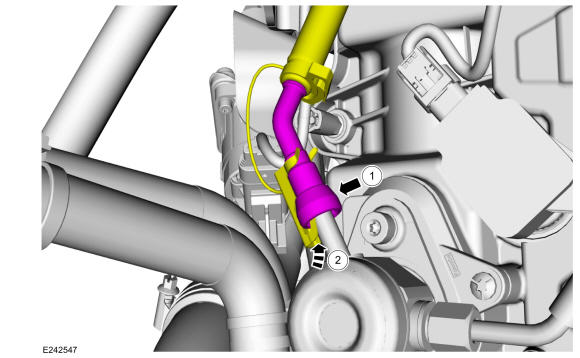

  9. NOTE: The spring lock coupling must be installed onto the fuel tube end along the centerline. The assembly is complete when the tube end bottoms out on the spring lock coupling with an audible click / snap feel. Correct assembly should be verified by pulling back on the spring lock coupling end.

    1. Connect the high-pressure fuel pump supply line, then connect the spring lock coupling. Refer to: Spring Lock Couplings 3.5L EcoBoost .
    2. Install the secondary latch.

    GFD543318Courtesy of FORD MOTOR COMPANY

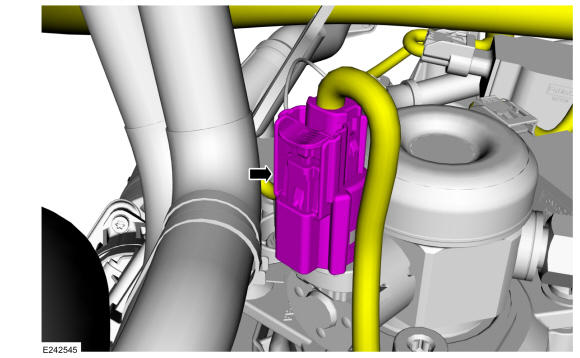

  10. Connect the high-pressure fuel pump electrical connector.
    GFD543303Courtesy of FORD MOTOR COMPANY
  11. Connect the negative battery cable. Refer to: Battery Disconnect and Connect .
  12. Pressurize the fuel system. Refer to: Fuel System Pressure Release 3.5L EcoBoost .

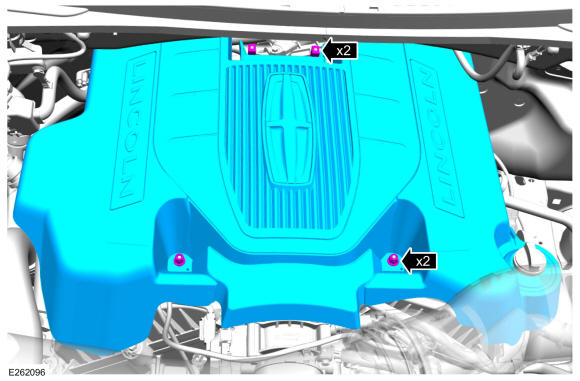

  13. Install the engine appearance cover into the rear retainers, then install and tighten the engine appearance cover retainers.

    Torque

    : 97 lb.in (11 Nm)

GFD543302Courtesy of FORD MOTOR COMPANY
