Front Bumper Bracket: Installation
- Refer to: JOINING TECHNIQUES .
- Loosely clamp the replacement bracket in a preliminary position. Perform measurements to verify proper placement of the new front bumper bracket, then clamp firmly into position.

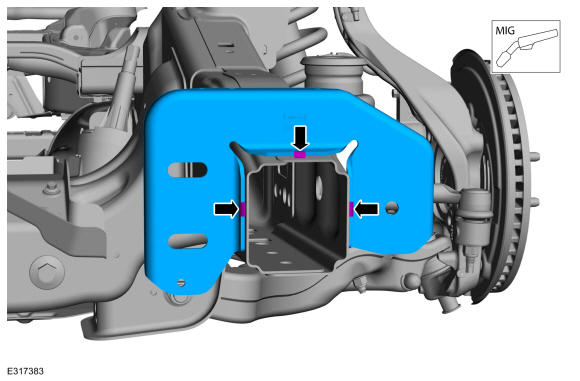

- With all measurements verified and the new front bumper bracket in proper position, tack-weld the new front bumper bracket in place to the frame horn. Use the General Equipment: MIG/MAG Welding Equipment, Use the General Equipment: Locking Pliers

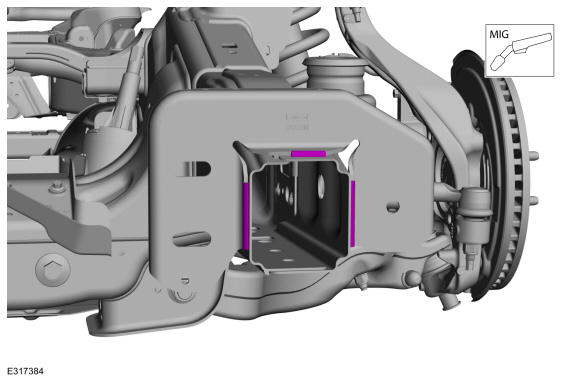

- Re-check measurements, then solid weld the front bumper bracket to the frame horn. Use the General Equipment: MIG/MAG Welding Equipment
- Metal finish the repair area using typical metal finishing techniques.
- Restore corrosion protection. Refer to: CORROSION PREVENTION .
- Install the wheel and tire. Refer to: Wheel and Tire .
- Install the front bumper. Refer to Front Bumper .
